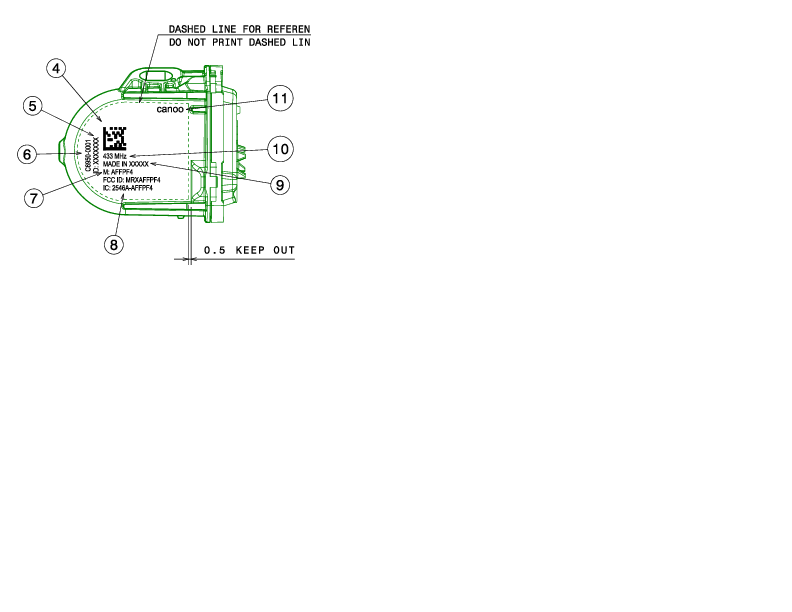

AFFPF4 TPMS Transmitter Label Diagram - FCC ID MRXAFFPF4

FCC ID MRXAFFPF4

Label and location

TPMS Transmitter

by Schrader Electronics

Document preview loads when visible.

Document Details

FCC IDMRXAFFPF4
Document ID4735374
Document TypeID Label/Location Info
DescriptionLabel and location
ApplicantSchrader Electronics
Equipment ClassTPMS Transmitter
Product CodeAFFPF4
Application IDmbZlfJi0to6NjUmw2OVj3Q==
Application PurposeOriginal Equipment
Application Date2020-05-27
Frequency Range433.92 MHz
FRN0006293260
Test FirmAHD (Amber Helm Development, L.C.)
Certified ByJoseph Brunett
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2020-05-22
Available2020-05-27
Created2020-05-13
Modified2020-05-13
Pages1
File TypeAdobe Acrobat PDF
File Size158605
File SHA-25675c48e81e1e0e28a3ec35ed2cce69d4fef1d8a5cc449714f92eead204a22ee59
PDF Metadata ProducerNitro Pro (11. 0. 3. 173)
FCC.gov SourcesFCC.gov 4735374

Related FCC Exhibits

DocumentTypeAvailableFile
User ManualUsers Manual2020-05-27PDF 160.9 KB
Internal PhotosInternal Photos2020-05-27PDF 197.6 KB
External PhotosExternal Photos2020-05-27PDF 134.2 KB
Label and locationID Label/Location Info2020-05-27PDF 154.9 KB
Test Setup PhotosTest Setup Photos2020-05-27PDF 128.1 KB
Test ReportTest Report2020-05-27PDF 2.9 MB
Agent AuthorizationCover Letter(s)2020-05-27PDF 236.3 KB
Confidentiality LetterCover Letter(s)2020-05-27PDF 194 KB
Block Diagram Metadata onlyBlock DiagramPDF 197.1 KB
Schematics Metadata onlySchematicsPDF 191.1 KB
Operational Description Metadata onlyOperational DescriptionPDF 218.9 KB
BOM Metadata onlyParts List/Tune Up InfoPDF 707.4 KB
