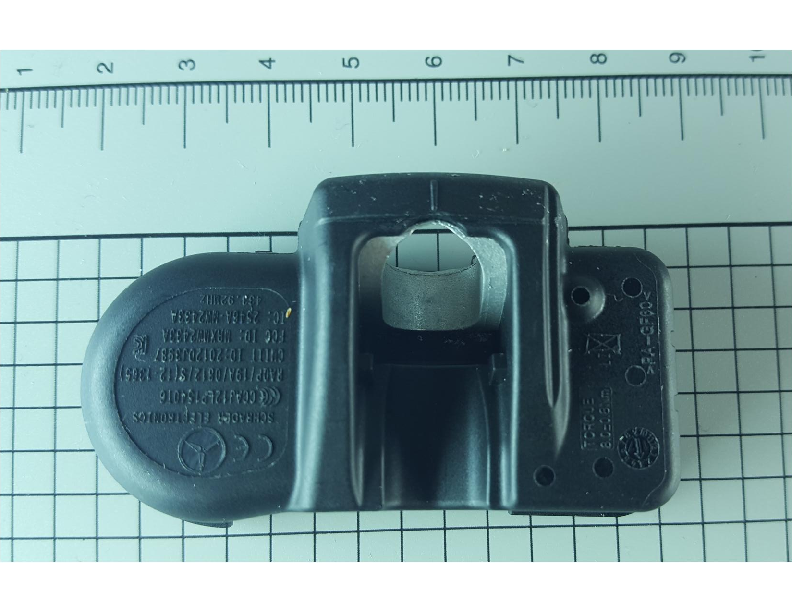

MW2433AT Tire Sensor System External Photos - FCC ID MRXMW2433AT

FCC ID MRXMW2433AT

External Photos

Tire Sensor System

by Schrader Electronics

Document preview loads when visible.

Document Details

FCC IDMRXMW2433AT
Document ID3557479
Document TypeExternal Photos
DescriptionExternal Photos
ApplicantSchrader Electronics
Equipment ClassTire Sensor System
Product CodeMW2433AT
Application IDrKzG7IFTj//EVTh24CImtg==
Application PurposeOriginal Equipment
Application Date2017-09-13
Frequency Range433.92 MHz
FRN0006293260
Test FirmAHD (Amber Helm Development, L.C.)
Certified ByJoseph D. Burnett
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2017-09-12
Available2017-09-13
Created2017-08-31
Modified2017-08-31
Pages2
File TypeAdobe Acrobat PDF
File Size293129
File SHA-256ef6d152ea3ecbc0eee54a59019097e07e7693b1b9ad6f55810aeb344a5fa4bdb
PDF Metadata ProducerNitro Pro (11. 0. 2. 110)
FCC.gov SourcesFCC.gov 3557479
