FCC ID MSQ-USBR700
Dual band AC1900 USB 3.0 Wi-Fi Adapter
by ASUSTeK Computer Inc
Grantee Code: MSQ Product Code: USBR700
Latest application date: 2019-12-22
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2019-12-22 |
| 5180-5240 MHz | Original Equipment | 2016-05-30 |
| 2412-2462 MHz | Original Equipment | 2016-05-30 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-05-30 | PDF 1.6 MB |

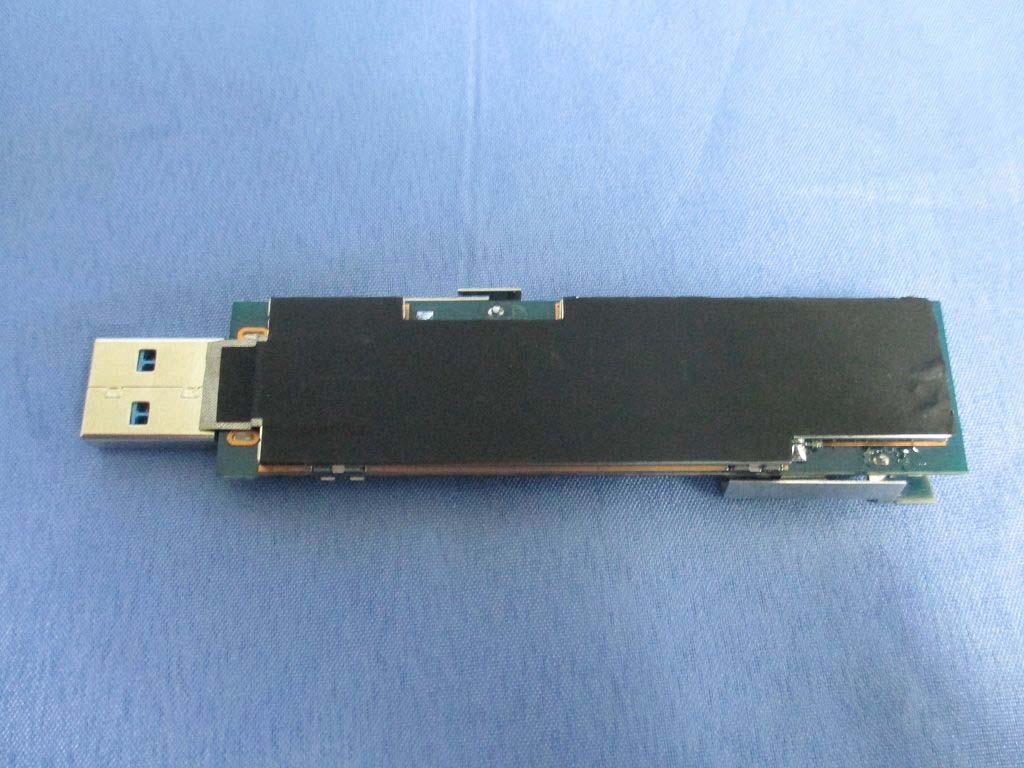

| Internal Photos | Internal Photos | 2019-12-22 | PDF 920.6 KB |
| Internal photo | Internal Photos | 2016-05-30 | PDF 1.1 MB |
| Internal photo_SAR | Internal Photos | 2016-05-30 | PDF 2.1 MB |

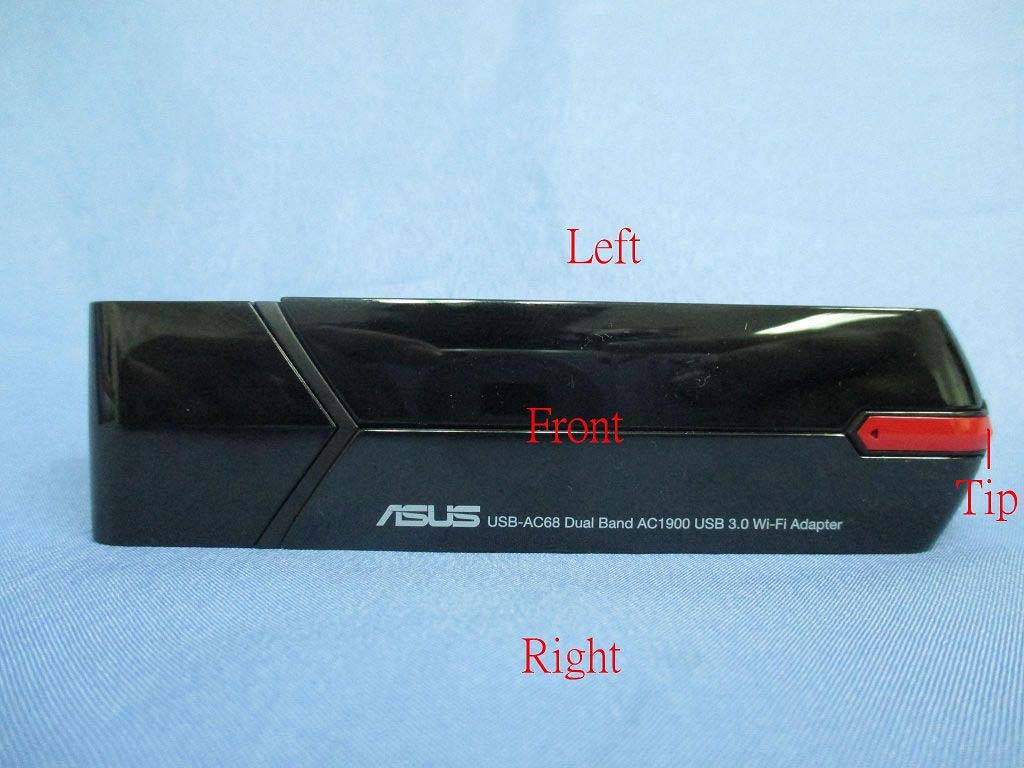

| External Photos | External Photos | 2019-12-22 | PDF 432.1 KB |
| External photo | External Photos | 2016-05-30 | PDF 97.1 KB |
| External photo_SAR | External Photos | 2016-05-30 | PDF 1.1 MB |
| ID Label | ID Label/Location Info | 2016-05-30 | PDF 341.6 KB |
| Label location info | ID Label/Location Info | 2016-05-30 | PDF 56.9 KB |
| Test Setup Photos | Test Setup Photos | 2019-12-22 | PDF 323.8 KB |
| Test setup photo | Test Setup Photos | 2016-05-30 | PDF 236.1 KB |
| Test setup photo_SAR | Test Setup Photos | 2016-05-30 | PDF 534.3 KB |
| Test Report-1 | Test Report | 2019-12-22 | PDF 5.1 MB |
| Test Report-2 | Test Report | 2019-12-22 | PDF 2.4 MB |
| Test Report_DTS-1 | Test Report | 2016-05-30 | PDF 4 MB |
| Test Report_DTS-2 | Test Report | 2016-05-30 | PDF 5.5 MB |
| Test Report_SAR | RF Exposure Info | 2016-05-30 | PDF 5.7 MB |
| Test report_NII Part 1 | Test Report | 2016-05-30 | PDF 6 MB |
| Test report_NII Part 2 | Test Report | 2016-05-30 | PDF 3.5 MB |
| Test report_SAR | RF Exposure Info | 2016-05-30 | PDF 5.7 MB |
| DoC Attestation Letter | Cover Letter(s) | 2016-05-30 | PDF 275.3 KB |
| Class II permissive change letter | Cover Letter(s) | 2019-12-22 | PDF 15.8 KB |
| Confidentiality | Cover Letter(s) | 2019-12-22 | PDF 183.7 KB |
| Declaration of authorization | Cover Letter(s) | 2019-12-22 | PDF 183 KB |
| Confidentiality | Cover Letter(s) | 2016-05-30 | PDF 30.7 KB |
| Declaration of Authorization | Cover Letter(s) | 2016-05-30 | PDF 119.5 KB |
| Block Diagram Metadata only | Block Diagram | PDF 12 KB | |
| Block diagram Metadata only | Block Diagram | PDF 12 KB | |
| Schematics Metadata only | Schematics | PDF 117.9 KB | |
| Operational Description Metadata only | Operational Description | PDF 96.8 KB | |
| Operational description Metadata only | Operational Description | PDF 96.8 KB | |
| Software Operating Description Metadata only | Operational Description | PDF 120.7 KB | |
| Software Operational Description Metadata only | Operational Description | PDF 259.2 KB |
Application Information
| Application ID | yXONES7zuXVEbpwd6YgRhQ== |
|---|---|
| Final Action Date | 2019-12-22 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0005821988 |
| Model | USBR700 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Dual band AC1900 USB 3.0 Wi-Fi Adapter |
| Responsible Party | Jackson Yen, Associate Vice President, jackson_yen@asus.com  , +886-2-28943447 |
| Agent | Louis Louis Louis, DEKRA Testing and Certification Co., Ltd., louis.hsu@dekra.com  , 886-3-582-8001 |
| Technical Contact | Louis Hsu, DEKRA Testing and Certification Co., Ltd., louis.hsu@dekra.com , 886-3-582-8001 |
| Non-Technical Contact | Milla Wang, DEKRA Testing and Certification Co., Ltd., milla.wang@dekra.com , 886-3-582-8001 |
| Test Firm | Warren Lin, DEKRA TESTING AND CERTIFICATION Hsin Chu Lab., warren.lin@dekra.com , 886-3-582-8001 |
| TCB Email | certification@telefication.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II change letter: Update the device in conformity with MO&O FCC 16-24 concerning to 15.407 b) i) Output power listed is conducted. This is a portable device. The SAR data in this filing is applicable to demonstrate compliance for body-worn operating conditions and is limited to the specific configuration tested for this filling. End-users must be informed of the body worn requirements to satisfy RF exposure compliance. This equipment should be installed and operated with minimum distance 5 mm between radiator and human body. The highest reported SAR values for body-worn and simultaneous transmission use conditions are 1.07 W/kg and 1.00 W/kg . This device has a 20/40 MHz bandwidth mode. The 80 MHz mode is limited to channel at 5210MHz, and 5775 MHz. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| yXONES7zuXVEbpwd6YgRhQ== | 2019-12-22 | Class II permissive change or modification of presently authorized equipment |
| YSvHKkiwOCWXZxFPhwG7kg== | 2016-05-30 | Original Equipment |
| /OjZI36wgIsRuJsHdn2MqA== | 2016-05-30 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application yXONES7zuXVEbpwd6YgRhQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 12/22/2019 Application Dated: 12/20/2019 |
| ASUSTeK Computer Inc |
| 1F, No. 15, Lide Rd. |
| Beitou, Taipei, 112 Taiwan |
| Attention: Jackson Yen , Associate Vice President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | MSQ-USBR700 |
| Name of Grantee: | ASUSTeK Computer Inc |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Dual band AC1900 USB 3.0 Wi-Fi Adapter |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.0716 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.0676 |
| Class II change letter: Update the device in conformity with MO&O FCC 16-24 concerning to 15.407 b) i) Output power listed is conducted. This is a portable device. The SAR data in this filing is applicable to demonstrate compliance for body-worn operating conditions and is limited to the specific configuration tested for this filling. End-users must be informed of the body worn requirements to satisfy RF exposure compliance. This equipment should be installed and operated with minimum distance 5 mm between radiator and human body. The highest reported SAR values for body-worn and simultaneous transmission use conditions are 1.07 W/kg and 1.00 W/kg . This device has a 20/40 MHz bandwidth mode. The 80 MHz mode is limited to channel at 5210MHz, and 5775 MHz. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application yXONES7zuXVEbpwd6YgRhQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ASUSTeK Computer Inc 1F, No. 15, Lide Rd. Beitou, Taipei, 112 Taiwan |
Date of Grant: 12/22/2019 Application Dated: 12/20/2019 |
| Attention: Jackson Yen , Associate Vice President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | MSQ-USBR700 |
| Name of Grantee: | ASUSTeK Computer Inc |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Dual band AC1900 USB 3.0 Wi-Fi Adapter |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.0716 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.0676 |
| Class II change letter: Update the device in conformity with MO&O FCC 16-24 concerning to 15.407 b) i) Output power listed is conducted. This is a portable device. The SAR data in this filing is applicable to demonstrate compliance for body-worn operating conditions and is limited to the specific configuration tested for this filling. End-users must be informed of the body worn requirements to satisfy RF exposure compliance. This equipment should be installed and operated with minimum distance 5 mm between radiator and human body. The highest reported SAR values for body-worn and simultaneous transmission use conditions are 1.07 W/kg and 1.00 W/kg . This device has a 20/40 MHz bandwidth mode. The 80 MHz mode is limited to channel at 5210MHz, and 5775 MHz. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 05/30/2016 Application Dated: 05/30/2016 |
| ASUSTeK Computer Inc |
| 1F, No. 15, Lide Rd. |
| Beitou, Taipei, 112 Taiwan |
| Attention: Jackson Yen , Associate Vice President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | MSQ-USBR700 |
| Name of Grantee: | ASUSTeK Computer Inc |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Dual band AC1900 USB 3.0 Wi-Fi Adapter |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.0716 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.0676 |
| Output power listed is conducted. This is a portable device. The SAR data in this filing is applicable to demonstrate compliance for body-worn operating conditions and is limited to the specific configuration tested for this filling. End-users must be informed of the body worn requirements to satisfy RF exposure compliance. This equipment should be installed and operated with minimum distance 5 mm between radiator and human body. The highest reported SAR values for body-worn and simultaneous transmission use conditions are 1.07 W/kg and 1.00 W/kg . This device has a 20/40 MHz bandwidth mode. The 80 MHz mode is limited to channel at 5210MHz, and 5775 MHz. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application YSvHKkiwOCWXZxFPhwG7kg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ASUSTeK Computer Inc 1F, No. 15, Lide Rd. Beitou, Taipei, 112 Taiwan |
Date of Grant: 05/30/2016 Application Dated: 05/30/2016 |
| Attention: Jackson Yen , Associate Vice President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | MSQ-USBR700 |
| Name of Grantee: | ASUSTeK Computer Inc |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Dual band AC1900 USB 3.0 Wi-Fi Adapter |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.0716 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.0676 |
| Output power listed is conducted. This is a portable device. The SAR data in this filing is applicable to demonstrate compliance for body-worn operating conditions and is limited to the specific configuration tested for this filling. End-users must be informed of the body worn requirements to satisfy RF exposure compliance. This equipment should be installed and operated with minimum distance 5 mm between radiator and human body. The highest reported SAR values for body-worn and simultaneous transmission use conditions are 1.07 W/kg and 1.00 W/kg . This device has a 20/40 MHz bandwidth mode. The 80 MHz mode is limited to channel at 5210MHz, and 5775 MHz. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 05/30/2016 Application Dated: 05/30/2016 |
| ASUSTeK Computer Inc |
| 1F, No. 15, Lide Rd. |
| Beitou, Taipei, 112 Taiwan |
| Attention: Jackson Yen , Associate Vice President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | MSQ-USBR700 |
| Name of Grantee: | ASUSTeK Computer Inc |
| Equipment Class: | Digital Transmission System |
| Notes: | Dual band AC1900 USB 3.0 Wi-Fi Adapter |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.0734 |
| Output power listed is conducted. This is a portable device. The SAR data in this filing is applicable to demonstrate compliance for body-worn operating conditions and is limited to the specific configuration tested for this filling. End-users must be informed of the body worn requirements to satisfy RF exposure compliance. This equipment should be installed and operated with minimum distance 5 mm between radiator and human body. The highest reported SAR values for body-worn and simultaneous transmission use conditions are 1.13 W/kg and 1.02 W/kg This device has a 20/40 MHz bandwidth mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application /OjZI36wgIsRuJsHdn2MqA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ASUSTeK Computer Inc 1F, No. 15, Lide Rd. Beitou, Taipei, 112 Taiwan |
Date of Grant: 05/30/2016 Application Dated: 05/30/2016 |
| Attention: Jackson Yen , Associate Vice President |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | MSQ-USBR700 |
| Name of Grantee: | ASUSTeK Computer Inc |
| Equipment Class: | Digital Transmission System |
| Notes: | Dual band AC1900 USB 3.0 Wi-Fi Adapter |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.0734 |
| Output power listed is conducted. This is a portable device. The SAR data in this filing is applicable to demonstrate compliance for body-worn operating conditions and is limited to the specific configuration tested for this filling. End-users must be informed of the body worn requirements to satisfy RF exposure compliance. This equipment should be installed and operated with minimum distance 5 mm between radiator and human body. The highest reported SAR values for body-worn and simultaneous transmission use conditions are 1.13 W/kg and 1.02 W/kg This device has a 20/40 MHz bandwidth mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
