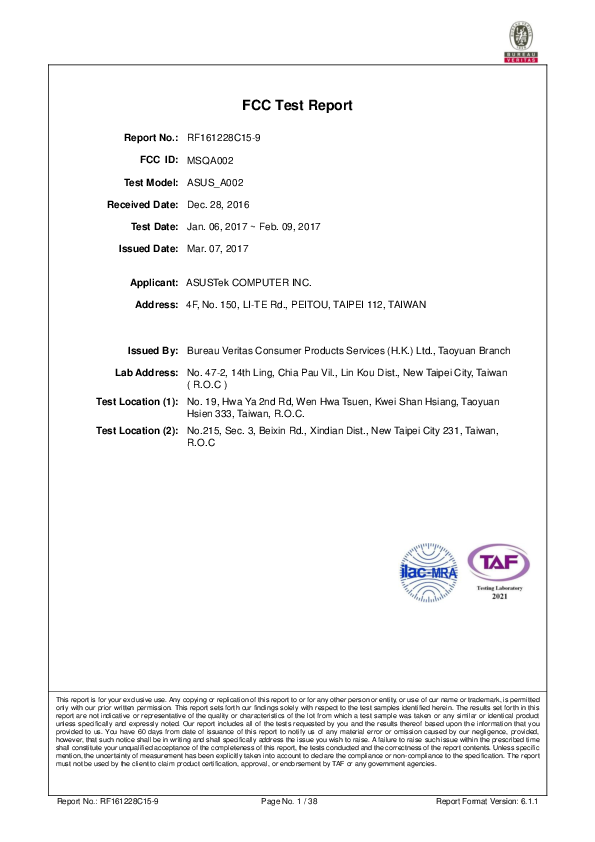

FCC Test Report
Report No.: RF161228C15-9
FCC ID: MSQA002
Test Model: ASUS_A002
Received Date: Dec. 28, 2016
Test Date: Jan. 06, 2017 ~ Feb. 09, 2017
Issued Date: Mar. 07, 2017
Applicant: ASUSTek COMPUTER INC.
Address: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch
Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan
( R.O.C )
Test Location (1): No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan
Hsien 333, Taiwan, R.O.C.
Test Location (2): No.215, Sec. 3, Beixin Rd., Xindian Dist., New Taipei City 231, Taiwan,
R.O.C
This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted
only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this
report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product
unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you
provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided,
however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time
shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific
mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report
must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies.
Report No.: RF161228C15-9
Page No. 1 / 38
Report Format Version: 6.1.1
Table of Contents
Release Control Record .................................................................................................................................. 3
1 Certificate of Conformity ........................................................................................................................... 4
2 Summary of Test Results ........................................................................................................................... 5
2.1 Measurement Uncertainty ..................................................................................................................... 5
2.2 Modification Record .............................................................................................................................. 5
3 General Information ................................................................................................................................... 6
3.1 General Description of EUT .................................................................................................................. 6
3.2 Description of Test Modes..................................................................................................................... 7
3.2.1 Test Mode Applicability and Tested Channel Detail .................................................................... 7
3.3 Description of Support Units ................................................................................................................. 9
3.3.1 Configuration of System under Test ........................................................................................... 9
3.4 General Description of Applied Standards ............................................................................................ 9
4 Test Types and Results ............................................................................................................................ 10
4.1 Radiated Emission Measurement ....................................................................................................... 10
4.1.1 Limits of Radiated Emission Measurement .............................................................................. 10
4.1.2 Test Instruments ........................................................................................................................ 11
4.1.3 Test Procedures ........................................................................................................................ 12
4.1.4 Deviation from Test Standard ................................................................................................... 12
4.1.5 Test Set Up ............................................................................................................................... 13
4.1.6 EUT Operating Conditions ........................................................................................................ 13
4.1.7 Test Results .............................................................................................................................. 14
4.2 Conducted Emission Measurement .................................................................................................... 27
4.2.1 Limits of Conducted Emission Measurement ........................................................................... 27
4.2.2 Test Instruments ....................................................................................................................... 27
4.2.3 Test Procedures ........................................................................................................................ 28
4.2.4 Deviation from Test Standard ................................................................................................... 28
4.2.5 Test Setup ................................................................................................................................. 28
4.2.6 EUT Operating Conditions ........................................................................................................ 28
4.2.7 Test Results .............................................................................................................................. 29
4.3 Frequency Stability ............................................................................................................................. 33
4.3.1 Limits of Frequency Stability Measurement ............................................................................. 33
4.3.2 Test Setup ................................................................................................................................. 33
4.3.3 Test Instruments ....................................................................................................................... 33
4.3.4 Test Procedure ......................................................................................................................... 33
4.3.5 Deviation fromTest Standard .................................................................................................... 33
4.3.6 EUT Operating Conditions ........................................................................................................ 33
4.3.7 Test Result ................................................................................................................................ 34
4.4 20 dB Bandwidth ................................................................................................................................. 35
4.4.1 Limits of 20 dB Bandwidth Measurement ................................................................................. 35
4.4.2 Test Setup ................................................................................................................................. 35
4.4.3 Test Instruments ....................................................................................................................... 35
4.4.4 Test Procedures ........................................................................................................................ 35
4.4.5 Deviation from Test Standard ................................................................................................... 35
4.4.6 EUT Operating Conditions ........................................................................................................ 35
4.4.7 Test Results .............................................................................................................................. 36
5 Pictures of Test Arrangements................................................................................................................ 37
Appendix – Information on the Testing Laboratories ................................................................................ 38
Report No.: RF161228C15-9
Page No. 2 / 38
Report Format Version: 6.1.1
Release Control Record
Issue No.
Description
Date Issued
RF161228C15-9
Original Release
Mar. 07, 2017
Report No.: RF161228C15-9
Page No. 3 / 38
Report Format Version: 6.1.1
1
Certificate of Conformity
Product: ASUS Phone
Brand: ASUS
Test Model: ASUS_A002
Sample Status: Identical Prototype
Applicant: ASUSTek COMPUTER INC.
Test Date: Jan. 06, 2017 ~ Feb. 09, 2017
Standards: 47 CFR FCC Part 15, Subpart C (Section 15.225)
47 CFR FCC Part 15, Subpart C (Section 15.215)
ANSI C63.10:2013
The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd.,
Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data
evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts
of the measurements of the sample’s EMC characteristics under the conditions specified in this report.
Prepared by :
Date:
Mar. 07, 2017
Date:
Mar. 07, 2017
Ivonne Wu / Supervisor
Approved by :
David Huang / Project Engineer
Report No.: RF161228C15-9
Page No. 4 / 38
Report Format Version: 6.1.1
2
Summary of Test Results
47 CFR FCC Part 15, Subpart C (Section 15.225, 15.215)
FCC Clause
Test Item
Result
Remarks
15.207
Conducted emission test
Pass
Meet the requirement of limit.
Minimum passing margin is -2.42 dB at
13.56130 MHz.
15.225 (a)
The field strength of any emissions
within the band 13.553-13.567 MHz
Pass
Meet the requirement of limit.
Minimum passing margin is -74.68 dB
at 13.56 MHz.
15.225 (b)
The field strength of any emissions
within the bands 13.410-13.553 MHz
and 13.567-13.710 MHz
Pass
Meet the requirement of limit.
15.225 (c)
The field strength of any emissions
within the bands 13.110-13.410 MHz
and 13.710-14.010 MHz
Pass
Meet the requirement of limit.
15.225 (d)
The field strength of any emissions
appearing outside of the
13.110-14.010 MHz band
Pass
Meet the requirement of limit.
Minimum passing margin is -2.9 dB at
40.67 MHz.
15.225 (e)
The frequency tolerance
Pass
Meet the requirement of limit.
15.215 (c)
20dB Bandwidth
Pass
Meet the requirement of limit.
15.203
Antenna Requirement
Pass
No antenna connector is used.
2.1
Measurement Uncertainty
Where relevant, the following measurement uncertainty levels have been estimated for tests performed on
the EUT as specified in CISPR 16-4-2:
Measurement
Frequency
Conducted Emissions at mains ports
150 kHz ~ 30 MHz
30 MHz ~ 200 MHz
200 MHz ~1000 MHz
1 GHz ~ 18 GHz
18 GHz ~ 40 GHz
Radiated Emissions up to 1 GHz
Radiated Emissions above 1 GHz
2.2
Expended Uncertainty
(k=2) (±)
2.44 dB
2.0153 dB
2.0224 dB
1.0121 dB
1.1508 dB
Modification Record
There were no modifications required for compliance.
Report No.: RF161228C15-9
Page No. 5 / 38
Report Format Version: 6.1.1
3
3.1
General Information
General Description of EUT
Product
ASUS Phone
Brand
ASUS
Test Model
ASUS_A002
Status of EUT
Identical Prototype
3.85 Vdc (Li-ion battery)
Power Supply Rating
5.0 Vdc or 9.0 Vdc (Adapter)
5.0 Vdc (Host equipment)
Modulation Type
ASK
Operating Frequency
13.56 MHz
Antenna Type
Loop Antenna
Accessory Device
Refer to Note
Data Cable Supplied
Refer to Note
Note:
1. There’re 2 configurations for the EUT listed as below.
Sample
Description
EUT + Rear Camera 1 + TOF Camera 2 + UFS 3 + DDR 1 + Finger Print 2
EUT + Rear Camera 2 + TOF Camera 1 + UFS 5 + DDR 3 + Finger Print 1
* Only the worst test data was presented in the report.
2. The EUT’s accessories list refers to Ext. Pho.
3. The above EUT information is declared by manufacturer and for more detailed features description,
please refer to the manufacturer's specifications or user's manual.
Report No.: RF161228C15-9
Page No. 6 / 38
Report Format Version: 6.1.1
3.2
Description of Test Modes
One channel was provided to this EUT:
Channel
Frequency (MHz)
13.56
3.2.1
Test Mode Applicability and Tested Channel Detail
EUT
Configure
Mode
RE
PLC
FS
EB
√
√
√
√
Sample A
√
√
Sample B
Where
Applicable To
Description
RE: Radiated Emission
FS: Frequency Stability
PLC: Power Line Conducted Emission
EB: 20 dB Bandwidth measurement
Radiated Emission Test:
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between
available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
EUT
Configure
Available Channel
Tested Channel
Modulation Type
Axis
Mode
A, B
ASK
Power Line Conducted Emission Test:
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between
available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
EUT
Configure
Available Channel
Tested Channel
Modulation Type
Axis
Mode
A, B
ASK
Frequency Stability:
This item includes all test value of each mode, but only includes spectrum plot of worst value of each
mode.
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between
available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
EUT
Configure
Available Channel
Tested Channel
Modulation Type
Axis
Mode
Report No.: RF161228C15-9
Page No. 7 / 38
ASK
Report Format Version: 6.1.1
20 dB Bandwidth:
This item includes all test value of each mode, but only includes spectrum plot of worst value of each
mode.
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between
available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
EUT
Configure
Available Channel
Tested Channel
Modulation Type
Axis
Mode
ASK
Test Condition:
Applicable To
Environmental Conditions
Input Power
Tested By
RE
FS
PLC
EB
25 deg. C, 65 % RH
25 deg. C, 65 % RH
25 deg. C, 65 % RH
25 deg. C, 68 % RH
120 Vac, 60 Hz
3.85 Vdc
120 Vac, 60 Hz
3.85 Vdc
Getaz Yang
Taylor Liu
Toby Tian
Taylor Liu
Report No.: RF161228C15-9
Page No. 8 / 38
Report Format Version: 6.1.1
3.3
Description of Support Units
The EUT has been tested as an independent unit together with other necessary accessories or support units.
3.3.1
Configuration of System under Test
EUT
(Power from AC Adapter)
Earphone (EUT)
*Test Table
3.4
General Description of Applied Standards
The EUT is a RF Product. According to the specifications of the manufacturer, it must comply with the
requirements of the following standards:
FCC Part 15, Subpart C (15.225)
FCC Part 15, Subpart C (15.215)
ANSI C63.10-2013
All test items have been performed and recorded as per the above standards.
NOTE: The EUT has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC).
The test report has been issued separately.
Report No.: RF161228C15-9
Page No. 9 / 38
Report Format Version: 6.1.1
4
Test Types and Results
4.1
Radiated Emission Measurement
4.1.1
Limits of Radiated Emission Measurement
The field strength of any emissions within the band 13.553-13.567 MHz shall not exceed 15,848
microvolts/meter at 30 meters.
The field strength of any emissions within the bands 13.410-13.553 MHz and 13.567-13.710 MHz shall not
exceed 334 microvolts/meter at 30 meters.
The field strength of any emissions within the bands 13.110-13.410 MHz and 13.710-14.010 MHz shall not
exceed 106 microvolts/meter at 30 meters.
The field strength of any emissions appearing outside of the 13.110-14.010 MHz band shall not exceed the
general radiated emission limits in § 15.209.
Frequencies
(MHz)
Field Strength
(microvolts/meter)
Measurement Distance
(meters)
0.009 ~ 0.490
2400/F (kHz)
300
0.490 ~ 1.705
24000/F (kHz)
30
1.705 ~ 30.0
30
30
30 ~ 88
100
88 ~ 216
150
216 ~ 960
200
Above 960
500
NOTE:
1. The lower limit shall apply at the transition frequencies.
2.
Emission level (dBuV/m) = 20 log Emission level (uV/m).
3.
For frequencies above 1000 MHz, the field strength limits are based on average detector, however, the
peak field strength of any emission shall not exceed the maximum permitted average limits, specified
above by more than 20 dB under any condition of modulation.
Report No.: RF161228C15-9
Page No. 10 / 38
Report Format Version: 6.1.1
4.1.2
Test Instruments
Description &
Manaufacturer
Test Receiver
Agilent
Spectrum Analyzer
Agilent
Spectrum Analyzer
ROHDE & SCHWARZ
BILOG Antenna
SCHWARZBECK
HORN Antenna
SCHWARZBECK
HORN Antenna
SCHWARZBECK
Fixed Attenuator
Mini-Circuits
Loop Antenna
Bluetooth Tester
Preamplifier
EMCI
Preamplifier
EMCI
Preamplifier
EMCI
Power Meter
Anritsu
Power Sensor
Anritsu
RF signal cable
HUBER+SUHNNER
RF signal cable
HUBER+SUHNNER
RF Coaxial Cable
Worken
Software
BV ADT
Antenna Tower
MF
Turn Table
MF
Antenna Tower &Turn
Table Controller
MF
Model No.
Serial No.
Date of Calibration
Due Date of
Calibration
N9038A
MY51210203
Feb. 17, 2017
Feb. 16, 2018
N9010A
MY52220314
Dec. 16, 2016
Dec. 15, 2017
FSU43
101261
Dec. 13, 2016
Dec. 12, 2017
VULB9168
9168-472
Dec. 26, 2016
Dec. 27, 2017
BBHA 9120 D
9120D-969
Dec. 12, 2016
Dec. 13, 2017
BBHA 9170
9170-480
Dec. 14, 2016
Dec. 13, 2017
BW-N10W5+
NA
Jul. 08, 2016
Jul. 07, 2017
EM-6879
269
Aug. 11, 2016
Aug. 10, 2017
CBT
100980
Apr. 27, 2015
Apr. 26, 2017
EMC 012645
980115
Oct. 21, 2016
Oct. 20, 2017
EMC 184045
980116
Oct. 21, 2016
Oct. 20, 2017
EMC 330H
980112
Oct. 21, 2016
Oct. 20, 2017
ML2495A
1232002
Sep. 08, 2016
Sep. 07, 2017
MA2411B
1207325
Sep. 08, 2016
Sep. 07, 2017
SUCOFLEX 104
309219/4
2950114
Oct. 21, 2016
Oct. 20, 2017
SUCOFLEX 104
250130/4
Oct. 21, 2016
Oct. 20, 2017
8D-FB
Cable-Ch10-01
Oct. 21, 2016
Oct. 20, 2017
E3
6.120103
NA
NA
NA
MFA-440H
NA
NA
NA
MFT-201SS
NA
NA
NA
MF-7802
NA
NA
NA
Note: 1. The calibration interval of the above test instruments is 12 months and the calibrations are
traceable to NML/ROC and NIST/USA.
2. The test was performed in HwaYa Chamber 10.
3. The horn antenna and preamplifier (model: EMC 184045) are used only for the measurement of
emission frequency above 1 GHz if tested.
4. The FCC Site Registration No. is 690701.
5. The IC Site Registration No. is IC7450F-10.
Report No.: RF161228C15-9
Page No. 11 / 38
Report Format Version: 6.1.1
4.1.3
a.
Test Procedures
The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meters
semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest
radiation.
b.
The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top
of a variable-height antenna tower.
c.
Height of receiving antenna is varied from one meter to four meters above the ground to determine the
maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to
make the measurement.
d.
For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned
to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to
find the maximum reading.
e.
The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold
Mode.
f.
If the emission level of the EUT in peak mode was lower than the limit specified, then testing could be
stopped and the peak values of the EUT would be reported. Otherwise the emissions would be re-tested
one by one using peak, quasi-peak or average method as specified and then reported in a data sheet.
NOTE:
1.
The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120 kHz for
2.
The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and video bandwidth is 3 MHz for
Quasi-peak detection at frequency below 1 GHz.
Peak detection at frequency above 1 GHz.
3.
The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is ≥ 1/T
4.
All modes of operation were investigated and the worst-case emissions are reported.
(Duty cycle < 98 %) or 10 Hz (Duty cycle > 98 %) for Average detection (AV) at frequency above 1 GHz.
4.1.4
Deviation from Test Standard
No deviation.
Report No.: RF161228C15-9
Page No. 12 / 38
Report Format Version: 6.1.1
4.1.5
Test Set Up
Frequency range 9k~30MHz:
3m
Frequency range 30~1000MHz:
For the actual test configuration, please refer to the attached file (Test Setup Photo).
4.1.6
EUT Operating Conditions
a. Placed the EUT on the testing table.
b. Set the EUT under transmission condition continuously at specific channel frequency.
Report No.: RF161228C15-9
Page No. 13 / 38
Report Format Version: 6.1.1
4.1.7
Test Results
No non-compliance noted:
KDB 937606 OATS and Chamber Correlation Justification
- Base on FCC 15.31 (f) (2): measurements may be performed at a distance closer than that specified in the
regulations; however, an attempt should be made to avoid making measurements in the near field.
- OATs and chamber correlation testing had been performed and chamber measured test result is the worst
case test result.
Report No.: RF161228C15-9
Page No. 14 / 38
Report Format Version: 6.1.1
Mode A
EUT Test Condition
Measurement Detail
Channel
Channel 1
Frequency Range
13.553 ~ 13.567 MHz
Input Power
120 Vac, 60 Hz
Detector Function
Quasi-Peak
25 deg. C, 65 % RH
Tested By
Getaz Yang
Environmental
Conditions
Antenna Polarity & Test Distance: Loop Antenna Open at 3M
Frequency
(MHz)
Emission Read
Limit
Margin
Level
Level
(dBuV/m)
(dB)
(dBuV/m) (dBuV)
13.56
49.32
52.7
124
-74.68
Antenna
Preamp Antenna
Table
Cable
Factor
Factor
Height
Angle
Remark
Loss (dB)
(dB/m)
(dB)
(cm)
(Degree)
37.67
0.31
41.36
100
QP
REMARKS:
1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m)
2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB)
– Pre-Amplifier Factor(dB)
3. The other emission levels were very low against the limit.
4. Margin value = Emission level – Limit value.
5. Above limits have been translated by the formula
The measured field strength was extrapolated to distance 30 meters, using the formula that the limit of field
strength varies as the inverse distance square (40dB per decade of distance)
Example:
13.56 MHz = 15848 uV/m
30m
= 84 dBuV/m
30m
= 84+20log(30/3)
3m
= 124 dBuV/m
Report No.: RF161228C15-9
Page No. 15 / 38
Report Format Version: 6.1.1
EUT Test Condition
Measurement Detail
Channel
Channel 1
Frequency Range
13.553 ~ 13.567 MHz
Input Power
120 Vac, 60 Hz
Detector Function
Quasi-Peak
25 deg. C, 65 % RH
Tested By
Getaz Yang
Environmental
Conditions
Antenna Polarity & Test Distance: Loop Antenna Close at 3M
Frequency
(MHz)
Emission Read
Limit
Margin
Level
Level
(dBuV/m)
(dB)
(dBuV/m) (dBuV)
13.56
44.47
47.85
124
-79.53
Antenna
Preamp Antenna
Table
Cable
Factor
Factor
Height
Angle
Remark
Loss (dB)
(dB/m)
(dB)
(cm)
(Degree)
37.67
0.31
41.36
100
360
QP
REMARKS:
1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m)
2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB)
– Pre-Amplifier Factor(dB)
3. The other emission levels were very low against the limit.
4. Margin value = Emission level – Limit value.
5. Above limits have been translated by the formula
The measured field strength was extrapolated to distance 30 meters, using the formula that the limit of field
strength varies as the inverse distance square (40dB per decade of distance)
Example:
13.56 MHz = 15848 uV/m
30m
= 84 dBuV/m
30m
= 84+20log(30/3)
3m
= 124 dBuV/m
Report No.: RF161228C15-9
Page No. 16 / 38
Report Format Version: 6.1.1
EUT Test Condition
Measurement Detail
Channel
Channel 1
Frequency Range
Below 30 MHz
Input Power
120 Vac, 60 Hz
Detector Function
Quasi-Peak
25 deg. C, 65 % RH
Tested By
Getaz Yang
Environmental
Conditions
Antenna Polarity & Test Distance: Loop Antenna Open at 3M
Frequency
(MHz)
Emission Read
Limit
Margin
Level
Level
(dBuV/m)
(dB)
(dBuV/m) (dBuV)
27.12
23.68
29.08
69.54
-45.86
Antenna
Preamp Antenna
Table
Cable
Factor
Factor
Height
Angle
Remark
Loss (dB)
(dB/m)
(dB)
(cm)
(Degree)
35.55
0.38
41.33
100
QP
REMARKS:
1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB)
– Pre-Amplifier Factor (dB)
3. The other emission levels were very low against the limit.
4. Margin value = Emission Level – Limit value
Report No.: RF161228C15-9
Page No. 17 / 38
Report Format Version: 6.1.1
EUT Test Condition
Measurement Detail
Channel
Channel 1
Frequency Range
Below 30 MHz
Input Power
120 Vac, 60 Hz
Detector Function
Quasi-Peak
25 deg. C, 65 % RH
Tested By
Getaz Yang
Environmental
Conditions
Antenna Polarity & Test Distance: Loop Antenna Close at 3M
Frequency
(MHz)
Emission Read
Limit
Margin
Level
Level
(dBuV/m)
(dB)
(dBuV/m) (dBuV)
27.12
24.19
29.59
69.54
-45.35
Antenna
Preamp Antenna
Table
Cable
Factor
Factor
Height
Angle
Remark
Loss (dB)
(dB/m)
(dB)
(cm)
(Degree)
35.55
0.38
41.33
100
360
QP
REMARKS:
1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB)
– Pre-Amplifier Factor (dB)
3. The other emission levels were very low against the limit.
4. Margin value = Emission Level – Limit value
Report No.: RF161228C15-9
Page No. 18 / 38
Report Format Version: 6.1.1
EUT Test Condition
Measurement Detail
Channel
Channel 1
Frequency Range
Below 1000 MHz
Input Power
120 Vac, 60 Hz
Detector Function
Quasi-Peak
25 deg. C, 65 % RH
Tested By
Getaz Yang
Environmental
Conditions
HORIZONTAL
VERTICAL
Report No.: RF161228C15-9
Page No. 19 / 38
Report Format Version: 6.1.1
Antenna Polarity & Test Distance: Horizontal at 3 m
Frequency
(MHz)
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Limit
(dBuV/m)
Margin
(dB)
Antenna
Factor
(dB/m)
Cable
Loss
(dB)
Preamp
Factor (dB)
Antenna
Height
(cm)
Table
Angle
(Degree)
Remark
40.67
27.54
44.36
40
-12.46
13.55
0.65
31.02
123
241
Peak
67.83
21.65
41.53
40
-18.35
11
0.85
31.73
125
157
Peak
94.99
30.7
52.96
43.5
-12.8
8.68
1.02
31.96
131
339
Peak
149.31
26.81
44.61
43.5
-16.69
12.68
1.13
31.61
105
312
Peak
176.47
31.93
51.46
43.5
-11.57
11.1
1.17
31.8
118
273
Peak
312.27
22.15
39.18
46
-23.85
13.24
1.67
31.94
135
357
Peak
Remark
Antenna Polarity & Test Distance: Vertical at 3 m
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Limit
(dBuV/m)
40.67
37.1
53.92
67.83
27.67
47.55
Frequency
(MHz)
Margin
(dB)
Antenna
Factor
(dB/m)
Cable
Loss
(dB)
Preamp
Factor (dB)
Antenna
Height
(cm)
Table
Angle
(Degree)
40
-2.9
13.55
0.65
31.02
118
190
QP
40
-12.33
11
0.85
31.73
116
296
Peak
94.99
24.6
46.86
43.5
-18.9
8.68
1.02
31.96
112
333
Peak
149.31
27.85
45.65
43.5
-15.65
12.68
1.13
31.61
121
10
Peak
176.47
29.49
49.02
43.5
-14.01
11.1
1.17
31.8
124
183
Peak
312.27
19.61
36.64
46
-26.39
13.24
1.67
31.94
135
300
Peak
REMARKS:
1. Emission Level = Read Level + Antenna Factor + Cable Loss - Preamp Factor
Margin value = Emission level – Limit value.
Report No.: RF161228C15-9
Page No. 20 / 38
Report Format Version: 6.1.1
Mode B
EUT Test Condition
Measurement Detail
Channel
Channel 1
Frequency Range
13.553 ~ 13.567 MHz
Input Power
120 Vac, 60 Hz
Detector Function
Quasi-Peak
25 deg. C, 65 % RH
Tested By
Getaz Yang
Environmental
Conditions
Antenna Polarity & Test Distance: Loop Antenna Open at 3M
Frequency
(MHz)
Emission Read
Limit
Margin
Level
Level
(dBuV/m)
(dB)
(dBuV/m) (dBuV)
13.56
49.11
52.49
124
-74.89
Antenna
Preamp Antenna
Table
Cable
Factor
Factor
Height
Angle
Remark
Loss (dB)
(dB/m)
(dB)
(cm)
(Degree)
37.67
0.31
41.36
100
QP
REMARKS:
1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m)
2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB)
– Pre-Amplifier Factor(dB)
3. The other emission levels were very low against the limit.
4. Margin value = Emission level – Limit value.
5. Above limits have been translated by the formula
The measured field strength was extrapolated to distance 30 meters, using the formula that the limit of field
strength varies as the inverse distance square (40dB per decade of distance)
Example:
13.56 MHz = 15848 uV/m
30m
= 84 dBuV/m
30m
= 84+20log(30/3)
3m
= 124 dBuV/m
Report No.: RF161228C15-9
Page No. 21 / 38
Report Format Version: 6.1.1
EUT Test Condition
Measurement Detail
Channel
Channel 1
Frequency Range
13.553 ~ 13.567 MHz
Input Power
120 Vac, 60 Hz
Detector Function
Quasi-Peak
25 deg. C, 65 % RH
Tested By
Getaz Yang
Environmental
Conditions
Antenna Polarity & Test Distance: Loop Antenna Close at 3M
Frequency
(MHz)
Emission Read
Limit
Margin
Level
Level
(dBuV/m)
(dB)
(dBuV/m) (dBuV)
13.56
44.33
47.71
124
-79.67
Antenna
Preamp Antenna
Table
Cable
Factor
Factor
Height
Angle
Remark
Loss (dB)
(dB/m)
(dB)
(cm)
(Degree)
37.67
0.31
41.36
100
360
QP
REMARKS:
1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB/m)
2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB)
– Pre-Amplifier Factor(dB)
3. The other emission levels were very low against the limit.
4. Margin value = Emission level – Limit value.
5. Above limits have been translated by the formula
The measured field strength was extrapolated to distance 30 meters, using the formula that the limit of field
strength varies as the inverse distance square (40dB per decade of distance)
Example:
13.56 MHz = 15848 uV/m
30m
= 84 dBuV/m
30m
= 84+20log(30/3)
3m
= 124 dBuV/m
Report No.: RF161228C15-9
Page No. 22 / 38
Report Format Version: 6.1.1
EUT Test Condition
Measurement Detail
Channel
Channel 1
Frequency Range
Below 30 MHz
Input Power
120 Vac, 60 Hz
Detector Function
Quasi-Peak
25 deg. C, 65 % RH
Tested By
Getaz Yang
Environmental
Conditions
Antenna Polarity & Test Distance: Loop Antenna Open at 3M
Emission Read
Frequency
Limit
Margin
Level
Level
(MHz)
(dBuV/m)
(dB)
(dBuV/m) (dBuV)
27.12
24.12
29.52
69.54
-45.42
Antenna
Preamp Antenna
Table
Cable
Factor
Factor
Height
Angle
Remark
Loss (dB)
(dB/m)
(dB)
(cm)
(Degree)
35.55
0.38
41.33
100
QP
REMARKS:
1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB)
– Pre-Amplifier Factor (dB)
3. The other emission levels were very low against the limit.
4. Margin value = Emission Level – Limit value
Report No.: RF161228C15-9
Page No. 23 / 38
Report Format Version: 6.1.1
EUT Test Condition
Measurement Detail
Channel
Channel 1
Frequency Range
Below 30 MHz
Input Power
120 Vac, 60 Hz
Detector Function
Quasi-Peak
25 deg. C, 65 % RH
Tested By
Getaz Yang
Environmental
Conditions
Antenna Polarity & Test Distance: Loop Antenna Close at 3M
Frequency
(MHz)
Emission Read
Limit
Margin
Level
Level
(dBuV/m)
(dB)
(dBuV/m) (dBuV)
27.12
24.33
29.73
69.54
-45.21
Antenna
Preamp Antenna
Table
Cable
Factor
Factor
Height
Angle
Remark
Loss (dB)
(dB/m)
(dB)
(cm)
(Degree)
35.55
0.38
41.33
100
360
QP
REMARKS:
1. Emission Level(dBuV/m) = Raw Value(dBuV) + Correction Factor(dB/m)
2. Correction Factor(dB/m) = Antenna Factor(dB/m) + Cable Factor(dB)
– Pre-Amplifier Factor (dB)
3. The other emission levels were very low against the limit.
4. Margin value = Emission Level – Limit value
Report No.: RF161228C15-9
Page No. 24 / 38
Report Format Version: 6.1.1
EUT Test Condition
Measurement Detail
Channel
Channel 1
Frequency Range
Below 1000 MHz
Input Power
120 Vac, 60 Hz
Detector Function
Quasi-Peak
25 deg. C, 65 % RH
Tested By
Getaz Yang
Environmental
Conditions
HORIZONTAL
VERTICAL
Report No.: RF161228C15-9
Page No. 25 / 38
Report Format Version: 6.1.1
Antenna Polarity & Test Distance: Horizontal at 3 m
Frequency
(MHz)
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Antenna
Factor
(dB/m)
Cable
Loss
(dB)
Preamp
Factor (dB)
67.83
26.84
95.96
30.17
203.63
Antenna
Height
(cm)
Table
Angle
(Degree)
Remark
-13.16
11
0.85
-13.33
8.76
1.02
31.73
117
287
Peak
31.96
139
316
43.5
-11.04
9.52
Peak
1.31
31.7
129
288
50.09
46
-14.56
Peak
11.71
1.51
31.87
137
272
28.42
44.01
46
Peak
-17.58
14.54
1.81
31.94
135
137
Peak
25.74
37.92
46
-20.26
17.35
2.09
31.62
104
174
Peak
Limit
(dBuV/m)
Margin
(dB)
46.72
40
52.35
43.5
32.46
53.33
257.95
31.44
366.59
501.42
Antenna Polarity & Test Distance: Vertical at 3 m
Frequency
(MHz)
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Limit
(dBuV/m)
Margin
(dB)
Antenna
Factor
(dB/m)
Cable
Loss
(dB)
Preamp
Factor (dB)
Antenna
Height
(cm)
Table
Angle
(Degree)
Remark
40.67
28.99
45.81
67.83
27.91
47.79
40
-11.01
13.55
0.65
31.02
127
307
Peak
40
-12.09
11
0.85
31.73
111
92
94.99
29.42
Peak
51.68
43.5
-14.08
8.68
1.02
31.96
111
150
122.15
Peak
21.6
41.2
43.5
-21.9
11.15
1.15
31.9
104
316
Peak
257.95
22.64
41.29
46
-23.36
11.71
1.51
31.87
129
295
Peak
366.59
23.9
39.49
46
-22.1
14.54
1.81
31.94
138
155
Peak
REMARKS:
1. Emission Level = Read Level + Antenna Factor + Cable Loss - Preamp Factor
Margin value = Emission level – Limit value.
Report No.: RF161228C15-9
Page No. 26 / 38
Report Format Version: 6.1.1
4.2
Conducted Emission Measurement
4.2.1
Limits of Conducted Emission Measurement
Conducted Limit (dBuV)
Frequency (MHz)
Quasi-peak
Average
0.15 - 0.5
66 - 56
56 - 46
0.50 - 5.0
56
46
5.0 - 30.0
60
50
Note:
1. The lower limit shall apply at the transition frequencies.
2. The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50 MHz.
3. All emanations from a class A/B digital device or system, including any network of conductors and
apparatus connected thereto, shall not exceed the level of field strengths specified above.
4.2.2
Test Instruments
Description &
Manufacturer
Test Receiver
ROHDE & SCHWARZ
RF signal cable (with
10dB PAD)
Woken
LISN
ROHDE & SCHWARZ
(EUT)
LISN
ROHDE & SCHWARZ
(Peripheral)
Software
ADT
Model No.
Serial No.
Date Of
Calibration
Due Date Of
Calibration
ESCI
100613
Nov. 21, 2016
Nov. 20, 2017
5D-FB
Cable-cond1-01
Dec. 22, 2016
Dec. 21, 2017
ESH3-Z5
835239/001
Feb. 26, 2016
Feb. 25, 2017
ESH3-Z5
100311
Jul. 28, 2016
Jul. 27, 2017
BV ADT_Cond_
V7.3.7.3
NA
NA
NA
NOTE: 1. The calibration interval of the above test instruments is 12 months and the calibrations are
traceable to NML/ROC and NIST/USA.
2. The test was performed in HwaYa Shielded Room 2.
3. The VCCI Site Registration No. is C-2047.
Report No.: RF161228C15-9
Page No. 27 / 38
Report Format Version: 6.1.1
4.2.3
a.
Test Procedures
The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being
connected to the power mains through a line impedance stabilization network (LISN). Other support units
were connected to the power mains through another LISN. The two LISNs provide 50 ohm/50 uH of
coupling impedance for the measuring instrument.
b.
Both lines of the power mains connected to the EUT were checked for maximum conducted interference.
c.
The frequency range from 150 kHz to 30 MHz was searched. Emission levels under (Limit – 20 dB) was
not recorded.
NOTE: The resolution bandwidth and video bandwidth of test receiver is 9 kHz for quasi-peak detection (QP)
and average detection (AV) at frequency 0.15 MHz - 30 MHz.
4.2.4
Deviation from Test Standard
No deviation.
4.2.5
Test Setup
Vertical Ground
Reference Plane
40cm
Test Receiver
EUT
80cm
LISN
Horizontal Ground
Reference Plane
Note: 1.Support units were connected to second LISN.
2.Both of LISNs (AMN) are 80 cm from EUT and at least 80
from other units and other metal planes
For the actual test configuration, please refer to the attached file (Test Setup Photo).
4.2.6
EUT Operating Conditions
a. Placed the EUT on the testing table.
b. Set the EUT under transmission condition continuously at specific channel frequency.
Report No.: RF161228C15-9
Page No. 28 / 38
Report Format Version: 6.1.1
4.2.7
Test Results
Mode A
Frequency Range
150kHz ~ 30MHz
Input Power
120Vac, 60Hz
Tested by
Toby Tian
Frequency
No
(MHz)
0.15000
0.16526
0.18910
0.24407
4.53311
13.56130
Correction
Factor
(dB)
10.11
10.12
10.13
10.15
10.40
10.96
Detector Function &
Resolution
Bandwidth
Environmental
Conditions
Test Date
Phase Of Power : Line (L)
Reading Value
Emission Level
(dBuV)
(dBuV)
Q.P.
AV.
Q.P.
AV.
40.75
30.72
50.86
40.83
36.73
23.97
46.85
34.09
32.92
22.34
43.05
32.47
26.18
17.49
36.33
27.64
24.87
19.68
35.27
30.08
35.86
35.39
46.82
46.35
Quasi-Peak (QP) /
Average (AV), 9kHz
25℃, 65%RH
2017/1/8
Limit
(dBuV)
Q.P.
AV.
66.00
56.00
65.20
55.20
64.08
54.08
61.96
51.96
56.00
46.00
60.00
50.00
Margin
(dB)
Q.P.
AV.
-15.14 -15.17
-18.35 -21.11
-21.03 -21.61
-25.63 -24.32
-20.73 -15.92
-13.18
-3.65
Remarks:
1. Q.P. and AV. are abbreviations of quasi-peak and average individually.
2. The emission levels of other frequencies were very low against the limit.
3. Margin value = Emission level – Limit value
4. Correction factor = Insertion loss + Cable loss
5. Emission Level = Correction Factor + Reading Value
Report No.: RF161228C15-9
Page No. 29 / 38
Report Format Version: 6.1.1
Frequency Range
150kHz ~ 30MHz
Input Power
120Vac, 60Hz
Tested by
Toby Tian
Frequency
No
(MHz)
0.15000
0.16139
0.20084
0.24384
4.25550
13.56130
Correction
Factor
(dB)
10.12
10.13
10.15
10.16
10.41
11.05
Detector Function &
Resolution
Bandwidth
Environmental
Conditions
Test Date
Phase Of Power : Neutral (N)
Reading Value
Emission Level
(dBuV)
(dBuV)
Q.P.
AV.
Q.P.
AV.
44.14
30.76
54.26
40.88
38.95
25.03
49.08
35.16
33.16
21.64
43.31
31.79
26.45
16.94
36.61
27.10
22.55
17.17
32.96
27.58
36.19
36.53
47.24
47.58
Quasi-Peak (QP) /
Average (AV), 9kHz
25℃, 65%RH
2017/1/8
Limit
(dBuV)
Q.P.
AV.
66.00
56.00
65.39
55.39
63.58
53.58
61.96
51.96
56.00
46.00
60.00
50.00
Margin
(dB)
Q.P.
AV.
-11.74 -15.12
-16.31 -20.23
-20.27 -21.79
-25.35 -24.86
-23.04 -18.42
-12.76
-2.42
Remarks:
1. Q.P. and AV. are abbreviations of quasi-peak and average individually.
2. The emission levels of other frequencies were very low against the limit.
3. Margin value = Emission level – Limit value
4. Correction factor = Insertion loss + Cable loss
5. Emission Level = Correction Factor + Reading Value
Report No.: RF161228C15-9
Page No. 30 / 38
Report Format Version: 6.1.1
Mode B
Frequency Range
150kHz ~ 30MHz
Input Power
120Vac, 60Hz
Tested by
Toby Tian
Frequency
No
(MHz)
0.15391
0.16564
0.19305
0.22429
4.42363
13.55739
Correction
Factor
(dB)
10.12
10.12
10.14
10.14
10.39
10.96
Detector Function &
Resolution
Bandwidth
Environmental
Conditions
Test Date
Phase Of Power : Line (L)
Reading Value
Emission Level
(dBuV)
(dBuV)
Q.P.
AV.
Q.P.
AV.
41.08
26.53
51.20
36.65
39.68
24.50
49.80
34.62
35.07
22.60
45.21
32.74
30.07
18.42
40.21
28.56
19.41
12.62
29.80
23.01
30.29
35.61
41.25
46.57
Quasi-Peak (QP) /
Average (AV), 9kHz
25℃, 65%RH
2017/2/10
Limit
(dBuV)
Q.P.
AV.
65.79
55.79
65.18
55.18
63.90
53.90
62.66
52.66
56.00
46.00
60.00
50.00
Margin
(dB)
Q.P.
AV.
-14.59 -19.14
-15.38 -20.56
-18.69 -21.16
-22.45 -24.10
-26.20 -22.99
-18.75
-3.43
Remarks:
1. Q.P. and AV. are abbreviations of quasi-peak and average individually.
2. The emission levels of other frequencies were very low against the limit.
3. Margin value = Emission level – Limit value
4. Correction factor = Insertion loss + Cable loss
5. Emission Level = Correction Factor + Reading Value
Report No.: RF161228C15-9
Page No. 31 / 38
Report Format Version: 6.1.1
Frequency Range
150kHz ~ 30MHz
Input Power
120Vac, 60Hz
Tested by
Toby Tian
Frequency
No
(MHz)
0.16173
0.18903
0.23216
0.27120
4.50183
13.56130
Correction
Factor
(dB)
10.13
10.14
10.15
10.16
10.42
11.05
Detector Function &
Resolution
Bandwidth
Environmental
Conditions
Test Date
Phase Of Power : Neutral (N)
Reading Value
Emission Level
(dBuV)
(dBuV)
Q.P.
AV.
Q.P.
AV.
40.87
28.77
51.00
38.90
35.97
24.09
46.11
34.23
30.05
17.62
40.20
27.77
24.56
16.22
34.72
26.38
19.36
11.13
29.78
21.55
31.63
36.27
42.68
47.32
Quasi-Peak (QP) /
Average (AV), 9kHz
25℃, 65%RH
2017/2/10
Limit
(dBuV)
Q.P.
AV.
65.37
55.37
64.08
54.08
62.37
52.37
61.08
51.08
56.00
46.00
60.00
50.00
Margin
(dB)
Q.P.
AV.
-14.37 -16.47
-17.97 -19.85
-22.17 -24.60
-26.36 -24.70
-26.22 -24.45
-17.32
-2.68
Remarks:
1. Q.P. and AV. are abbreviations of quasi-peak and average individually.
2. The emission levels of other frequencies were very low against the limit.
3. Margin value = Emission level – Limit value
4. Correction factor = Insertion loss + Cable loss
5. Emission Level = Correction Factor + Reading Value
Report No.: RF161228C15-9
Page No. 32 / 38
Report Format Version: 6.1.1
4.3
Frequency Stability
4.3.1
Limits of Frequency Stability Measurement
The frequency tolerance of the carrier signal shall be maintained within +/- 0.01 % of the operating frequency
over a temperature variation of –20 degrees to 50 degrees C at normal supply voltage, and for a variation in
the primary supply voltage from 85 % to 115% of the rated supply voltage at a temperature of 20 degrees C.
4.3.2
Test Setup
Temperature
Chamber
Spectrum Analyzer
DC Power Supply
4.3.3
Test Instruments
Refer to section 4.1.2 to get information of above instrument.
4.3.4
Test Procedure
a. The EUT was placed inside the environmental test chamber and powered by nominal DC voltage.
b. Turned the EUT on and coupled its output to a spectrum analyzer.
c. Turned the EUT off and set the chamber to the highest temperature specified.
d. Allowed sufficient time (approximately 30 min) for the temperature of the chamber to stabilize then turned
the EUT on and measured the operating frequency after 2, 5, and 10 minutes.
e. Repeated step 2 and 3 with the temperature chamber set to the lowest temperature.
f.
The test chamber was allowed to stabilize at +20 degree C for a minimum of 30 minutes. The supply
voltage was then adjusted on the EUT from 85 % to 115 % and the frequency record.
4.3.5
Deviation fromTest Standard
No deviation.
4.3.6
EUT Operating Conditions
a. Placed the EUT on the testing table.
b. Set the EUT under transmission condition continuously at specific channel frequency.
Report No.: RF161228C15-9
Page No. 33 / 38
Report Format Version: 6.1.1
4.3.7
Test Result
Frequency Stability Versus Temperature
0 Minute
2 Minute
5 Minute
10 Minute
Temp. Power Measured Frequency Measured Frequency Measured Frequency Measured Frequency
Supply
Frequency
Drift
Frequency
Drift
Frequency
Drift
Frequency
Drift
(℃)
(Vdc)
(MHz)
(MHz)
(MHz)
(MHz)
55
13.559941 -0.00044 13.559953 -0.00035 13.559954 -0.00034 13.559944 -0.00041
50
13.559995 -0.00004 13.560008
0.00006
13.560003
0.00002
13.560010
0.00007
40
13.560020
0.00015
13.560024
0.00018
13.560019
0.00014
13.560015
0.00011
30
13.560031
0.00023
13.560033
0.00024
13.560034
0.00025
13.560047
0.00035
20
13.559971 -0.00021 13.559946 -0.00040 13.559961 -0.00029 13.559956 -0.00032
10
13.559980 -0.00015 13.559991 -0.00007 13.559989 -0.00008 13.559976 -0.00018
13.560021
0.00015
13.560028
0.00021
13.560025
0.00018
13.560012
0.00009
-10
13.560027
0.00020
13.560032
0.00024
13.560019
0.00014
13.560016
0.00012
-20
13.560045
0.00033
13.560036
0.00027
13.560035
0.00026
13.560048
0.00035
-30
13.560045
0.00033
13.560042
0.00031
13.560030
0.00022
13.560036
0.00027
Frequency Stability Versus Voltage
0 Minute
2 Minute
5 Minute
10 Minute
Power
Temp.
Measured Frequency Measured Frequency Measured Frequency Measured Frequency
Supply
Frequency
Drift
Frequency
Drift
Frequency
Drift
Frequency
Drift
(℃)
(Vdc)
(MHz)
(MHz)
(MHz)
(MHz)
20
4.4
13.559969 -0.00023 13.559947 -0.00039 13.559962 -0.00028 13.559952 -0.00035
13.559971 -0.00021 13.559946 -0.00040 13.559961 -0.00029 13.559956 -0.00032
3.6
13.559970 -0.00022 13.559949 -0.00038 13.559966 -0.00025 13.559954 -0.00034
Report No.: RF161228C15-9
Page No. 34 / 38
Report Format Version: 6.1.1
4.4
4.4.1
20 dB Bandwidth
Limits of 20 dB Bandwidth Measurement
The 20 dB bandwidth shall be specified in operating frequency band.
4.4.2
Test Setup
Refer to section 4.1.5.
4.4.3
Test Instruments
Refer to section 4.1.2 to get information of above instrument.
4.4.4
Test Procedures
The bandwidth of the fundamental frequency was measured by spectrum analyzer with 1 kHz RBW and 3 kHz
VBW. The 20 dB bandwidth is defined as the total spectrum the power of which is higher than peak power
minus 20 dB.
4.4.5
Deviation from Test Standard
No deviation.
4.4.6
EUT Operating Conditions
a. Placed the EUT on the testing table.
b. Set the EUT under transmission condition continuously at specific channel frequency.
Report No.: RF161228C15-9
Page No. 35 / 38
Report Format Version: 6.1.1
4.4.7
Test Results
20 dBc Point (Low)
20 dBc Point (High)
13.558589744 MHz
13.561185897 MHz
Operating Frequency Band
Pass / Fail
(MHz)
13.553~13.567
Pass
Spectrum Plot Of Value
Ref
87 dBµV
Att
5 dB
* RBW
1 kHz
* VBW
3 kHz
49.30 dBµV
SWT
20 ms
13.559935897 MHz
Marker 1 [T1 ]
Marker 2 [T1 ]
29.72 dBµV
80
13.558589744 MHz
Marker 3 [T1 ]
1 AP
30.04 dBµV
70
VIEW
13.561185897 MHz
60
50
D1 49.3 dBµV
40
30
3DB
D2 29.3 dBµV
20
10
-10
Center
13.56 MHz
Date: 9.FEB.2017
2 kHz/
Span
20 kHz
16:48:02
Report No.: RF161228C15-9
Page No. 36 / 38
Report Format Version: 6.1.1
5
Pictures of Test Arrangements
Please refer to the attached file (Test Setup Photo).
Report No.: RF161228C15-9
Page No. 37 / 38
Report Format Version: 6.1.1
Appendix – Information on the Testing Laboratories
We, Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, were founded in 1988 to
provide our best service in EMC, Radio, Telecom and Safety consultation. Our laboratories are accredited and
approved according to ISO/IEC 17025.
If you have any comments, please feel free to contact us at the following:
Linko EMC/RF Lab
Hsin Chu EMC/RF/Telecom Lab
Tel: 886-2-26052180
Tel: 886-3-6668565
Fax: 886-2-26051924
Fax: 886-3-6668323
Hwa Ya EMC/RF/Safety
Tel: 886-3-3183232
Fax: 886-3-3270892
Email: service.adt@tw.bureauveritas.com
Web Site: www.bureauveritas-adt.com
The address and road map of all our labs can be found in our web site also.
--- END ---
Report No.: RF161228C15-9
Page No. 38 / 38
Report Format Version: 6.1.1
Download: A002 ASUS Phone Test Report 1 ASUSTeK Computer Inc
Mirror Download [FCC.gov]A002 ASUS Phone Test Report 1 ASUSTeK Computer Inc
Document ID3314265
Application ID7PiJNf5xlLdA5utkFiEeYw==
Document DescriptionRF Test Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize103.55kB (1294354 bits)
Date Submitted2017-03-13 00:00:00
Date Available2017-03-13 00:00:00
Creation Date2017-12-25 19:39:07
Producing SoftwareGPL Ghostscript 9.18
Document Lastmod2017-12-25 19:39:07
Document TitleTest Report 1
Document CreatorMicrosoft® Office Word 2007
Document Author: Jim

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.5
Linearized                      : No
Page Count                      : 1
XMP Toolkit                     : XMP toolkit 2.9.1-13, framework 1.6
About                           : uuid:7efca191-9f25-11f2-0000-02c7314339d4
Producer                        : GPL Ghostscript 9.18
Modify Date                     : 2017:07:12 13:49:38Z
Create Date                     : 2017:07:12 13:49:38Z
Creator Tool                    : UnknownApplication
Document ID                     : uuid:7efca191-9f25-11f2-0000-02c7314339d4
Format                          : application/pdf
Title                           : Untitled
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2018
