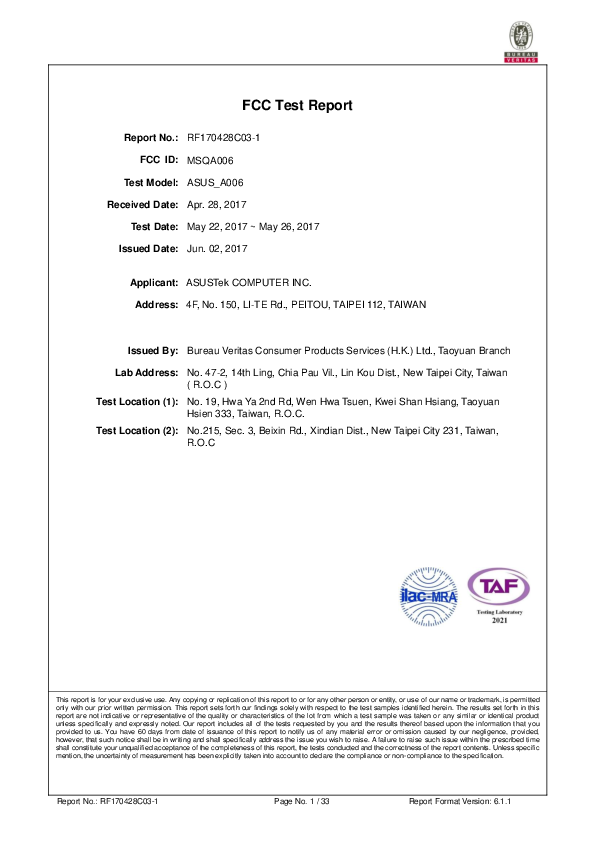

FCC Test Report
Report No.: RF170428C03-1
FCC ID: MSQA006
Test Model: ASUS_A006
Received Date: Apr. 28, 2017
Test Date: May 22, 2017 ~ May 26, 2017
Issued Date: Jun. 02, 2017
Applicant: ASUSTek COMPUTER INC.
Address: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch
Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan
( R.O.C )
Test Location (1): No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan
Hsien 333, Taiwan, R.O.C.
Test Location (2): No.215, Sec. 3, Beixin Rd., Xindian Dist., New Taipei City 231, Taiwan,
R.O.C
This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted
only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this
report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product
unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you
provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided,
however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time
shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific
mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification.
Report No.: RF170428C03-1
Page No. 1 / 33
Report Format Version: 6.1.1
Table of Contents
Release Control Record .................................................................................................................................. 4
1 Certificate of Conformity ........................................................................................................................... 5
2 Summary of Test Results ........................................................................................................................... 6
2.1 Measurement Uncertainty ..................................................................................................................... 6
2.2 Modification Record .............................................................................................................................. 6
3 General Information ................................................................................................................................... 7
3.1 General Description of EUT .................................................................................................................. 7
3.2 Description of Test Modes..................................................................................................................... 8
3.2.1 Test Mode Applicability and Tested Channel Detail .................................................................... 9
3.3 Description of Support Units ................................................................................................................ 11
3.3.1 Configuration of System under Test .......................................................................................... 11
3.4 General Description of Applied Standards ........................................................................................... 11
4 Test Types and ResultsSDR660 .............................................................................................................. 12
4.1 Radiated Emission and Bandedge Measurement .............................................................................. 12
4.1.1 Limits of Radiated Emission and Bandedge Measurement ..................................................... 12
4.1.2 Test Instruments ....................................................................................................................... 13
4.1.3 Test Procedures ........................................................................................................................ 14
4.1.4 Deviation from Test Standard ................................................................................................... 14
4.1.5 Test Set Up ............................................................................................................................... 15
4.1.6 EUT Operating Conditions ........................................................................................................ 15
4.1.7 Test Results .............................................................................................................................. 16
4.2 Conducted Emission Measurement .................................................................................................... 20
4.2.1 Limits of Conducted Emission Measurement ........................................................................... 20
4.2.2 Test Instruments ....................................................................................................................... 20
4.2.3 Test Procedures ........................................................................................................................ 20
4.2.4 Deviation from Test Standard ................................................................................................... 20
4.2.5 TEST SETUP............................................................................................................................ 21
4.2.6 EUT Operating Conditions ........................................................................................................ 21
4.2.7 Test Results .............................................................................................................................. 22
4.3 6 dB Bandwidth Measurement ............................................................................................................ 24
4.3.1 Limits of 6 dB Bandwidth Measurement ................................................................................... 24
4.3.2 Test Setup ................................................................................................................................. 24
4.3.3 Test Instruments ....................................................................................................................... 24
4.3.4 Test Procedure ......................................................................................................................... 24
4.3.5 Deviation fromTest Standard .................................................................................................... 24
4.3.6 EUT Operating Conditions ........................................................................................................ 24
4.3.7 Test Result ................................................................................................................................ 25
4.4 Conducted Output Power Measurement ............................................................................................ 26
4.4.1 Limits of Conducted Output Power Measurement.................................................................... 26
4.4.2 Test Setup ................................................................................................................................. 26
4.4.3 Test Instruments ....................................................................................................................... 26
4.4.4 Test Procedures ........................................................................................................................ 26
4.4.5 Deviation from Test Standard ................................................................................................... 26
4.4.6 EUT Operating Conditions ........................................................................................................ 26
4.4.7 Test Results .............................................................................................................................. 26
4.5 Power Spectral Density Measurement ............................................................................................... 27
4.5.1 Limits of Power Spectral Density Measurement ....................................................................... 27
4.5.2 Test Setup ................................................................................................................................. 27
4.5.3 Test Instruments ....................................................................................................................... 27
4.5.4 Test Procedure ......................................................................................................................... 27
4.5.5 Deviation from Test Standard ................................................................................................... 27
4.5.6 EUT Operating Condition ......................................................................................................... 27
4.5.7 Test Results .............................................................................................................................. 28
Report No.: RF170428C03-1
Page No. 2 / 33
Report Format Version: 6.1.1
4.6 Conducted Out of Band Emission Measurement ............................................................................... 29
4.6.1 Limits of Conducted Out of Band Emission Measurement ....................................................... 29
4.6.2 Test Setup ................................................................................................................................. 29
4.6.3 Test Instruments ....................................................................................................................... 29
4.6.4 Test Procedure ......................................................................................................................... 29
4.6.5 Deviation from Test Standard ................................................................................................... 29
4.6.6 EUT Operating Condition ......................................................................................................... 29
4.6.7 TEST RESULTS ....................................................................................................................... 30
5 Pictures of Test Arrangements................................................................................................................ 32
Appendix – Information on the Testing Laboratories ................................................................................ 33
Report No.: RF170428C03-1
Page No. 3 / 33
Report Format Version: 6.1.1
Release Control Record
Issue No.
Description
Date Issued
RF170428C03-1
Original Release
Jun. 02, 2017
Report No.: RF170428C03-1
Page No. 4 / 33
Report Format Version: 6.1.1
1
Certificate of Conformity
Product: ASUS Phone
Brand: ASUS
Test Model: ASUS_A006
Sample Status: Identical Prototype
Applicant: ASUSTek COMPUTER INC.
Test Date: May 22, 2017 ~ May 26, 2017
Standards: 47 CFR FCC Part 15, Subpart C (Section 15.247)
ANSI C63.10:2013
The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd.,
Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data
evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts
of the measurements of the sample’s EMC characteristics under the conditions specified in this report.
Prepared by :
Date:
Jun. 02, 2017
Date:
Jun. 02, 2017
Ivonne Wu / Supervisor
Approved by :
David Huang / Project Engineer
Report No.: RF170428C03-1
Page No. 5 / 33
Report Format Version: 6.1.1
2
Summary of Test Results
47 CFR FCC Part 15, Subpart C (Section 15.247)
FCC
Test Item
Result
AC Power Conducted Emission
Pass
Clause
Remarks
Meet the requirement of limit.
15.207
Minimum passing margin is -26.60 dB
at 0.69400 MHz.
Meet the requirement of limit.
15.205 & 209
Radiated Emissions
Pass
Minimum passing margin is -12.11 dB
at 2496.80 MHz.
15.247(d)
Band Edge Measurement
Pass
Meet the requirement of limit.
15.247(d)
Antenna Port Emission
Pass
Meet the requirement of limit.
15.247(a)(2)
6 dB Bandwidth
Pass
Meet the requirement of limit.
15.247(b)
Conducted power
Pass
Meet the requirement of limit.
15.247(e)
Power Spectral Density
Pass
Meet the requirement of limit.
15.203
Antenna Requirement
Pass
No antenna connector is used.
2.1
Measurement Uncertainty
Where relevant, the following measurement uncertainty levels have been estimated for tests performed on
the EUT:
The listed uncertainties are the worst case uncertainty for the entire range of measurement. Please note that
the uncertainty values are provided for informational purposes only and are not used in determining the
PASS/FAIL results.
Measurement
Frequency
Expended Uncertainty
(k=2) (±)
Conducted Emissions at mains ports
150 kHz ~ 30 MHz
2.44 dB
30 MHz ~ 200 MHz
2.0153 dB
200 MHz ~1000 MHz
2.0224 dB
1 GHz ~ 18 GHz
1.0121 dB
18 GHz ~ 40 GHz
1.1508 dB
Radiated Emissions up to 1 GHz
Radiated Emissions above 1 GHz
2.2
Modification Record
There were no modifications required for compliance.
Report No.: RF170428C03-1
Page No. 6 / 33
Report Format Version: 6.1.1
3
3.1
General Information
General Description of EUT
Product
ASUS Phone
Brand
ASUS
Test Model
ASUS_A006
Status of EUT
Identical Prototype
5.0 Vdc (host equipment)
Power Supply Rating
5.0 Vdc or 9 Vdc (adapter)
3.85 Vdc (Li-ion battery)
Modulation Type
GFSK
Transfer Rate
1 Mbps
Operating Frequency
2402 ~ 2480 MHz
Number of Channel
40
Output Power
1.236 mW
Antenna Type
PIFA antenna with -2 dBi gain
Antenna Connector
N/A
Accessory Device
Refer to Note as below
Data Cable Supplied
Refer to Note as below
Note:
1. The EUT’s accessories list refers to Ext. Pho.
2. The above EUT information is declared by manufacturer and for more detailed features description,
please refer to the manufacturer's specifications or User's Manual.
Report No.: RF170428C03-1
Page No. 7 / 33
Report Format Version: 6.1.1
3.2
Description of Test Modes
40 channels are provided to this EUT:
Channel
Freq. (MHz)
Channel
Freq. (MHz)
Channel
Freq. (MHz)
Channel
Freq. (MHz)
2402
10
2422
20
2442
30
2462
2404
11
2424
21
2444
31
2464
2406
12
2426
22
2446
32
2466
2408
13
2428
23
2448
33
2468
2410
14
2430
24
2450
34
2470
2412
15
2432
25
2452
35
2472
2414
16
2434
26
2454
36
2474
2416
17
2436
27
2456
37
2476
2418
18
2438
28
2458
38
2478
2420
19
2440
29
2460
39
2480
Report No.: RF170428C03-1
Page No. 8 / 33
Report Format Version: 6.1.1
3.2.1
Test Mode Applicability and Tested Channel Detail
Applicable To
EUT Configure
Mode
RE1G
RE<1G
PLC
APCM
√
√
√
√
Where
Description
RE1G: Radiated Emission above 1 GHz
PLC: Power Line Conducted Emission
RE<1G: Radiated Emission below 1 GHz
APCM: Antenna Port Conducted Measurement
Note: The EUT had been pre-tested on the positioned of each 3 axis. The worst case was found when positioned on Y-plane.
Note: “-”means no effect.
Radiated Emission Test (Above 1 GHz):
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations
between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
EUT Configure
Mode
Available Channel
Tested Channel
Modulation Type
Data Rate (Mbps)
0 to 39
0, 19, 39
GFSK
Radiated Emission Test (Below 1 GHz):
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations
between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
EUT Configure
Mode
Available Channel
Tested Channel
Modulation Type
Data Rate (Mbps)
0 to 39
39
GFSK
Power Line Conducted Emission Test:
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations
between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
EUT Configure
Mode
Available Channel
Tested Channel
Modulation Type
Data Rate (Mbps)
0 to 39
39
GFSK
Report No.: RF170428C03-1
Page No. 9 / 33
Report Format Version: 6.1.1
Antenna Port Conducted Measurement:
This item includes all test value of each mode, but only includes spectrum plot of worst value of each
mode.
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations
between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
EUT Configure
Mode
Available Channel
Tested Channel
Modulation Type
Data Rate (Mbps)
0 to 39
0, 19, 39
GFSK
Test Condition:
Applicable To
Environmental Conditions
Input Power
Tested by
RE1G
25 deg. C, 65 % RH
120 Vac, 60 Hz
Charles Hsiao
RE<1G
25 deg. C, 65 % RH
120 Vac, 60 Hz
Charles Hsiao
PLC
25 deg. C, 65 % RH
120 Vac, 60 Hz
Getaz Yang
APCM
25 deg. C, 65 % RH
3.85 Vdc
Anson Lin
Report No.: RF170428C03-1
Page No. 10 / 33
Report Format Version: 6.1.1
3.3
Description of Support Units
The EUT has been tested as an independent unit together with other necessary accessories or support units.
The following support units or accessories were used to form a representative test configuration during the
tests.
No.
Product
Brand
Model No.
Serial No.
FCC ID
1.
Earphone
FUNKEY
FK-130102
N/A
N/A
No.
1.
Signal Cable Description Of The Above Support Units
N/A
Note:
1. All power cords of the above support units are non-shielded (1.8m).
3.3.1
Configuration of System under Test
EUT
(Power from AC Adapter)
Earphone
*Test Table
3.4
General Description of Applied Standards
The EUT is a RF Product. According to the specifications of the manufacturer, it must comply with the
requirements of the following standards:
FCC Part 15, Subpart C (15.247)
558074 D01 DTS Meas Guidance v04
ANSI C63.10-2013
All test items have been performed and recorded as per the above standards.
Note: The EUT has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC).
The test report has been issued separately.
Report No.: RF170428C03-1
Page No. 11 / 33
Report Format Version: 6.1.1
4
Test Types and Results
4.1
4.1.1
Radiated Emission and Bandedge Measurement
Limits of Radiated Emission and Bandedge Measurement
Radiated emissions which fall in the restricted bands must comply with the radiated emission limits specified
as below table. Other emissions shall be at least 20 dB below the highest level of the desired power:
Frequencies
(MHz)
Field Strength
(microvolts/meter)
Measurement Distance
(meters)
0.009 ~ 0.490
2400/F (kHz)
300
0.490 ~ 1.705
24000/F (kHz)
30
1.705 ~ 30.0
30
30
30 ~ 88
100
88 ~ 216
150
216 ~ 960
200
Above 960
500
Note:
1.
The lower limit shall apply at the transition frequencies.
2.
Emission level (dBuV/m) = 20 log Emission level (uV/m).
3.
For frequencies above 1000 MHz, the field strength limits are based on average detector, however, the
peak field strength of any emission shall not exceed the maximum permitted average limits, specified
above by more than 20 dB under any condition of modulation.
Report No.: RF170428C03-1
Page No. 12 / 33
Report Format Version: 6.1.1
4.1.2
Test Instruments
Description &
Manufacturer
Test Receiver
Agilent Technologies
Spectrum Analyzer
ROHDE & SCHWARZ
BILOG Antenna
SCHWARZBECK
HORN Antenna
ETS-Lindgren
HORN Antenna
SCHWARZBECK
Fixed Attenuator
Mini-Circuits
Loop Antenna
Preamplifier
Agilent
Preamplifier
Agilent
Power Meter
Anritsu
Power Sensor
Anritsu
Model No.
Serial No.
Date of Calibration
Due Date of
Calibration
N9038A
MY52260177
Jun. 21, 2016
Jun. 20, 2017
FSU43
101261
Dec. 13, 2016
Dec. 12, 2017
VULB9168
9168-472
Dec. 16, 2016
Dec. 15, 2017
3117
00143293
Dec. 29, 2016
Dec. 28, 2017
BBHA 9170
9170-480
Dec. 14, 2016
Dec. 13, 2017
BW-N10W5+
NA
Jul. 08, 2016
Jul. 07, 2017
EM-6879
269
Aug. 11, 2016
Aug. 10, 2017
310N
187226
Jun. 24, 2016
Jun. 23, 2017
83017A
MY39501357
Jun. 24, 2016
Jun. 23, 2017
ML2495A
1232002
Sep. 08, 2016
Sep. 07, 2017
MA2411B
1207325
Sep. 08, 2016
Sep. 07, 2017
Jun. 24, 2016
Jun. 23, 2017
Jun. 24, 2016
Jun. 23, 2017
RF signal cable
ETS-LINDGREN
5D-FB
RF signal cable
ETS-LINDGREN
8D-FB
Software
BV ADT
Antenna Tower
MF
Turn Table
MF
Antenna Tower &Turn
Table Controller
MF
Cable-CH1-01(R
FC-SMS-100-SM
S-120+RFC-SMS
-100-SMS-400)
Cable-CH1-02(R
FC-SMS-100-SM
S-24)
E3
8.130425b
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
MF-7802
NA
NA
NA
Note: 1. The calibration interval of the above test instruments is 12 months and the calibrations are
traceable to NML/ROC and NIST/USA.
2. The test was performed in HsinTien Chamber 1.
3. The horn antenna and preamplifier (model: 83017A) are used only for the measurement of
emission frequency above 1GHz if tested.
4. The FCC Site Registration No. is 149147.
5. The IC Site Registration No. is IC7450I-1.
Report No.: RF170428C03-1
Page No. 13 / 33
Report Format Version: 6.1.1
4.1.3
a.
Test Procedures
The EUT was placed on the top of a rotating table 0.8 meters (for below 1 GHz) / 1.5 meters (for above 1
GHz) above the ground at 3 meter chamber room for test. The table was rotated 360 degrees to
determine the position of the highest radiation.
b.
The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top
of a variable-height antenna tower.
c.
The height of antenna is varied from one meter to four meters above the ground to determine the
maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to
make the measurement.
d.
For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned
to heights from 1 meter to 4 meters and the rotatable table was turned from 0 degrees to 360 degrees to
find the maximum reading.
e.
The test-receiver system was set to quasi-peak detect function and specified bandwidth with maximum
hold mode when the test frequency is below 1 GHz.
f.
The test-receiver system was set to peak and average detected function and specified bandwidth with
maximum hold mode when the test frequency is above 1 GHz. If the peak reading value also meets
average limit, measurement with the average detector is unnecessary.
Note:
1.
The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120 kHz & 360 kHz
for Quasi-peak detection (QP) at frequency below 1 GHz.
2.
The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 3 MHz
for Peak detection (PK) at frequency above 1 GHz.
3.
The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 1/T for
Average (Duty cycle < 98 %) detection at frequency above 1 GHz.
4.
The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and the video bandwidth is 10 Hz
(Duty cycle ≥ 98 %) for Average detection (AV) at frequency above 1 GHz.
5.
All modes of operation were investigated and the worst-case emissions are reported.
4.1.4
Deviation from Test Standard
No deviation.
Report No.: RF170428C03-1
Page No. 14 / 33
Report Format Version: 6.1.1
4.1.5
Test Set Up

Ant. Tower
1-4m
Variable
3m
10m
EUT&
Support Units
Turn Table
80cm
Ground Plane
Test Receiver

Ant. Tower
EUT&
Support Units
1-4m
Variable
3m
Turn Table
Absorber
150cm
Ground Plane
Test Receiver
For the actual test configuration, please refer to the attached file (Test Setup Photo).
4.1.6
EUT Operating Conditions
a. Placed the EUT on the testing table.
b. Set the EUT under transmission condition continuously at specific channel frequency.
Report No.: RF170428C03-1
Page No. 15 / 33
Report Format Version: 6.1.1
4.1.7
Test Results
ABOVE 1 GHz DATA:
EUT Test Condition
Measurement Detail
Channel
Channel 0
Frequency Range
1 GHz ~ 25 GHz
Input Power
120 Vac, 60 Hz
Detector Function
Peak (PK)
Average (AV)
Environmental
Conditions
25 deg. C, 65 % RH
Tested By
Charles Hsiao
Antennal Polarity & Test Distance: Horizontal at 3 m
Frequency
(MHz)
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Limit
(dBuV/m)
Margin
(dB)
Antenna
Factor
(dB/m)
Cable
Loss (dB)
Preamp
Factor
(dB)
Antenna
Height
(cm)
Table
Angle
(Degree)
2361.03
52.48
50.85
74
-21.52
31.76
2383.98
41.18
39.49
54
-12.82
31.78
5.37
35.5
170
354
Peak
5.4
35.49
170
354
Average
2402
92.65
90.92
2402
93.55
91.82
31.8
5.4
35.47
170
354
Average
31.8
5.4
35.47
170
354
4804
38.11
30.02
54
Peak
-15.89
33.96
8.25
34.12
195
263
Average
4804
47.55
39.46
74
-26.45
33.96
8.25
34.12
195
263
Peak
Preamp
Factor
(dB)
Antenna
Height
(cm)
Table
Angle
(Degree)
Remark
Remark
Antennal Polarity & Test Distance: Vertical at 3 m
Frequency
(MHz)
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Limit
(dBuV/m)
Margin
(dB)
Antenna
Factor
(dB/m)
Cable
Loss (dB)
2342.58
51.82
50.25
74
-22.18
31.74
5.33
35.5
181
89
Peak
2386.77
41.46
39.75
54
-12.54
31.8
5.4
35.49
181
89
Average
2402
94.78
93.05
31.8
5.4
35.47
181
89
Average
2402
95.86
94.13
31.8
5.4
35.47
181
89
Peak
4804
39.24
31.15
54
-14.76
33.96
8.25
34.12
195
107
Average
4804
48.26
40.17
74
-25.74
33.96
8.25
34.12
195
107
Peak
Remarks:
1. Emission Level = Read Level + Antenna Factor + Cable Loss - Preamp Factor
Margin value = Emission level – Limit value
2. 2402 MHz: Fundamental frequency.
Report No.: RF170428C03-1
Page No. 16 / 33
Report Format Version: 6.1.1
EUT Test Condition
Measurement Detail
Channel
Channel 19
Frequency Range
1 GHz ~ 25 GHz
Input Power
120 Vac, 60 Hz
Detector Function
Peak (PK)
Average (AV)
Environmental
Conditions
25 deg. C, 65 % RH
Tested By
Charles Hsiao
Antennal Polarity & Test Distance: Horizontal at 3 m
Frequency
(MHz)
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Limit
(dBuV/m)
Margin
(dB)
Antenna
Factor
(dB/m)
Cable
Loss (dB)
Preamp
Factor
(dB)
Antenna
Height
(cm)
Table
Angle
(Degree)
2349.69
51.92
50.35
74
-22.08
31.74
2389.38
41.12
39.41
54
-12.88
31.8
5.33
35.5
170
354
Peak
5.4
35.49
170
354
Average
2440
93.63
91.78
2440
94.89
93.04
31.85
5.46
35.46
170
354
Average
31.85
5.46
35.46
170
354
2489
52.34
50.33
74
Peak
-21.66
31.9
5.53
35.42
170
354
2495.84
41.78
39.76
54
Peak
-12.22
31.9
5.53
35.41
170
354
Average
Remark
Remark
Antennal Polarity & Test Distance: Vertical at 3 m
Frequency
(MHz)
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Limit
(dBuV/m)
Margin
(dB)
Antenna
Factor
(dB/m)
Cable
Loss (dB)
Preamp
Factor
(dB)
Antenna
Height
(cm)
Table
Angle
(Degree)
2331.96
51.79
50.25
74
-22.21
31.73
5.33
35.52
181
89
Peak
2389.29
41.12
39.41
54
-12.88
31.8
5.4
35.49
181
89
Average
2440
95.71
93.86
31.85
5.46
35.46
181
89
Average
2440
96.78
94.93
31.85
5.46
35.46
181
89
Peak
2492.2
41.75
39.73
54
-12.25
31.9
5.53
35.41
181
89
Average
2495.84
52.28
50.26
74
-21.72
31.9
5.53
35.41
181
89
Peak
Remarks:
1. Emission Level = Read Level + Antenna Factor + Cable Loss - Preamp Factor
Margin value = Emission level – Limit value
2. 2440 MHz: Fundamental frequency.
Report No.: RF170428C03-1
Page No. 17 / 33
Report Format Version: 6.1.1
EUT Test Condition
Measurement Detail
Channel
Channel 39
Frequency Range
1 GHz ~ 25 GHz
Input Power
120 Vac, 60 Hz
Detector Function
Peak (PK)
Average (AV)
Environmental
Conditions
25 deg. C, 65 % RH
Tested By
Charles Hsiao
Antennal Polarity & Test Distance: Horizontal at 3 m
Frequency
(MHz)
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Antenna
Factor
(dB/m)
Cable
Loss (dB)
Preamp
Factor
(dB)
Antenna
Height
(cm)
Table
Angle
(Degree)
Remark
2480
92.79
2480
93.92
90.83
31.88
5.5
35.42
170
354
Average
91.96
31.88
5.5
35.42
170
354
Peak
2493.28
52.03
50.01
74
2496.8
41.89
39.87
54
-21.97
31.9
5.53
35.41
170
354
Peak
-12.11
31.9
5.53
35.41
170
354
Average
4960
38.13
29.86
4960
47.57
39.3
54
-15.87
33.99
8.29
34.01
196
153
Average
74
-26.43
33.99
8.29
34.01
196
153
Peak
Limit
(dBuV/m)
Margin
(dB)
Antennal Polarity & Test Distance: Vertical at 3 m
Frequency
(MHz)
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Antenna
Factor
(dB/m)
Cable
Loss (dB)
Preamp
Factor
(dB)
Antenna
Height
(cm)
Table
Angle
(Degree)
Remark
2480
94.66
2480
96.02
92.7
31.88
5.5
35.42
181
89
Average
94.06
31.88
5.5
35.42
181
89
2497.6
51.58
49.56
74
Peak
-22.42
31.9
5.53
35.41
181
89
2498.2
41.63
39.61
Peak
54
-12.37
31.9
5.53
35.41
181
89
Average
4960
38.43
4960
47.84
30.16
54
-15.57
33.99
8.29
34.01
127
166
Average
39.57
74
-26.16
33.99
8.29
34.01
127
166
Peak
Limit
(dBuV/m)
Margin
(dB)
Remarks:
1. Emission Level = Read Level + Antenna Factor + Cable Loss - Preamp Factor
Margin value = Emission level – Limit value
2. 2480 MHz: Fundamental frequency.
Report No.: RF170428C03-1
Page No. 18 / 33
Report Format Version: 6.1.1
9 kHz ~ 30 MHz DATA:
The amplitude of spurious emissions attenuated more than 20 dB below the permissible value is not required
to be report.
30 MHz ~ 1 GHz WORST-CASE DATA:
EUT Test Condition
Measurement Detail
Channel
Channel 39
Frequency Range
30 MHz ~ 1 GHz
Input Power
120 Vac, 60 Hz
Detector Function
Peak (PK)
Quasi-peak (QP)
Environmental
Conditions
25 deg. C, 65 % RH
Tested By
Charles Hsiao
Antennal Polarity & Test Distance: Horizontal at 3 m
Frequency
(MHz)
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Limit
(dBuV/m)
Margin
(dB)
Antenna
Factor
(dB/m)
Cable
Loss (dB)
Preamp
Factor
(dB)
Antenna
Height
(cm)
Table
Angle
(Degree)
Remark
81.57
5.78
28.36
40
-34.22
8.47
1.11
32.16
185
124
Peak
144.75
12.7
33.86
43.5
-30.8
9.73
1.38
32.27
163
234
Peak
250.59
11.38
28.63
46
-34.62
13
1.85
32.1
148
107
Peak
428.8
16.34
28.36
46
-29.66
17.75
2.41
32.18
169
134
Peak
521.2
19.38
28.31
46
-26.62
20.51
2.7
32.14
185
127
Peak
743.1
22.75
28.46
46
-23.25
23.27
3.16
32.14
142
108
Peak
Antennal Polarity & Test Distance: Vertical at 3 m
Frequency
(MHz)
Emission
Level
(dBuV/m)
Read
Level
(dBuV)
Limit
(dBuV/m)
Margin
(dB)
Antenna
Factor
(dB/m)
55.11
23.15
143.94
6.81
234.93
413.4
638.1
822.2
Cable
Loss (dB)
Preamp
Factor
(dB)
Antenna
Height
(cm)
Table
Angle
(Degree)
Remark
47.21
40
-16.85
28.09
43.5
-36.69
7.27
0.9
32.23
177
153
Peak
9.61
1.38
32.27
196
148
Peak
9.71
27.66
46
15.82
27.73
46
-36.29
12.36
1.85
32.16
187
113
Peak
-30.18
17.88
2.41
32.2
159
137
21.94
29.07
Peak
46
-24.06
22.1
2.93
32.16
195
142
23.84
28.9
Peak
46
-22.16
23.5
3.38
31.94
138
109
Peak
Remarks:
1. Emission Level = Read Level + Antenna Factor + Cable Loss - Preamp Factor
Margin value = Emission level – Limit value
Report No.: RF170428C03-1
Page No. 19 / 33
Report Format Version: 6.1.1
4.2
Conducted Emission Measurement
4.2.1
Limits of Conducted Emission Measurement
Conducted Limit (dBuV)
Frequency (MHz)
4.2.2
Quasi-peak
Average
0.15 - 0.5
66 - 56
56 - 46
0.50 - 5.0
56
46
5.0 - 30.0
60
50
Test Instruments
Description &
Manufacturer
Test Receiver
ROHDE & SCHWARZ
RF signal cable (with
10dB PAD)
Woken
LISN
ROHDE & SCHWARZ
(EUT)
LISN
ROHDE & SCHWARZ
(Peripheral)
Software
ADT
Model No.
Serial No.
Date Of
Calibration
Due Date Of
Calibration
ESCI
100613
Nov. 21, 2016
Nov. 20, 2017
5D-FB
Cable-cond1-01
Dec. 22, 2016
Dec. 21, 2017
ESH3-Z5
835239/001
Mar. 10, 2017
Mar. 09, 2018
ESH3-Z5
100311
Jul. 28, 2016
Jul. 27, 2017
BV ADT_Cond_
V7.3.7.3
NA
NA
NA
Note: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable
to NML/ROC and NIST/USA.
2. The test was performed in HwaYa Shielded Room 1.
3. The VCCI Site Registration No. is C-2040.
4.2.3
Test Procedures
a. The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being connected
to the power mains through a line impedance stabilization network (LISN). Other support units were
connected to the power mains through another LISN. The two LISNs provide 50 ohm/50 uH of coupling
impedance for the measuring instrument.
b. Both lines of the power mains connected to the EUT were checked for maximum conducted interference.
c. The frequency range from 150 kHz to 30 MHz was searched. Emission levels under (Limit – 20 dB) was
not recorded.
Note: All modes of operation were investigated and the worst-case emissions are reported.
4.2.4
Deviation from Test Standard
No deviation.
Report No.: RF170428C03-1
Page No. 20 / 33
Report Format Version: 6.1.1
4.2.5
TEST SETUP
Vertical Ground
Test Receiver
Reference Plane
40cm
EUT
80cm
LISN
Horizontal Ground
Reference Plane
Note: 1.Support units were connected to second LISN.
2.Both of LISNs (AMN) are 80 cm from EUT and at least 80
cm
from other units and other metal planes
support.
4.2.6
units.
EUT Operating Conditions
a. Placed the EUT on the testing table.
b. Set the EUT under transmission condition continuously at specific channel frequency.
Report No.: RF170428C03-1
Page No. 21 / 33
Report Format Version: 6.1.1
4.2.7
Test Results
Frequency Range
150kHz ~ 30MHz
Input Power
120Vac, 60Hz
Tested by
Getaz Yang
Frequency
No
(MHz)
0.15800
0.17801
0.51000
0.69400
9.04600
12.59000
Correction
Factor
(dB)
10.35
10.36
10.40
10.40
10.79
10.96
Detector Function &
Resolution
Bandwidth
Environmental
Conditions
Test Date
Phase Of Power : Line (L)
Reading Value
Emission Level
(dBuV)
(dBuV)
Q.P.
AV.
Q.P.
AV.
23.91
10.76
34.26
21.11
22.38
9.34
32.74
19.70
6.45
-2.26
16.85
8.14
19.00
7.91
29.40
18.31
6.68
-1.30
17.47
9.49
2.43
-3.24
13.39
7.72
Quasi-Peak (QP) /
Average (AV), 9kHz
25℃, 65%RH
2017/5/23
Limit
(dBuV)
Q.P.
AV.
65.57
55.57
64.58
54.58
56.00
46.00
56.00
46.00
60.00
50.00
60.00
50.00
Margin
(dB)
Q.P.
AV.
-31.31 -34.46
-31.84 -34.88
-39.15 -37.86
-26.60 -27.69
-42.53 -40.51
-46.61 -42.28
Remarks:
1. Q.P. and AV. are abbreviations of quasi-peak and average individually.
2. The emission levels of other frequencies were very low against the limit.
3. Margin value = Emission level – Limit value
4. Correction factor = Insertion loss + Cable loss
5. Emission Level = Correction Factor + Reading Value
Report No.: RF170428C03-1
Page No. 22 / 33
Report Format Version: 6.1.1
Frequency Range
150kHz ~ 30MHz
Input Power
120Vac, 60Hz
Tested by
Getaz Yang
Frequency
No
(MHz)
0.19400
0.68200
1.22138
1.75800
4.37400
8.07400
Correction
Factor
(dB)
10.14
10.16
10.18
10.22
10.35
10.48
Detector Function &
Resolution
Bandwidth
Environmental
Conditions
Test Date
Phase Of Power : Neutral (N)
Reading Value
Emission Level
(dBuV)
(dBuV)
Q.P.
AV.
Q.P.
AV.
15.59
3.74
25.73
13.88
21.95
13.52
32.11
23.68
15.01
5.39
25.19
15.57
13.64
5.27
23.86
15.49
12.63
5.19
22.98
15.54
13.73
8.05
24.21
18.53
Quasi-Peak (QP) /
Average (AV), 9kHz
25℃, 65%RH
2017/5/23
Limit
(dBuV)
Q.P.
AV.
63.86
53.86
56.00
46.00
56.00
46.00
56.00
46.00
56.00
46.00
60.00
50.00
Margin
(dB)
Q.P.
AV.
-38.13 -39.98
-23.89 -22.32
-30.81 -30.43
-32.14 -30.51
-33.02 -30.46
-35.79 -31.47
Remarks:
1. Q.P. and AV. are abbreviations of quasi-peak and average individually.
2. The emission levels of other frequencies were very low against the limit.
3. Margin value = Emission level – Limit value
4. Correction factor = Insertion loss + Cable loss
5. Emission Level = Correction Factor + Reading Value
Report No.: RF170428C03-1
Page No. 23 / 33
Report Format Version: 6.1.1
4.3
6 dB Bandwidth Measurement
4.3.1
Limits of 6 dB Bandwidth Measurement
The minimum of 6 dB Bandwidth Measurement is 0.5 MHz.
4.3.2
Test Setup
EUT
SPECTRUM
ANALYZER
10 dB ATTENUATION
PAD
4.3.3
Test Instruments
Refer to section 4.1.2 to get information of above instrument.
4.3.4
Test Procedure
a.
Set resolution bandwidth (RBW) = 100 kHz
b.
Set the video bandwidth (VBW) ≥ 3 x RBW, Detector = Peak.
c.
Trace mode = max hold.
d.
Sweep = auto couple.
e.
Measure the maximum width of the emission that is constrained by the frequencies associated with the
two amplitude points (upper and lower) that are attenuated by 6 dB relative to the maximum level
measured in the fundamental emission
4.3.5
Deviation fromTest Standard
No deviation.
4.3.6
EUT Operating Conditions
The software provided by client to enable the EUT under transmission condition continuously at lowest,
middle and highest channel frequencies individually.
Report No.: RF170428C03-1
Page No. 24 / 33
Report Format Version: 6.1.1
4.3.7
Test Result
Channel
Frequency (MHz)
6 dB Bandwidth
(MHz)
Minimum Limit
(MHz)
Pass / Fail
2402
0.70
0.5
Pass
19
2440
0.70
0.5
Pass
39
2480
0.70
0.5
Pass
Spectrum Plot of Worst Value
Report No.: RF170428C03-1
Page No. 25 / 33
Report Format Version: 6.1.1
4.4
Conducted Output Power Measurement
4.4.1
Limits of Conducted Output Power Measurement
For systems using digital modulation in the 2400–2483.5 MHz bands: 1 Watt (30 dBm)
4.4.2
Test Setup
EUT
Power Sensor
Power Meter
ATTENUATION
PAD
4.4.3
Test Instruments
Refer to section 4.1.2 to get information of above instrument.
4.4.4
Test Procedures
A peak / average power sensor was used on the output port of the EUT. A power meter was used to read the
response of the peak / average power sensor. Record the power level.
4.4.5
Deviation from Test Standard
No deviation.
4.4.6
EUT Operating Conditions
The software provided by client to enable the EUT under transmission condition continuously at lowest,
middle and highest channel frequencies individually.
4.4.7
Test Results
Channel
Frequency
(MHz)
Peak Power
(mW)
Peak Power
(dBm)
Limit
(dBm)
Pass / Fail
2402
0.9795
-0.09
30
Pass
19
2440
1.236
0.92
30
Pass
39
2480
1.119
0.49
30
Pass
Report No.: RF170428C03-1
Page No. 26 / 33
Report Format Version: 6.1.1
4.5
Power Spectral Density Measurement
4.5.1
Limits of Power Spectral Density Measurement
The Maximum of Power Spectral Density Measurement is 8 dBm.
4.5.2
Test Setup
EUT
10dB ATTENUATION
PAD
4.5.3
SPECTRUM
ANALYZER
Test Instruments
Refer to section 4.1.2 to get information of above instrument.
4.5.4
Test Procedure
a. Set the RBW = 3 kHz, VBW =10 kHz, Detector = peak.
b. Sweep time = auto couple, Trace mode = max hold, allow trace to fully stabilize.
c. Use the peak marker function to determine the maximum power level in any 100 kHz band segment within
the fundamental EBW.
4.5.5
Deviation from Test Standard
No deviation.
4.5.6
EUT Operating Condition
The software provided by client to enable the EUT under transmission condition continuously at lowest,
middle and highest channel frequencies individually.
Report No.: RF170428C03-1
Page No. 27 / 33
Report Format Version: 6.1.1
4.5.7
Test Results
Channel
Frequency
(MHz)
PSD
(dBm/3 kHz)
Limit
(dBm/3 kHz)
Pass / Fail
2402
-14.82
Pass
19
2440
-13.63
Pass
39
2480
-14.15
Pass
Spectrum Plot of Worst Value
Report No.: RF170428C03-1
Page No. 28 / 33
Report Format Version: 6.1.1
4.6
Conducted Out of Band Emission Measurement
4.6.1
Limits of Conducted Out of Band Emission Measurement
Below –20 dB of the highest emission level of operating band (in 100 kHz Resolution Bandwidth).
4.6.2
Test Setup
EUT
10dB ATTENUATION
PAD
4.6.3
SPECTRUM
ANALYZER
Test Instruments
Refer to section 4.1.2 to get information of above instrument.
4.6.4
Test Procedure
MEASUREMENT PROCEDURE REF
1.
Set the RBW = 100 kHz.
2.
Set the VBW ≥ 300 kHz.
3.
Detector = peak.
4.
Sweep time = auto couple.
5.
Trace mode = max hold.
6.
Allow trace to fully stabilize.
7.
Use the peak marker function to determine the maximum power level in any 100 kHz band segment
within the fundamental EBW.
MEASUREMENT PROCEDURE OOBE
1.
Set RBW = 100 kHz.
2.
Set VBW ≥ 300 kHz.
3.
Detector = peak.
4.
Sweep = auto couple.
5.
Trace Mode = max hold.
6.
Allow trace to fully stabilize.
7.
Use the peak marker function to determine the maximum amplitude level.
4.6.5
Deviation from Test Standard
No deviation.
4.6.6
EUT Operating Condition
The software provided by client to enable the EUT under transmission condition continuously at lowest,
middle and highest channel frequencies individually.
Report No.: RF170428C03-1
Page No. 29 / 33
Report Format Version: 6.1.1
4.6.7
TEST RESULTS
Ch 0
Ch 19
Ch 39
Report No.: RF170428C03-1
Page No. 30 / 33
Report Format Version: 6.1.1
Ch 0 Band Edge
Report No.: RF170428C03-1
Ch 39 Band Edge
Page No. 31 / 33
Report Format Version: 6.1.1
5
Pictures of Test Arrangements
Please refer to the attached file (Test Setup Photo).
Report No.: RF170428C03-1
Page No. 32 / 33
Report Format Version: 6.1.1
Appendix – Information on the Testing Laboratories
We, Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, were founded in 1988 to
provide our best service in EMC, Radio, Telecom and Safety consultation. Our laboratories are accredited and
approved according to ISO/IEC 17025.
If you have any comments, please feel free to contact us at the following:
Linko EMC/RF Lab
Hsin Chu EMC/RF/Telecom Lab
Tel: 886-2-26052180
Tel: 886-3-6668565
Fax: 886-2-26051924
Fax: 886-3-6668323
Hwa Ya EMC/RF/Safety
Tel: 886-3-3183232
Fax: 886-3-3270892
Email: [email protected]
Web Site: www.bureauveritas-adt.com
The address and road map of all our labs can be found in our web site also.
--- END ---
Report No.: RF170428C03-1
Page No. 33 / 33
Report Format Version: 6.1.1
Download: A006 ASUS Phone Test Report 1 ASUSTeK Computer Inc
Mirror Download [FCC.gov]A006 ASUS Phone Test Report 1 ASUSTeK Computer Inc
Document ID3454709
Application IDe+F+kNeSwkhGrEzVVDnWHg==
Document DescriptionRF Test Report-BLE
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize45.24kB (565550 bits)
Date Submitted2017-07-07 00:00:00
Date Available2017-07-12 00:00:00
Creation Date2017-06-05 15:45:30
Producing SoftwareMicrosoft® Office Word 2007
Document Lastmod2017-06-05 15:45:34
Document TitleTest Report 1
Document CreatorMicrosoft® Office Word 2007
Document Author: Jim

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : Jim
Create Date                     : 2017:06:05 15:45:30+08:00
Modify Date                     : 2017:06:05 15:45:34+08:00
Language                        : zh-TW
XMP Toolkit                     : Adobe XMP Core 5.4-c005 78.147326, 2012/08/23-13:03:03
Format                          : application/pdf
Creator                         : Jim
Title                           : 1
Creator Tool                    : Microsoft® Office Word 2007
Metadata Date                   : 2017:06:05 15:45:34+08:00
Producer                        : Microsoft® Office Word 2007
Document ID                     : uuid:5489bbc4-b7ad-4ee6-af38-34fb67143906
Instance ID                     : uuid:59658c1f-7d54-4fed-95a0-1ec1c52783fc
Page Count                      : 33
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2017
