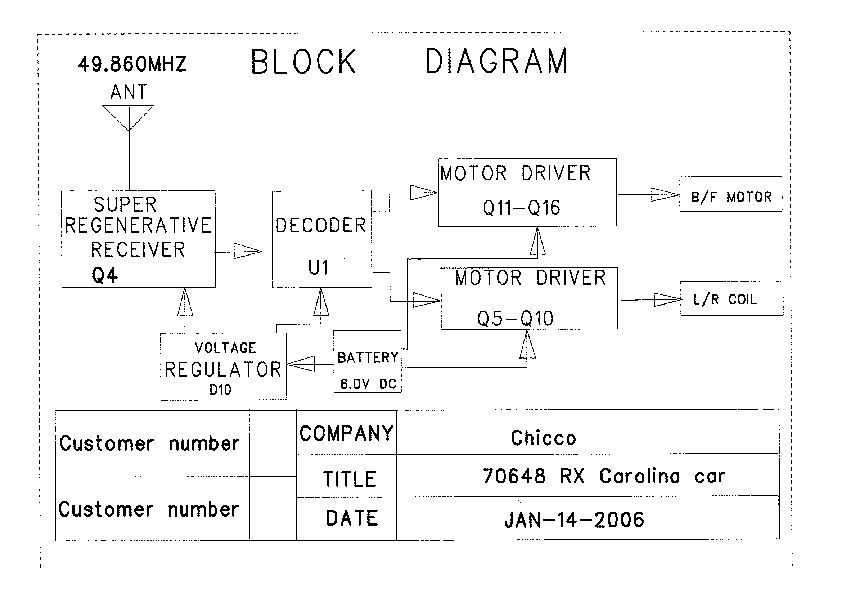

04979670648R RC Car Block Diagram - FCC ID MVH04979670648R

FCC ID MVH04979670648R

Block Diagram

RC Car

by Caben Asia Pacific Ltd.

Document preview loads when visible.

Document Details

FCC IDMVH04979670648R
Document ID638675
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantCaben Asia Pacific Ltd.
Equipment ClassRC Car
Product Code04979670648R
Application IDKVWeDF4ToGSxiHFlV3rLcg==
Application PurposeOriginal Equipment
Application Date2006-03-21
Frequency Range49.86 MHz
FRN0008544629
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2006-03-21
Available2006-03-21
Created2006-02-28
Modified2006-02-28
Pages1
File TypeAdobe Acrobat PDF
File Size62080
File SHA-2566b5e4d3d190c94b715b17544c38ff1410c6cfb4e2b993d22cb2d7dade3bdfa0a
FCC.gov SourcesFCC.gov 638675
