EGRO Wireless Mouse Block Diagram - FCC ID MWIEGRO

FCC ID MWIEGRO

Block Diagram

Wireless Mouse

by Ezkey Corp.

Document preview loads when visible.

Document Details

FCC IDMWIEGRO
Document ID396689
Document TypeBlock Diagram
DescriptionBlock Diagram

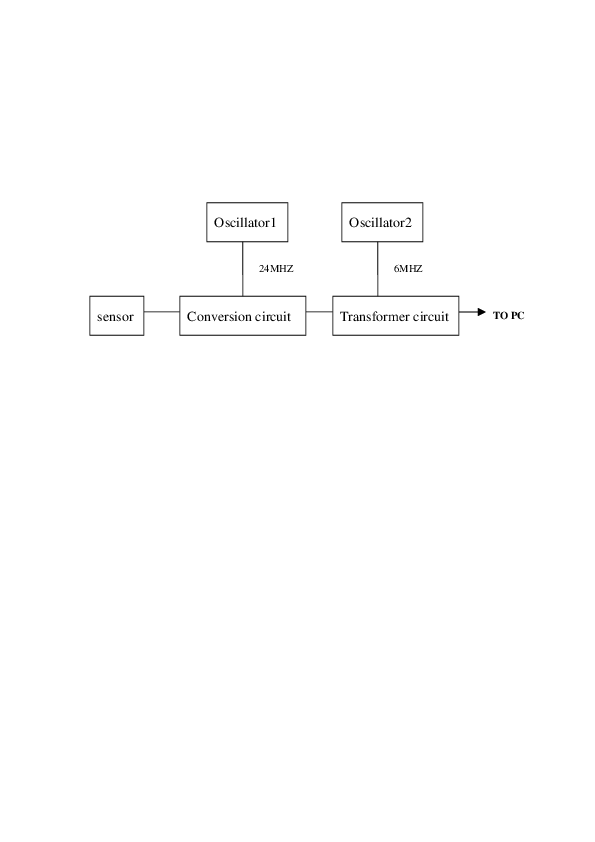

Document TitleCIRCUIT DESCRIPTION OF OPTICAL MOUSE
ApplicantEzkey Corp.
Equipment ClassWireless Mouse
Product CodeEGRO
Application ID6UIoq8ZazQIOCfj59Dfqsw==
Application PurposeOriginal Equipment
Application Date2004-02-12
Frequency Range26.96-27.28 MHz
FRN0009617424
Test FirmBay Area Compliance Laboratory
Certified ByK A Chen
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-02-13
Available2004-02-12
Created2004-02-13
Modified2004-02-13
Pages1
File TypeAdobe Acrobat PDF
File Size10528
File SHA-25603eb074594d4fe41f15e6d51dfd5d83db1741406c652f6fd9df7dfe79138052d
PDF Metadata Authorxtc
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows) xtc
FCC.gov SourcesFCC.gov 396689
