8254DAT Master Lock Alert Block Diagram - FCC ID MZR8254DAT
FCC ID MZR8254DAT

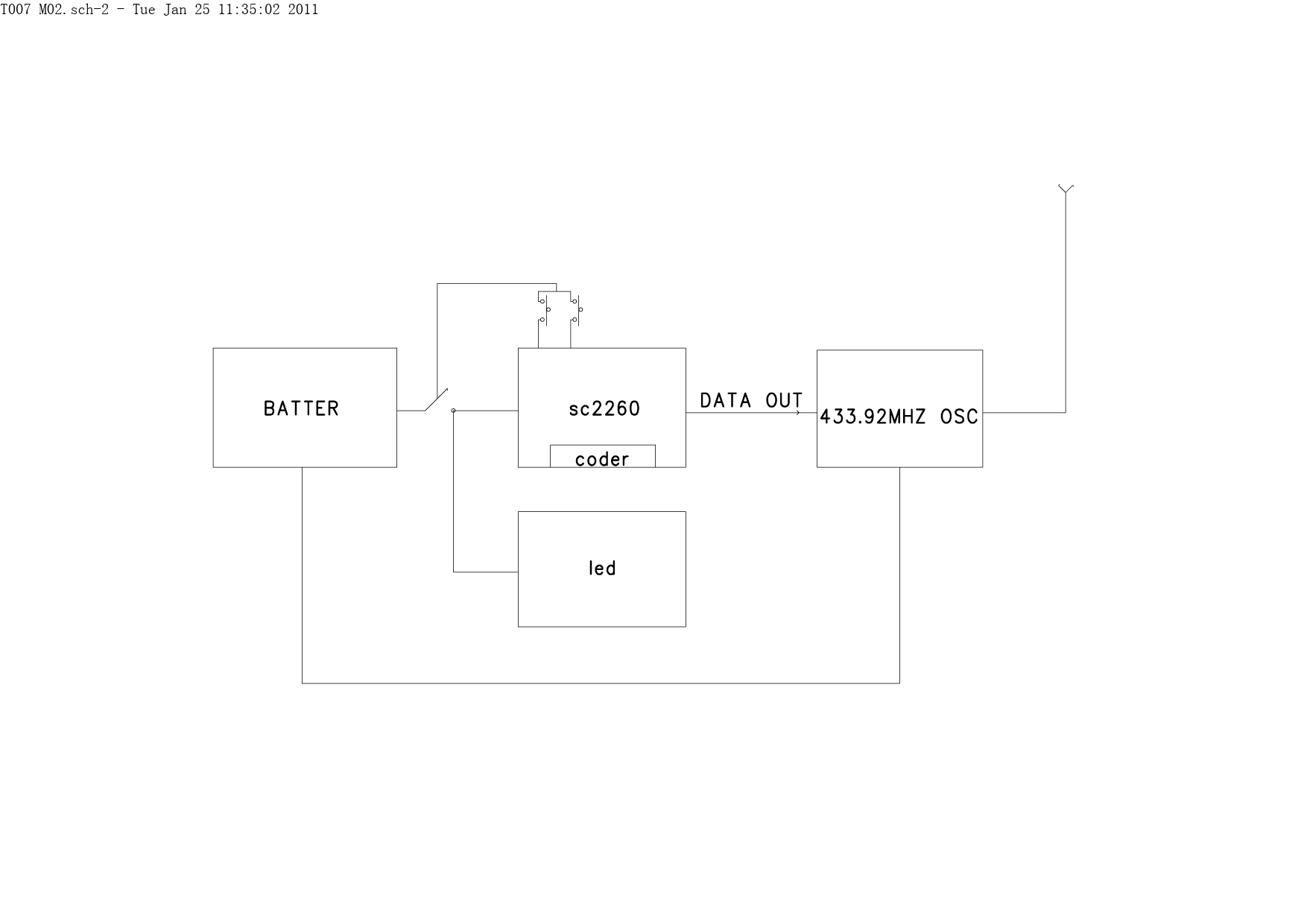

Block Diagram
Master Lock Alert
Document preview loads when visible.
Document Details
| FCC ID | MZR8254DAT |
|---|---|
| Document ID | 1445016 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Document Title | ccd |
| Applicant | Master Lock Company |
| Equipment Class | Master Lock Alert |
| Product Code | 8254DAT |
| Application ID | fIdAN/1QX5YoqbGwv/qjFw== |
| Application Purpose | Original Equipment |
| Application Date | 2011-04-07 |
| Frequency Range | 433.92 MHz |
| FRN | 0021474101 |
| Test Firm | Bay Area Compliance Laboratory Corp. (Shenzhen) |
| Certified By | Scott Kalous |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2011-04-07 |
| Available | 2011-04-07 |
| Created | 2011-02-21 |
| Modified | 2011-02-23 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 30898 |
| File SHA-256 | 4d410f6180d8ce1fae5acefe5a0c5d7c71f1cfda6ae75c5f9babfdb08f3aa59b |
| PDF Metadata Author | user |
| PDF Metadata Creator | PScript5.dll Version 5.2.2 |
| PDF Metadata Producer | Acrobat Distiller 7.0 (Windows) |
| FCC.gov Sources | FCC.gov 1445016 |
