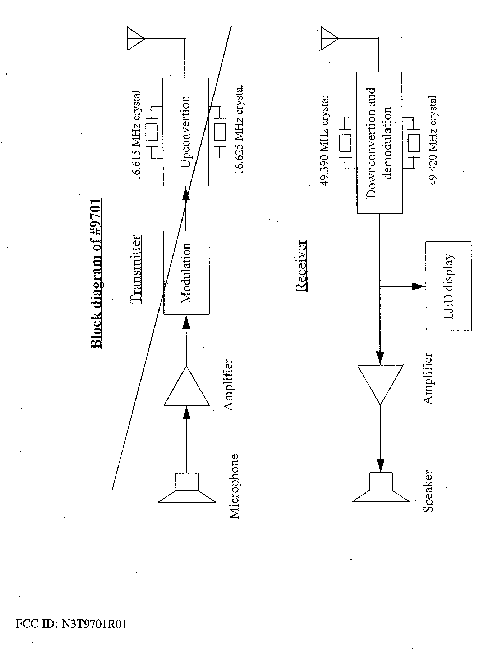

9701R01 Baby Monitor Receiver Block Diagram - FCC ID N3T9701R01

FCC ID N3T9701R01

BLOCK DIAGRAM

Baby Monitor Receiver

by Barney Technology Limited

Document preview loads when visible.

Document Details

FCC IDN3T9701R01
Document ID8345
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
ApplicantBarney Technology Limited
Equipment ClassBaby Monitor Receiver
Product Code9701R01
Application IDH9Xq7RFhZsLS48QVbKHJ4A==
Application PurposeOriginal Equipment
Application Date1998-11-17
Frequency Range49.845-49.875 MHz
FRN9999999999
Test FirmIntertek Testing Services Hong Kong
Certified ByC.K. LAM ASSISTANT MANAGER / EMC
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted1998-09-28
Available1998-11-17
Created1998-09-25
Modified1998-09-25
Pages1
File TypeAdobe Acrobat PDF
File Size24272
File SHA-2568149c48543cf8e89feca151823b2175cc846dbddfeb676f7ef835a4ba19084d1
PDF Metadata ProducerAcrobat 3.0 Scan Plug-in Acrobat 3.0 Scan Plug-in
FCC.gov SourcesFCC.gov 8345
