FCC ID N89-WD112
Smart Control Module
by CyberTAN Technology Inc.
Grantee Code: N89 Product Code: WD112
Latest application date: 2016-02-17
Device Images
FCC ID Device Details
| FCC ID | N89-WD112 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | N89 |
| Product Code | WD112 |
| Applicant Business | CyberTAN Technology Inc. 🇹🇼 |
| Related Domains |  cybertan.com.tw |
| Equipment Class | Smart Control Module |
| Test Firm | SPORTON International Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2016-02-17 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| N89-WD112 User manual | Users Manual | 2016-02-17 | PDF 340.6 KB |
| N89-WD112 User manual_statement | Users Manual | 2016-02-17 | PDF 38.9 KB |

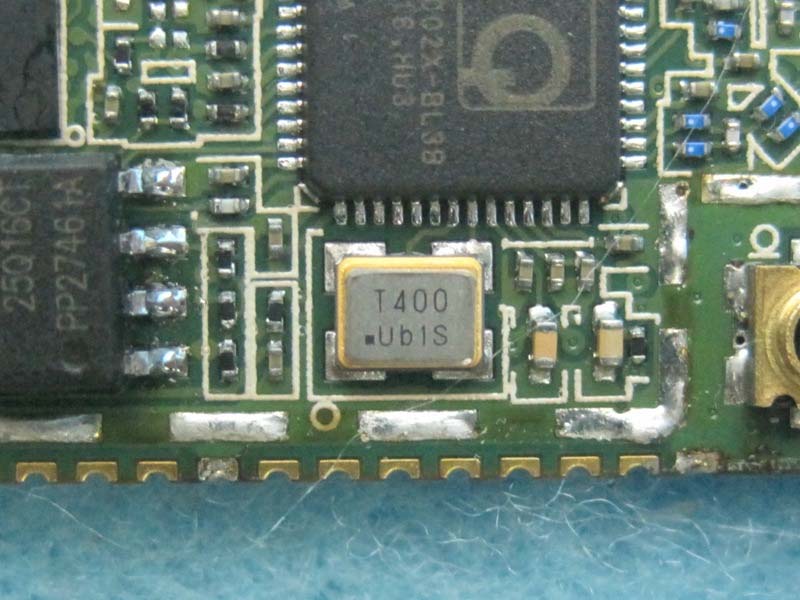

| N89-WD112 Internal photo | Internal Photos | 2016-02-17 | PDF 282.6 KB |
| N89-WD112 External photo | External Photos | 2016-02-17 | PDF 373.7 KB |
| N89-WD112 Label and location | ID Label/Location Info | 2016-02-17 | PDF 1.1 MB |

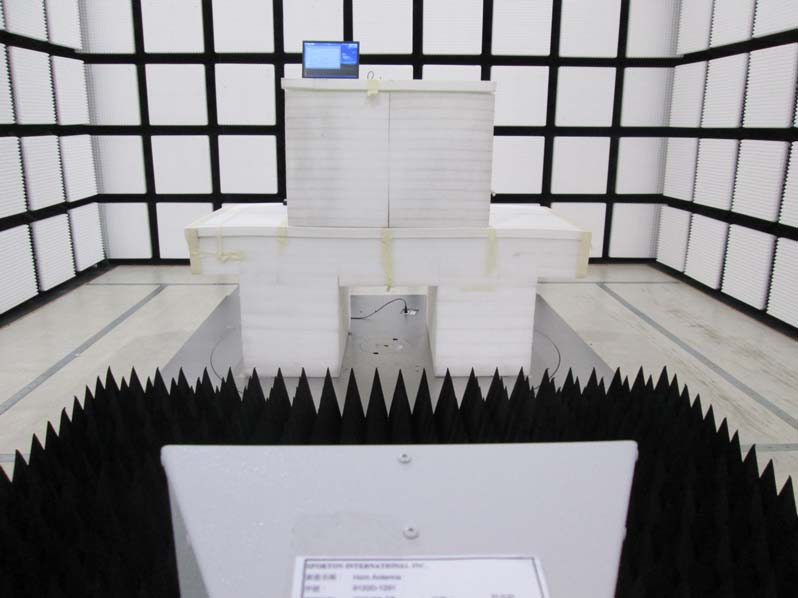

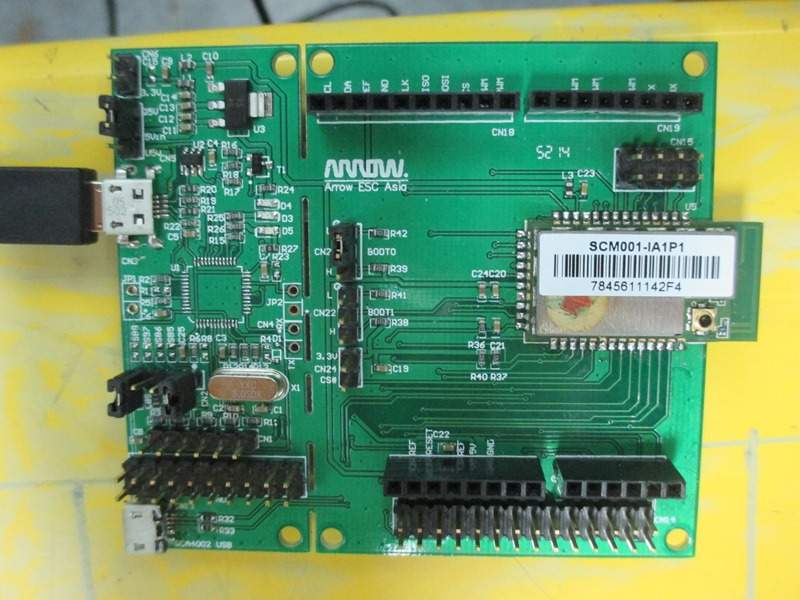

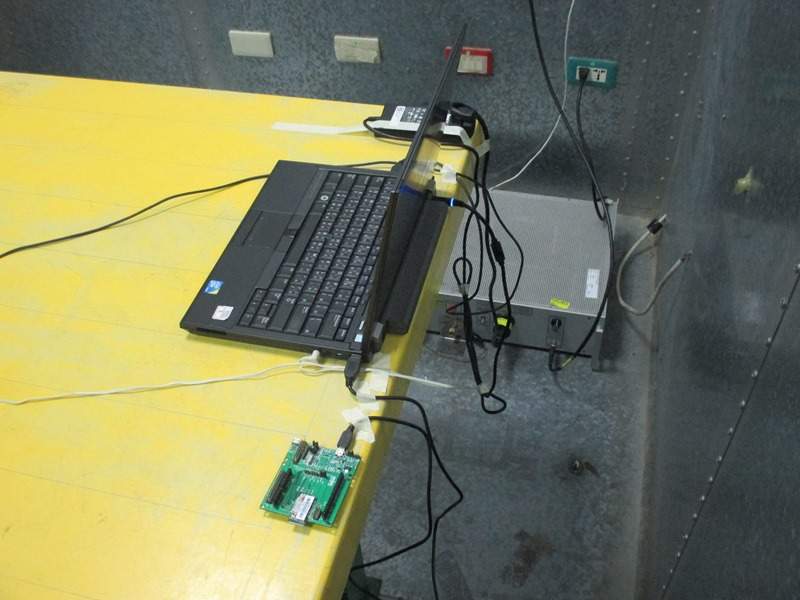

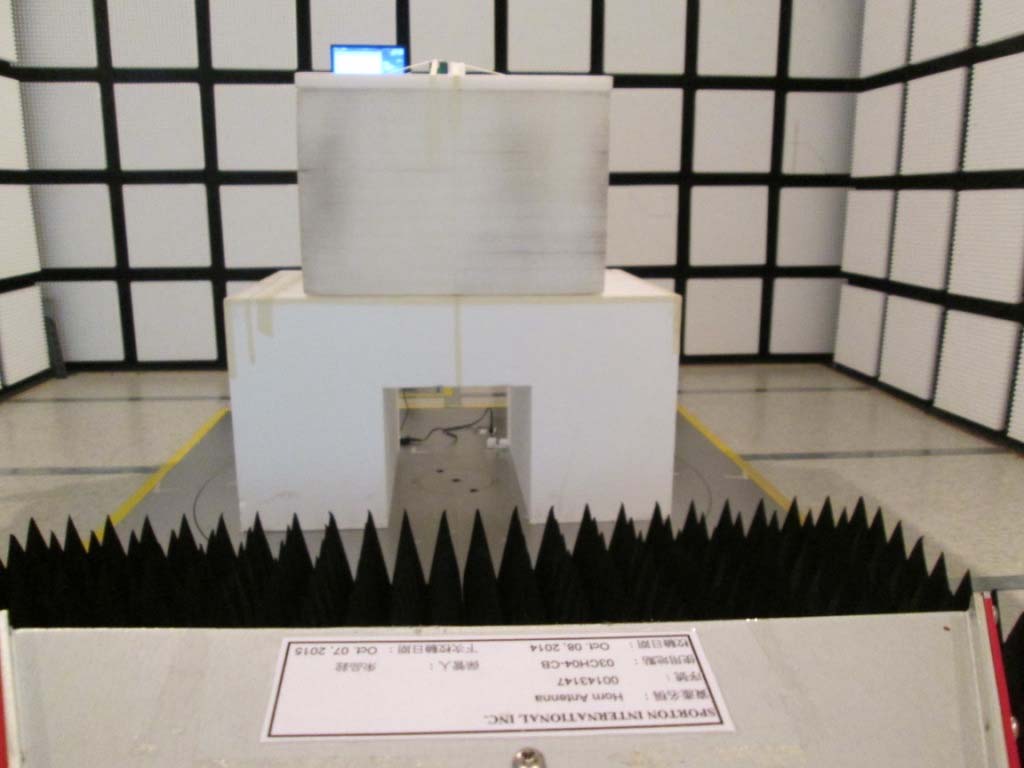

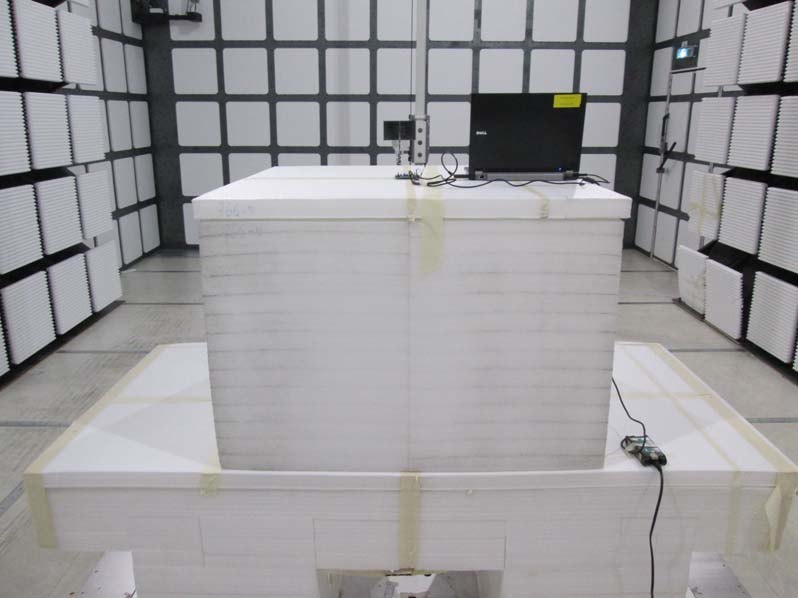

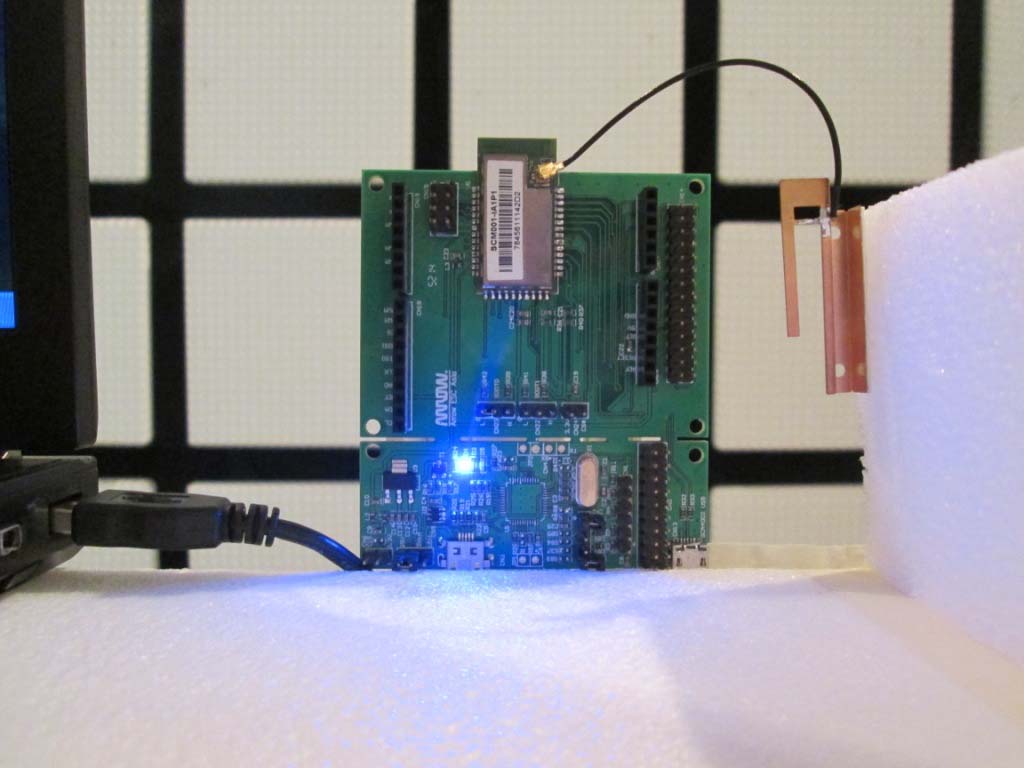

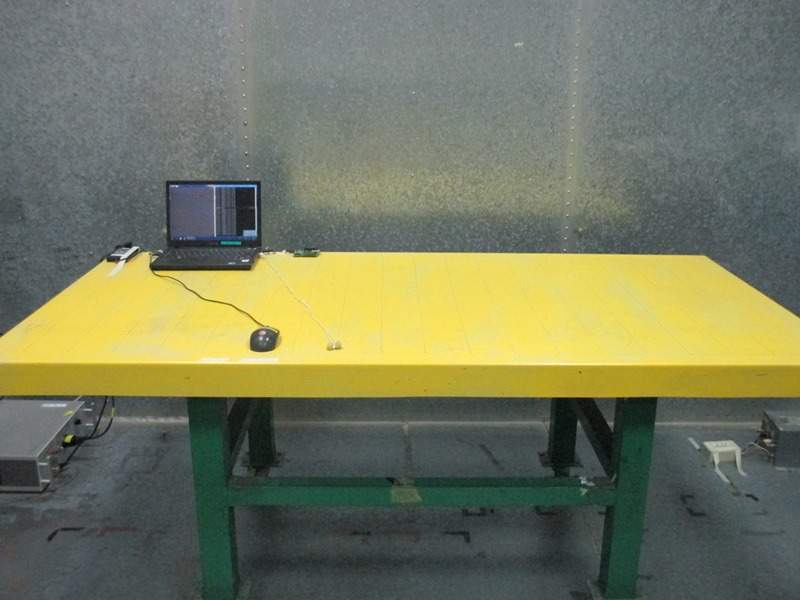

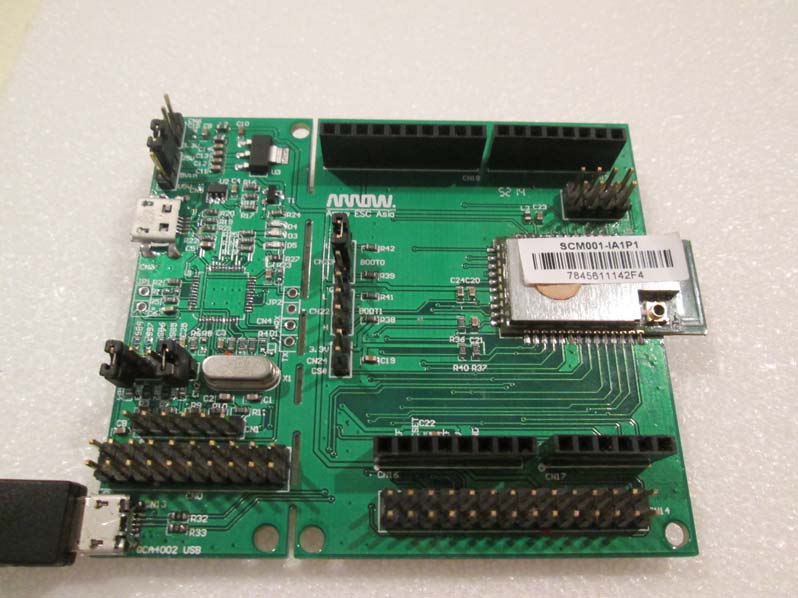

| N89-WD112 TEST PHOTOS | Test Setup Photos | 2016-02-17 | PDF 709.1 KB |
| N89-WD112 RF Test report | Test Report | 2016-02-17 | PDF 4.4 MB |
| N89-WD112 Ad Hoc Mode function Declaration | Cover Letter(s) | 2016-02-17 | PDF 23 KB |
| N89-WD112 Confidentiality request letter | Cover Letter(s) | 2016-02-17 | PDF 35.7 KB |
| N89-WD112 DoC Letter | Cover Letter(s) | 2016-02-17 | PDF 28 KB |
| N89-WD112 Module approval letter | Cover Letter(s) | 2016-02-17 | PDF 27.2 KB |
| N89-WD112 POA | Cover Letter(s) | 2016-02-17 | PDF 28.6 KB |
| N89-WD112 RF Exposure report | RF Exposure Info | 2016-02-17 | PDF 100.3 KB |
| N89-WD112 Blcok Diagram Metadata only | Block Diagram | PDF 1.1 MB | |
| N89-WD112 Schematic Metadata only | Schematics | PDF 2.5 MB | |
| N89-WD112 Operation Description Metadata only | Operational Description | PDF 55 KB |
Application Information
| Application ID | uAk/T2x0J9nzMzMWUIwKJg== |
|---|---|
| Final Action Date | 2016-02-17 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0008910655 |
| Model | WD112 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Smart Control Module |
| Responsible Party | City Kuo, Director, city.kuo@cybertan.com.tw , 886-3-5777777 |
| Test Firm | Leo Huang, SPORTON International Inc., leohuang@sporton.com.tw  , 886-3-6569065 |
| TCB Email | LST.FRE.CertNotice@ul.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidths. This transmitter is approved for use in mobile RF exposure category configurations with the antenna(s) installed to provide a separation distance of at least 20 cm from all persons. The antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within a host device. Grantee must provide installation and operating instructions for complying with FCC multi-transmitter product procedures. Grantee must coordinate with OEM integrators to determine applicable host configurations to ensure RF exposure compliance, including simultaneous transmission. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| uAk/T2x0J9nzMzMWUIwKJg== | 2016-02-17 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application uAk/T2x0J9nzMzMWUIwKJg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 02/17/2016 Application Dated: 02/17/2016 |
| CyberTAN Technology Inc. |
| No. 99, Park Avenue III |
| Science-based Industrial Park |
| Hsinchu, 308 Taiwan |
| Attention: City Kuo , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | N89-WD112 |
| Name of Grantee: | CyberTAN Technology Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart Control Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.262 |
| Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidths. This transmitter is approved for use in mobile RF exposure category configurations with the antenna(s) installed to provide a separation distance of at least 20 cm from all persons. The antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within a host device. Grantee must provide installation and operating instructions for complying with FCC multi-transmitter product procedures. Grantee must coordinate with OEM integrators to determine applicable host configurations to ensure RF exposure compliance, including simultaneous transmission. |
EAS Grant - Application uAk/T2x0J9nzMzMWUIwKJg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
CyberTAN Technology Inc. No. 99, Park Avenue III Science-based Industrial Park Hsinchu, 308 Taiwan |
Date of Grant: 02/17/2016 Application Dated: 02/17/2016 |
| Attention: City Kuo , Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | N89-WD112 |
| Name of Grantee: | CyberTAN Technology Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Smart Control Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.262 |
| Power output listed is conducted. This device supports 20 MHz and 40 MHz bandwidths. This transmitter is approved for use in mobile RF exposure category configurations with the antenna(s) installed to provide a separation distance of at least 20 cm from all persons. The antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within a host device. Grantee must provide installation and operating instructions for complying with FCC multi-transmitter product procedures. Grantee must coordinate with OEM integrators to determine applicable host configurations to ensure RF exposure compliance, including simultaneous transmission. |
