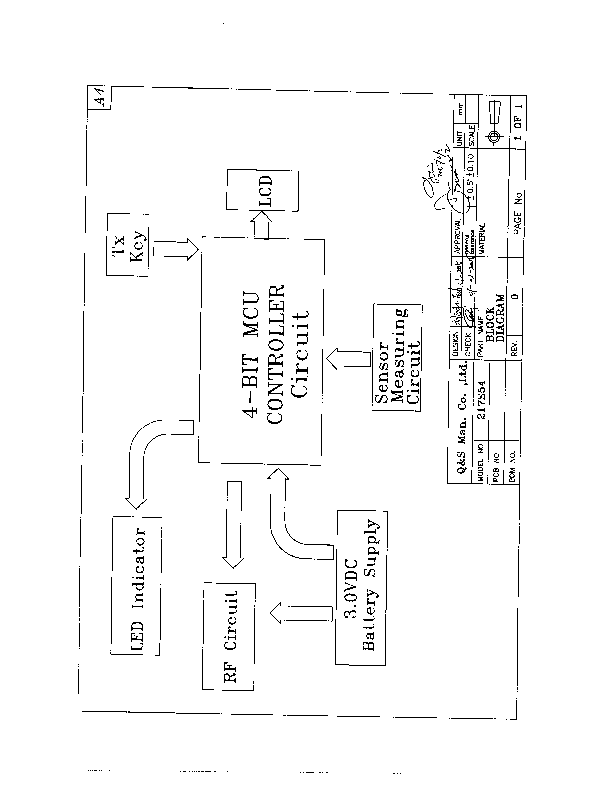

217S54M Wireless Remote Sensor Block Diagram - FCC ID N9Z217S54M

FCC ID N9Z217S54M

Block diagram

Wireless Remote Sensor

by Ewig Industries Macao Commercial Offshore Limited

Document preview loads when visible.

Document Details

FCC IDN9Z217S54M
Document ID520216
Document TypeBlock Diagram
DescriptionBlock diagram
Document TitleImage3
ApplicantEwig Industries Macao Commercial Offshore Limited
Equipment ClassWireless Remote Sensor
Product Code217S54M
Application ID2bvDR0Xisji90LUFppjdAA==
Application PurposeOriginal Equipment
Application Date2005-03-04
Frequency Range433.9 MHz
FRN0019628270
Test FirmHong Kong Standards & Testing Cen.
Certified ByPatrick Wong Sr. Manager (AGENT)
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-03-04
Available2005-03-04
Created2005-02-24
Modified2005-02-24
Pages1
File TypeAdobe Acrobat PDF
File Size275942
File SHA-256247d62f6efb48026355fa5d0bcd90b244b2194c4f1b6024e40a1ee4535045d2c
PDF Metadata Authorcee3
PDF Metadata ProducerpdfFactory http://www.pdffactory.com pdfFactory v1.57 (Windows XP Chinese)
FCC.gov SourcesFCC.gov 520216
