CLCD4 R/C TRANSCEIVER - TX Label Diagram - FCC ID NAHCLCD4
FCC ID NAHCLCD4

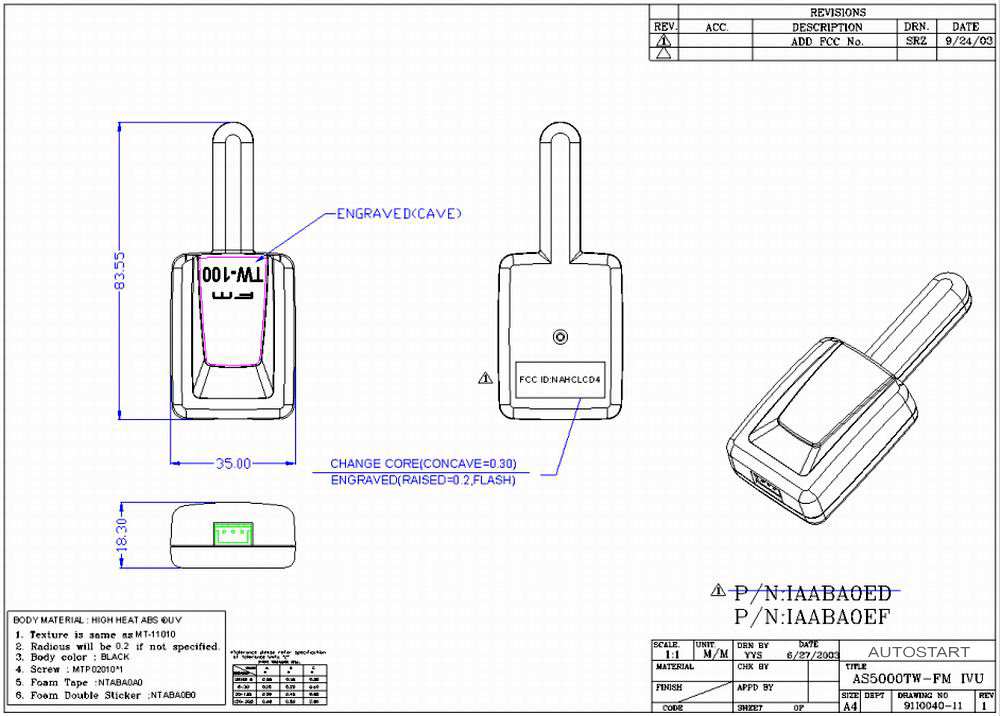

ID LABEL SAMPLE AND LOCATION
R/C TRANSCEIVER - TX
by Autostart
Document Details
| FCC ID | NAHCLCD4 |
|---|---|
| Document ID | 369164 |
| Document Type | ID Label/Location Info |
| Description | ID LABEL SAMPLE AND LOCATION |
| Applicant | Autostart |
| Equipment Class | R/C TRANSCEIVER - TX |
| Product Code | CLCD4 |
| Application ID | aX8m1G79TUbp8buxkEgJjA== |
| Application Purpose | Original Equipment |
| Application Date | 2003-10-28 |
| Frequency Range | 433-434 MHz |
| FRN | 0009631508 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | JACK WISNIA PRESIDENT |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-10-28 |
| Available | 2003-10-28 |
| Created | 2003-09-24 |
| Modified | 2003-09-24 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 276852 |
| File SHA-256 | e00e2a1d280bb62d7eff27ddbb998760b22ee0a4d044706ee754669c8fc59d2b |
| FCC.gov Sources | FCC.gov 369164 |
