SAW4 SECURITY TRANSMITTER Block Diagram - FCC ID NAHSAW4
FCC ID NAHSAW4

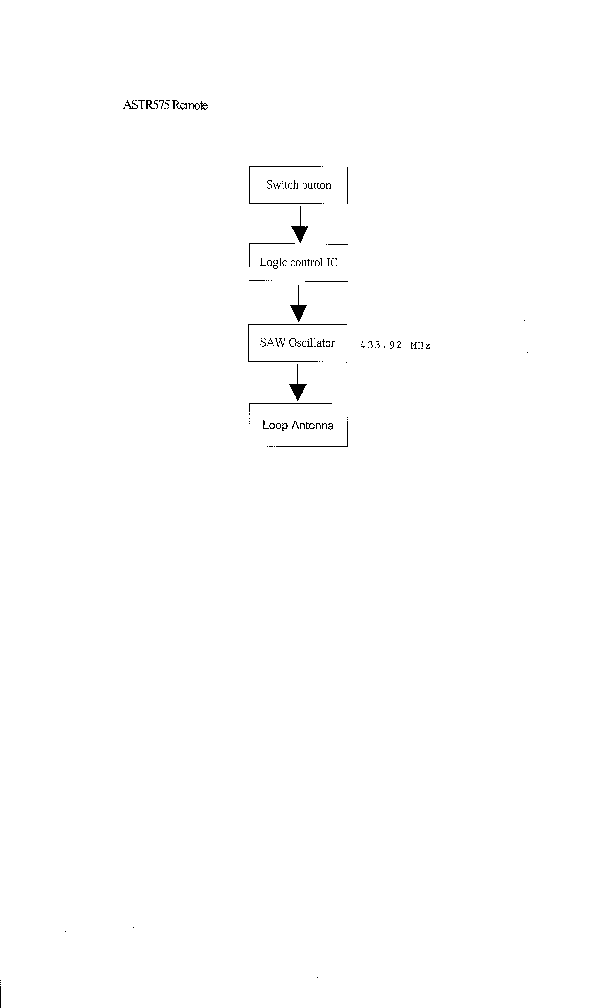

BLOCK DIAGRAM
SECURITY TRANSMITTER
by Autostart
Document preview loads when visible.
Document Details
| FCC ID | NAHSAW4 |
|---|---|
| Document ID | 370775 |
| Document Type | Block Diagram |
| Description | BLOCK DIAGRAM |
| Applicant | Autostart |
| Equipment Class | SECURITY TRANSMITTER |
| Product Code | SAW4 |
| Application ID | TyGJztcCxz0s7PlHCtZgrA== |
| Application Purpose | Original Equipment |
| Application Date | 2003-11-04 |
| Frequency Range | 433-434 MHz |
| FRN | 0009631508 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | ROBERT PEPPER PRESIDENT |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-11-04 |
| Available | 2003-11-04 |
| Created | 2003-10-10 |
| Modified | 2003-10-10 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 16493 |
| File SHA-256 | ac9b0b5d12ae2199e1a38af9e3894d8abb0efb78fbca2eea73537be475906009 |
| PDF Metadata Producer | Acrobat 4.05 Import Plug-in for Windows Acrobat 4.05 Import Plug-in for Windows |
| FCC.gov Sources | FCC.gov 370775 |
