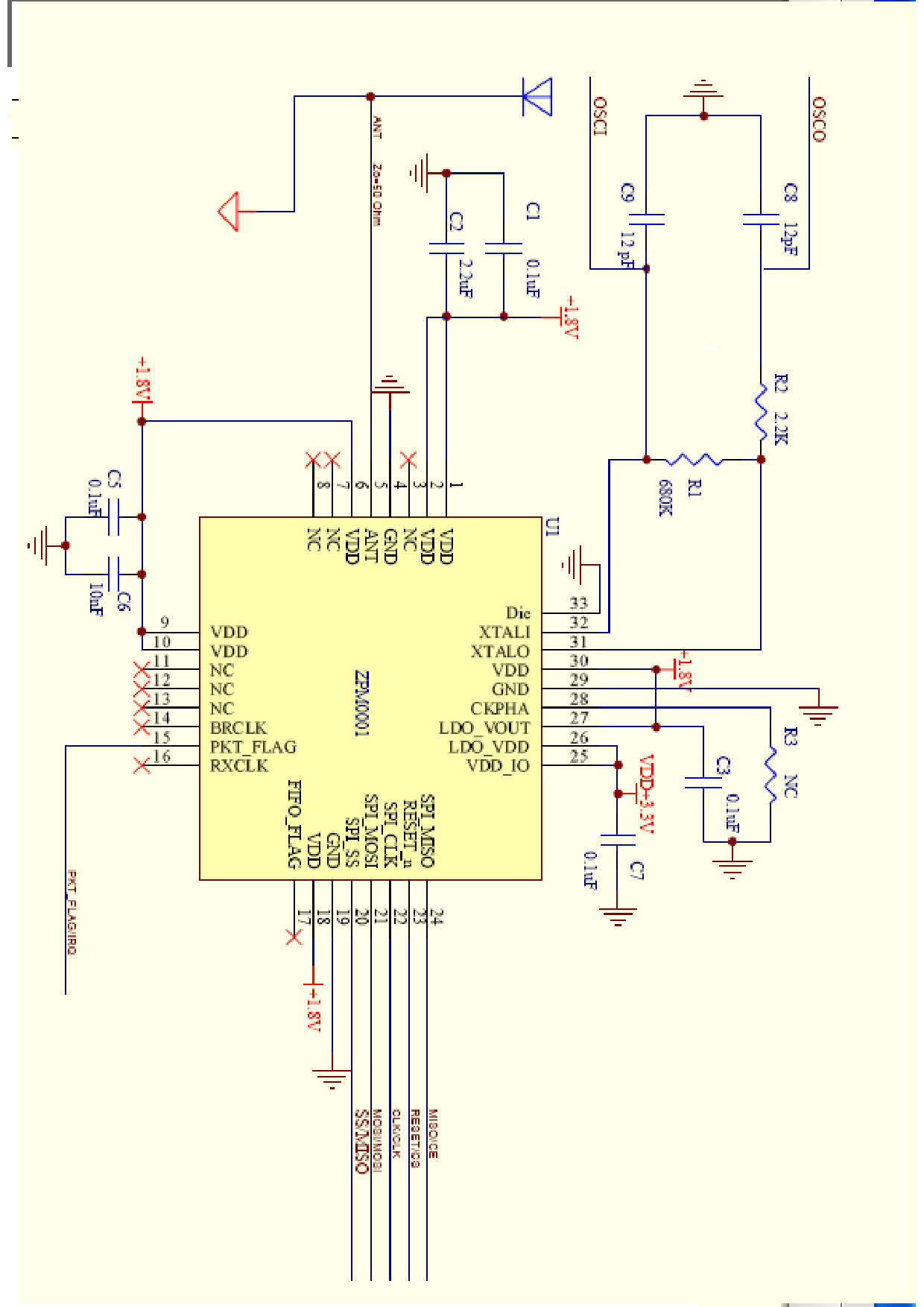

4660306 Wii Wireless Nunchuck Adapter Schematics - FCC ID NAM4660306

FCC ID NAM4660306

Schematics

Wii Wireless Nunchuck Adapter

by Guillemot Corp S.A.

Document preview loads when visible.

Document Details

FCC IDNAM4660306
Document ID1033745
Document TypeSchematics
DescriptionSchematics
Document TitleGanzseitiger Faxausdruck
ApplicantGuillemot Corp S.A.
Equipment ClassWii Wireless Nunchuck Adapter
Product Code4660306
Application IDszrnd//ynUaovNom/MbFsQ==
Application PurposeOriginal Equipment
Application Date2008-11-21
Frequency Range2402-2476 MHz
FRN0015875438
Test FirmHong Kong Standards and Testing Center
Certified ByKC Lee Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2008-11-21
Available2008-11-21
Created2008-11-21
Modified2008-11-21
Pages1
File TypeAdobe Acrobat PDF
File Size68009
File SHA-25603f23d217b96e984f44154ffddf4dab83f5d712bbe9b77ad0e65fd3bb100d8a7
PDF Metadata Authorpbbs21
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerAcrobat Distiller 7.0.5 (Windows)
FCC.gov SourcesFCC.gov 1033745, FCC.gov 1033737
