FCC ID NEO61-101SERIES
BSF3604-450-470-DP-AC UHF Band Selective Fibre Fed Booster
by PBE Europe Ltd. trading as Axell Wireless
Grantee Code: NEO Product Code: 61101SERIES
Latest application date: 2016-01-13
Device Images
FCC ID Device Details
| FCC ID | NEO61-101SERIES |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | NEO |
| Product Code | 61101SERIES |
| Applicant Business | PBE Europe Ltd. trading as Axell Wireless 🇬🇧 |
| Related Domains |  pbeaxell.com |
| Equipment Class | BSF3604-450-470-DP-AC UHF Band Selective Fibre Fed Booster |
| Test Firm | Element Materials Technology Warwick Ltd |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 450-470 MHz | Original Equipment | 2016-01-13 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-01-13 | PDF 4.7 MB |

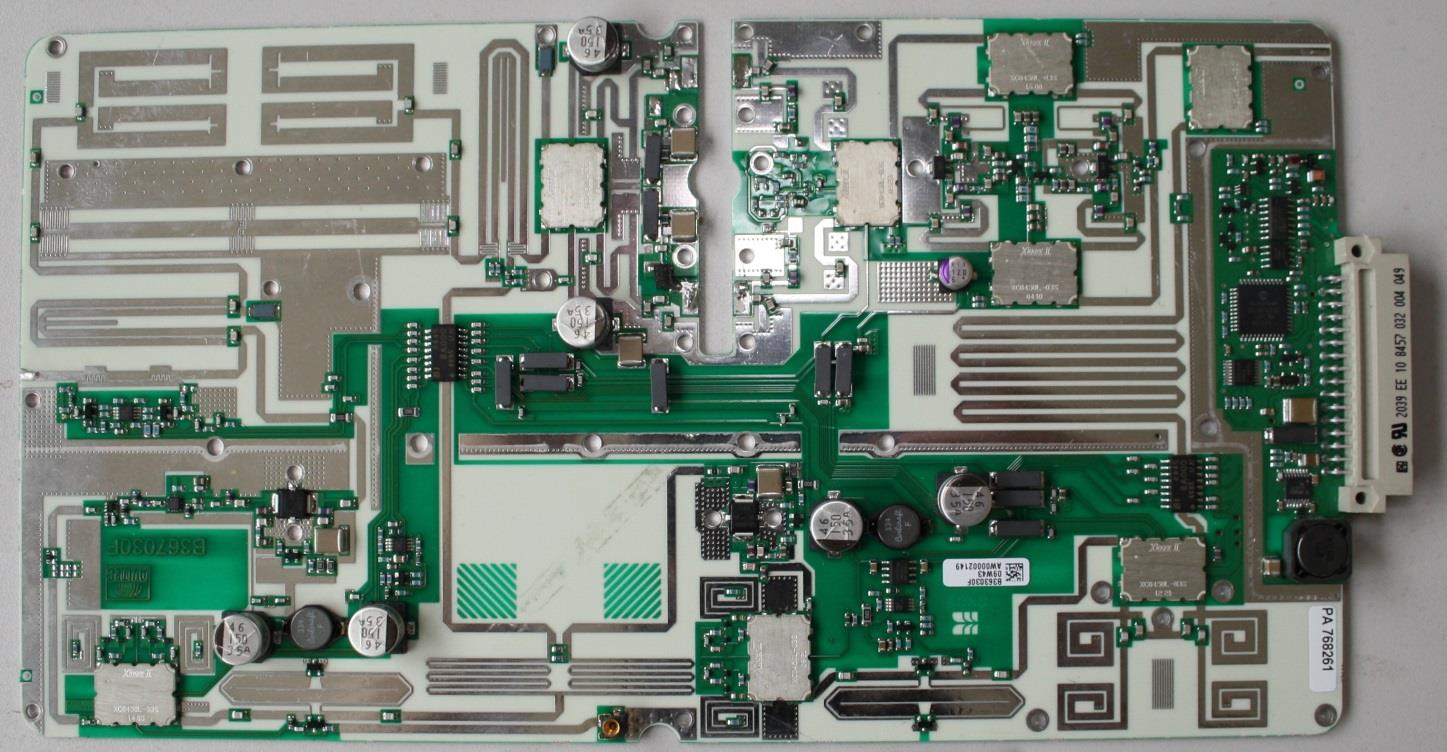

| Internal photos 1 | Internal Photos | 2016-01-13 | PDF 463.9 KB |
| Internal photos 2 | Internal Photos | 2016-01-13 | PDF 480.1 KB |
| Internal photos 3 | Internal Photos | 2016-01-13 | PDF 1.9 MB |
| Internal photos 4 | Internal Photos | 2016-01-13 | PDF 2 MB |
| Internal photos 5 | Internal Photos | 2016-01-13 | PDF 717.6 KB |
| Internal photos 6 | Internal Photos | 2016-01-13 | PDF 239.6 KB |
| Internal photos 7 | Internal Photos | 2016-01-13 | PDF 729.6 KB |
| Internal photos 8 | Internal Photos | 2016-01-13 | PDF 1.2 MB |
| Internal photos 9 | Internal Photos | 2016-01-13 | PDF 932.7 KB |
| External photos | External Photos | 2016-01-13 | PDF 763 KB |
| Label | ID Label/Location Info | 2016-01-13 | PDF 60.2 KB |
| Label position | ID Label/Location Info | 2016-01-13 | PDF 763 KB |
| Test Report Metadata only | Test Report | 2016-01-13 | PDF 3 MB |
| Test report | Test Report | 2016-01-13 | PDF 3 MB |
| Letter of Agency | Attestation Statements | 2016-01-13 | PDF 31.9 KB |
| Confidentiality request | Cover Letter(s) | 2016-01-13 | PDF 32 KB |
| Declaration re labeling | Cover Letter(s) | 2016-01-13 | PDF 34.3 KB |
| Frequency Declaration | Cover Letter(s) | 2016-01-13 | PDF 34.2 KB |
| Block diagram Metadata only | Block Diagram | PDF 65.3 KB | |
| Circuit Schematics 4 Metadata only | Schematics | PDF 2.9 MB | |
| Circuit schematic 10 Metadata only | Schematics | PDF 48 KB | |
| Circuit schematic 5 Metadata only | Schematics | PDF 130.6 KB | |
| Circuit schematic 8 Metadata only | Schematics | PDF 1.5 MB | |
| Circuit schematic 9 Metadata only | Schematics | PDF 179.8 KB | |
| Circuit schematics 1 Metadata only | Schematics | PDF 305.7 KB | |
| Circuit schematics 2 Metadata only | Schematics | PDF 674.5 KB | |
| Circuit schematics 3 Metadata only | Schematics | PDF 1.3 MB | |
| Circuit schematics 6 Metadata only | Schematics | PDF 179.5 KB | |
| Circuit schematics 7 Metadata only | Schematics | PDF 188.1 KB | |
| Operational description Metadata only | Operational Description | PDF 136.9 KB | |
| Parts list BoM Metadata only | Parts List/Tune Up Info | PDF 44.3 KB |
Application Information
| Application ID | 1kwPPB049RTvE2bGh2BndA== |
|---|---|
| Final Action Date | 2016-01-13 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0007840820 |
| Model | 61-101SERIES |
| Frequency Range | 450-470 MHz |
| Equipment Class | B9B - Part 90 Class B Industrial Booster (non-SMR) |
| Device Description | BSF3604-450-470-DP-AC UHF Band Selective Fibre Fed Booster |
| Responsible Party | Brian Speed Barton, Mr., bbarton@pbeaxell.com , 01494-777014 |
| Test Firm | Stewart Barrowclough, Element Materials Technology Warwick Ltd, stewart.barrowclough@element.com  , 01695556666 |
| TCB Email | roy.ediss@element.com |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Industrial Booster. Power Output is maximum single channel conducted. Maximum utilized output power is 5 Watts in the downlink and 0.000003 Watts in the uplink. The antenna used for this transmitter is to be fixed-mounted on permanent structures. Users and installers must be provided with appropriate antenna installation instructions and transmitter operating conditions, including antenna co-location requirements of Sec. 1.1307(b)(3), for satisfying RF exposure compliance. |
