839049TX RC Car Schematics - FCC ID NEX-8390-49TX

FCC ID NEX-8390-49TX

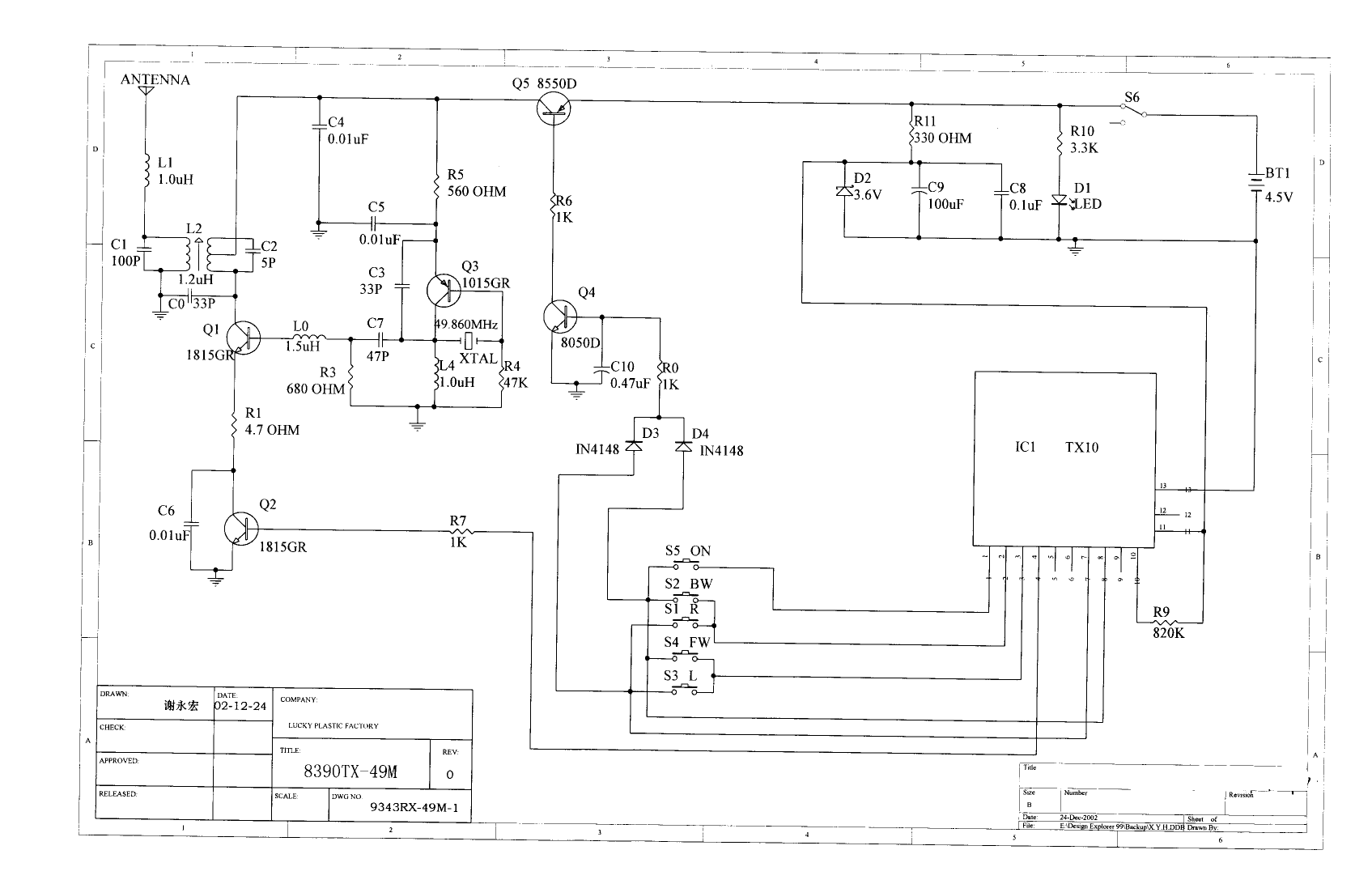

Circuit Diagram

RC Car

by Zaptoys International Limited

Document preview loads when visible.

Document Details

FCC IDNEX-8390-49TX
Document ID314482
Document TypeSchematics
DescriptionCircuit Diagram
ApplicantZaptoys International Limited
Equipment ClassRC Car
Product Code839049TX
Application IDrjHckiP0rdllevgOjswl7g==
Application PurposeOriginal Equipment
Application Date2003-03-31
Frequency Range49.86 MHz
FRN0007200306
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-03-31
Available2003-03-31
Created2019-01-10
Modified2019-01-10
Pages1
File TypeAdobe Acrobat PDF
File Size28603
File SHA-256b7bcbb6bfed76c47bfcfd091e28e4eaaf6093a6a6975afba3044f1f2cdd66817
PDF Metadata ProducerGPL Ghostscript 9.25
FCC.gov SourcesFCC.gov 314482
