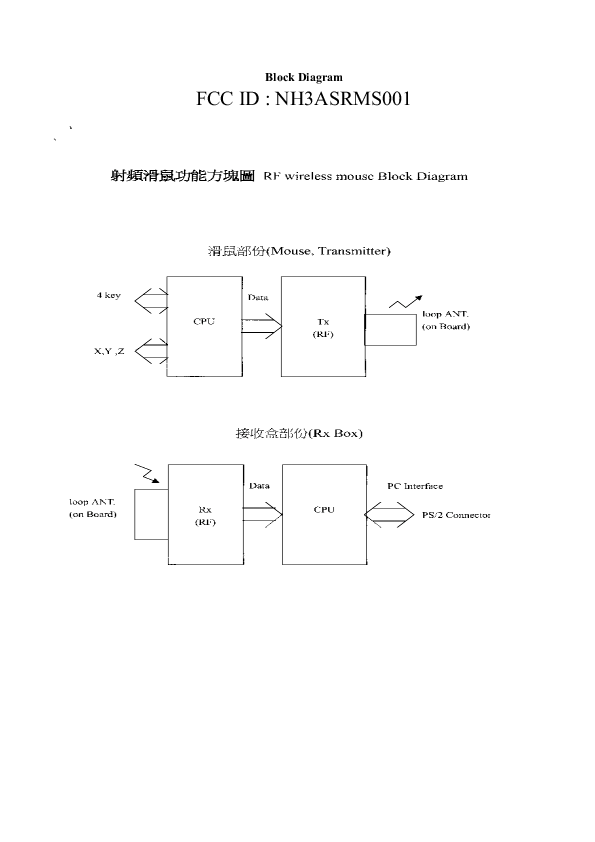

ASRMS001 27MHz RF Wireless Mouse Block Diagram - FCC ID NH3ASRMS001

FCC ID NH3ASRMS001

block diagram

27MHz RF Wireless Mouse

by Yuehua Electron Co Ltd of Zhuhai

Document preview loads when visible.

Document Details

FCC IDNH3ASRMS001
Document ID158513
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantYuehua Electron Co Ltd of Zhuhai
Equipment Class27MHz RF Wireless Mouse
Product CodeASRMS001
Application IDHEara6kgG+BkFmKeJi65CA==
Application PurposeOriginal Equipment
Application Date2001-07-05
Frequency Range26.96-27.28 MHz
FRN9999999999
Test FirmPEP Testing Laboratory
Certified ByFang Xian Yue General Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-07-09
Available2001-07-05
Created2001-06-04
Modified2001-06-04
Pages1
File TypeAdobe Acrobat PDF
File Size18576
File SHA-2568cf5ee26555f99c43dc2572e8dfd9faf32911506be21f887e21235d9f7e72826
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 158513
