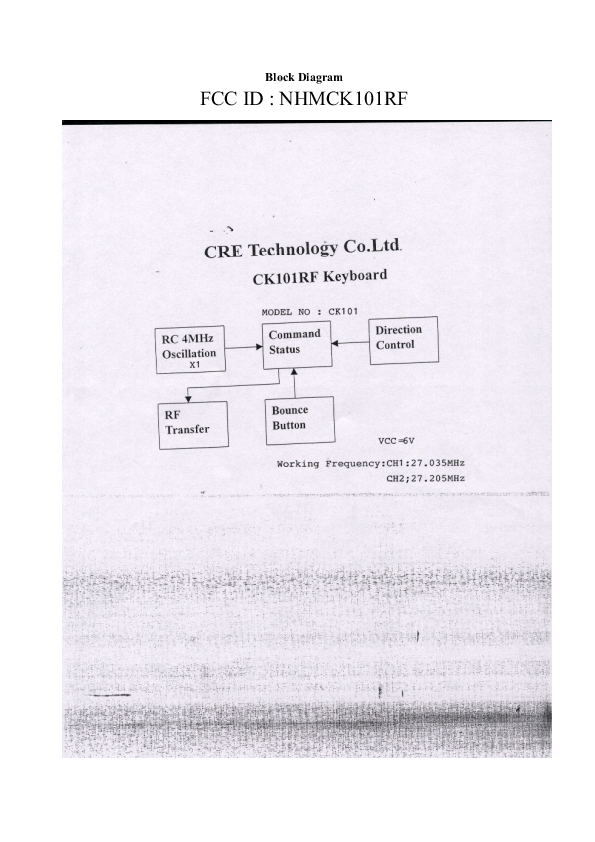

CK101RF RF Keyboard Block Diagram - FCC ID NHMCK101RF

FCC ID NHMCK101RF

block diagram

RF Keyboard

by CRE Technology Co Ltd

Document preview loads when visible.

Document Details

FCC IDNHMCK101RF
Document ID172182
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantCRE Technology Co Ltd
Equipment ClassRF Keyboard
Product CodeCK101RF
Application IDVbFKW8NKNc9eGGNVJTfCuQ==
Application PurposeOriginal Equipment
Application Date2001-09-28
Frequency Range27.035-27.205 MHz
FRN9999999999
Test FirmPEP Testing Laboratory
Certified ByAaron Peng Electronics Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-10-01
Available2001-09-28
Created2001-09-05
Modified2001-09-05
Pages2
File TypeAdobe Acrobat PDF
File Size390761
File SHA-256d64302ad8b9c302b672df104474636668e0ee04b976996e4724e6efd206e6818
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 172182
