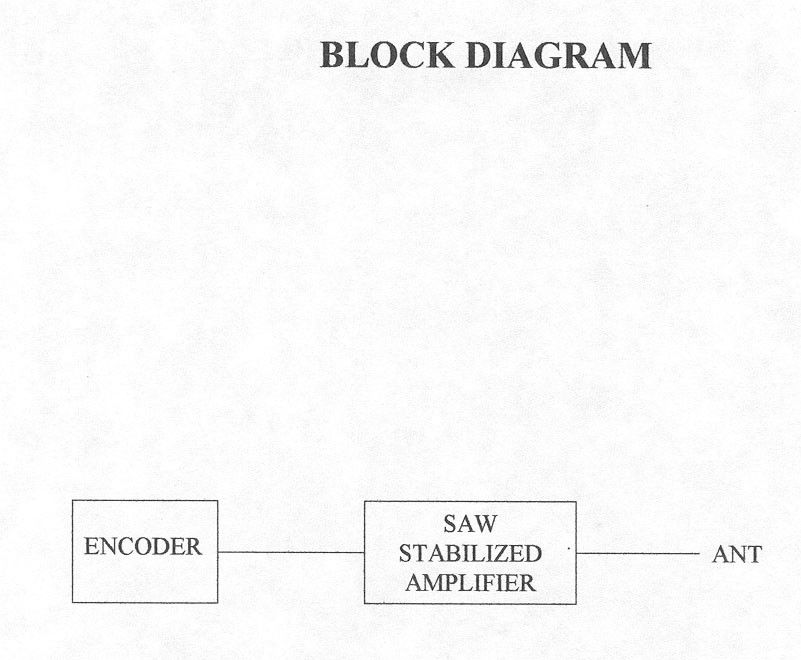

WB1U215 Car Security Block Diagram - FCC ID NHVWB1U215

FCC ID NHVWB1U215

block diagram

Car Security

by Tohoku Alps Co Ltd

block diagram

Document Details

FCC IDNHVWB1U215
Document ID107593
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantTohoku Alps Co Ltd
Equipment ClassCar Security
Product CodeWB1U215
Application IDfsx1w2pSDkrxUoKe6ErzqQ==
Application PurposeOriginal Equipment
Application Date2000-07-03
Frequency Range314.5-315.5 MHz
FRN0007746779
Certified ByRowland Johnson Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-07-03
Available2000-07-03
Pages0
File TypeJPEG Image
File Size82186
File SHA-256c6cee8f13f4c263cffaff5cdc6e3ff7d7408e6d95d661b044d33f07b48a5b097
FCC.gov SourcesFCC.gov 107593
