MESH8269 Bluetooth Module Teardown... - FCC ID NIR-MESH8269

FCC ID NIR-MESH8269

Int Photos

Bluetooth Module

by Shanghai Qiangling Electronic Co Ltd

Document preview loads when visible.

Document Details

FCC IDNIR-MESH8269
Document ID4693121
Document TypeInternal Photos
DescriptionInt Photos

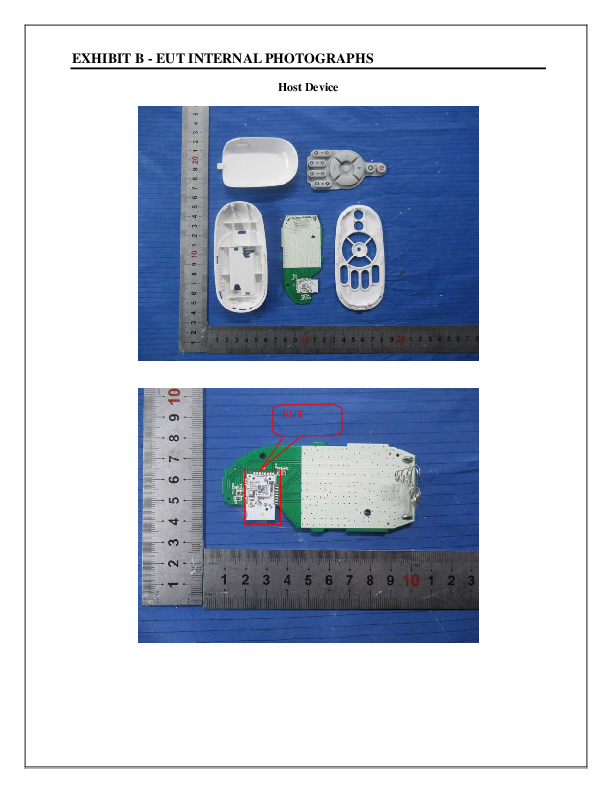

Document TitleEXHIBIT B_EUT INTERNAL PHOTOGRAPHS
ApplicantShanghai Qiangling Electronic Co Ltd
Equipment ClassBluetooth Module
Product CodeMESH8269
Application IDBNfjCPpW1dWiDtDGYvXr2A==
Application PurposeOriginal Equipment
Application Date2020-04-17
Frequency Range2402-2480 MHz
FRN0004269825
Test FirmBay Area Compliance Laboratories Corp. (Kunshan)
Certified ByCai Yihong
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentLimited Single Modular Approval
Composite DeviceNo
Composite PartNo
Submitted2020-04-17
Available2020-04-17
Created2020-04-14
Modified2020-04-18
Pages3
File TypeAdobe Acrobat PDF
File Size289505
File SHA-256b2fce17d36dfe540d54fcef0e63f74fce6d7057471bd3e8a3265bde96e1b7054
PDF Metadata Authorbaclks168
PDF Metadata ProducerAcrobat Distiller 11.0 (Windows) baclks168
FCC.gov SourcesFCC.gov 4693121
