TX67A Remote Control Transmitter Block Diagram - FCC ID NJQTX67A
FCC ID NJQTX67A

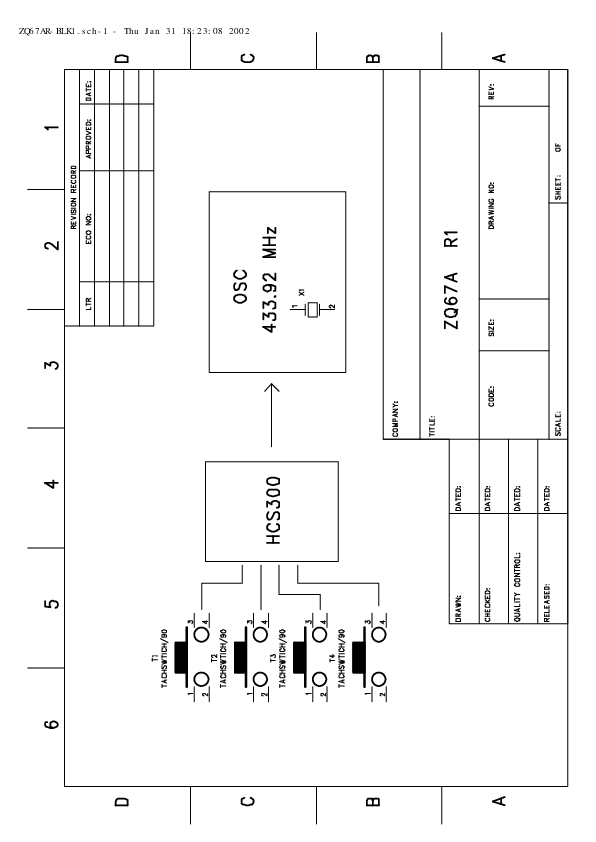

Block Diagram
Remote Control Transmitter
Document preview loads when visible.
Document Details
| FCC ID | NJQTX67A |
|---|---|
| Document ID | 226738 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Document Title | .穨.CAM output |
| Applicant | Wintecronics Ltd |
| Equipment Class | Remote Control Transmitter |
| Product Code | TX67A |
| Application ID | EJ1sJg7g+kvr6o3vrNszkg== |
| Application Purpose | Original Equipment |
| Application Date | 2002-02-19 |
| Frequency Range | 433.92 MHz |
| FRN | 0009936857 |
| Test Firm | BTL Inc. |
| Certified By | Apin Chang General Manager ( AGENT ) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2002-02-19 |
| Available | 2002-02-19 |
| Created | 2002-01-31 |
| Modified | 2002-01-31 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 13121 |
| File SHA-256 | ffc7b20b0a94a8aa6255b84e3075fe049d46a622e8e1391a03b3ac493a4ebeb7 |
| PDF Metadata Author | .穨.Ray |
| PDF Metadata Producer | .穨.C:\padspwr\LogicFiles\ZQ67AR-BLK1.sch - PowerLogic Acrobat PDFWriter 5.0 for Windows |
| FCC.gov Sources | FCC.gov 226738 |
