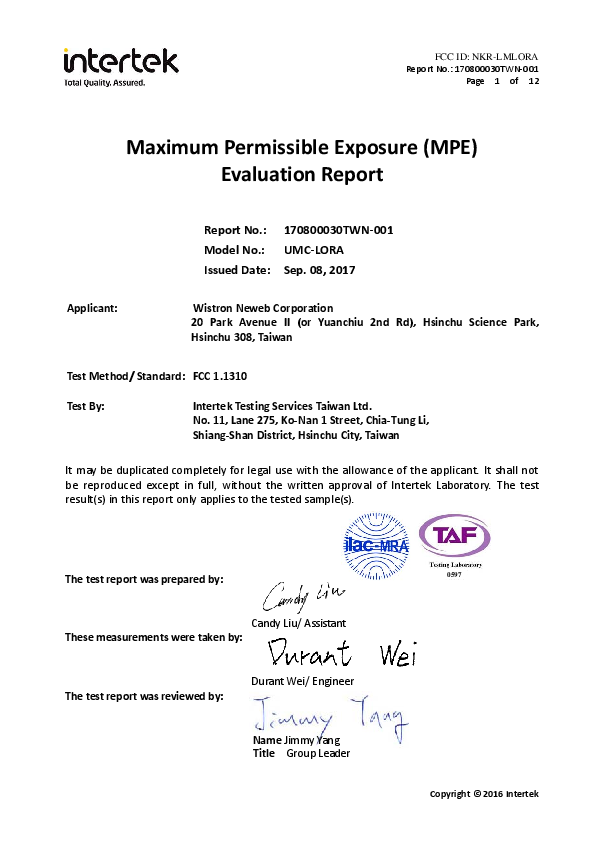

FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 1 of 12
Maximum Permissible Exposure (MPE)
Evaluation Report
Applicant:
Report No.:
170800030TWN‐001
Model No.:
UMC‐LORA
Issued Date:
Sep. 08, 2017
Wistron Neweb Corporation
20 Park Avenue II (or Yuanchiu 2nd Rd), Hsinchu Science Park,
Hsinchu 308, Taiwan
Test Method/ Standard: FCC 1.1310
Test By:
Intertek Testing Services Taiwan Ltd.
No. 11, Lane 275, Ko‐Nan 1 Street, Chia‐Tung Li,
Shiang‐Shan District, Hsinchu City, Taiwan
It may be duplicated completely for legal use with the allowance of the applicant. It shall not
be reproduced except in full, without the written approval of Intertek Laboratory. The test
result(s) in this report only applies to the tested sample(s).
0597
The test report was prepared by:
Candy Liu/ Assistant
These measurements were taken by:
Durant Wei/ Engineer
The test report was reviewed by:
Name Jimmy Yang
Title Group Leader
Copyright © 2016 Intertek
FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 2 of 12
Revision History
Report No.
170800030TWN‐001
Issue Date
Sep. 08, 2017
Revision Summary
Original report
FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 3 of 12
Table of Contents
Summary of Tests ...................................................................................................................... 4
1. General information .............................................................................................................. 5
1.1 Identification of the EUT ................................................................................................. 5
1.2 Antenna description ........................................................................................................ 5
1.3 Peripherals equipment .................................................................................................... 5
1.4 Description of the EUT .................................................................................................... 6
2. Test specifications.................................................................................................................. 7
2.1 Introduction ..................................................................................................................... 7
2.2 RF Exposure Limit ............................................................................................................ 8
2.3 RF Exposure calculations ................................................................................................. 10
2.4 Operation mode .............................................................................................................. 10
2.5 Test equipment ................................................................................................................ 11
2.6 Test Set‐up ....................................................................................................................... 11
3. Test results ............................................................................................................................. 12
FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 4 of 12
Summary of Tests
MPE Evaluation meet FCC OET No. 65: 1997, IEEE C95.1‐2005
Test
MPE Evaluation
Reference
FCC Guidelines for Human Exposure IEEE C95.1
Results
Complies
FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 5 of 12
1. General information
1.1 Identification of the EUT
Product:
Model No.:
Operating Frequency:
Channel Number:
Frequency of Each Channel
Modulation
Rated Power:
Power Cord:
Sample receiving date:
Sample condition:
Test Date(s):
UMC‐LORA
UMC‐LORA
902.7 MHz ~ 927.2 MHz
50 channels
902.7MHz + 0.5k, k = 0~49
FSK
DC 5 V From adapter
N/A
Aug. 2, 2017
Workable
Aug. 3, 2017 ~ Sep. 1, 2017
Note 1: The test report only allows to be revised within three years from its original issued date unless further standard or the requirement was noticed.
Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered.
Note 3: Except where explicitly agreed in writing, all work and services performed by Intertek is subject to our standard Terms and Conditions which can be obtained at our website:
http://www.intertek‐twn.com/terms/ . Intertek's responsibility and liability are limited to the terms and conditions of the agreement.
This report is made solely on the basis of your instructions and / or information and materials supplied by you and provide no warranty on the tested sample(s) be truly representative
of the sample source. The report is not intended to be a recommendation for any particular course of action, you are responsible for acting as you see fit on the basis of the report
results. Intertek is under no obligation to refer to or report upon any facts or circumstances which are outside the specific instructions received and accepts no responsibility to any
parties whatsoever, following the issue of the report, for any matters arising outside the agreed scope of the works. This report does not discharge or release you from your legal
obligations and duties to any other person. You are the only one authorized to permit copying or distribution of this report (and then only in its entirety). Any such third parties to
whom this report may be circulated rely on the content of the report solely at their own risk.
1.2 Antenna description
The EUT uses a permanently connected antenna.
Antenna Gain
Antenna Type
Connector Type
: 1.03 dBi
: Patch Antenna
: Fixed
1.3 Peripherals equipment
Peripherals
Brand
Model No.
Serial No.
Description of Data Cable
Notebook PC
DELL
Latitude E5420
HXYJBT1
Micro USB × 1 meter
Adapter
N/A
WA8078
N/A
N/A
SMCC
N/A
N/A
N/A
N/A
Interface Board
N/A
N/A
N/A
N/A
FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 6 of 12
1.4 Description of the EUT
The UMC‐LORA module is a daughter card that can be assembled/applied in the WNC’s SMCCs
(Smart Metering Communication Cards) including UMC‐A21LG, UMC‐I210C , UMC‐A21LG‐C and
UMC‐A21LG2‐R models. The differences among these 4 models are using different HW platforms
and they are for different meters and usages. The different between these four models doesn’t
affect the measurement results so we used UMC‐I210C for final testing.
FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 7 of 12
2. Test specifications
2.1 Introduction
The EUT operates in the 902.7 MHz~927.2MHz. Due to the EUT (include antenna) at its normal
operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile
Device.
The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum
output power and gain of the antenna were used to calculate the limited Power density (S) at 20
cm distance away from the product. The limit for Maximum Permissible Exposure (MPE)
specified in FCC 1.1310 and Safety Code 6 are followed.
According to 1.1307 (b)(1), systems operating under the provisions of this section shall be
operated in a manner that ensure that the public is not exposed to radio frequency energy level
in excess of the Commission’s guideline.
FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 8 of 12
2.2 RF Exposure Limit
According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the
environmental impact of human exposure to radio‐frequency (RF) radiation as specified in
1.1307(b) and KDB 447498 D01 General RF Exposure Guidance v06.
FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 9 of 12
FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 10 of 12
2.3 RF Exposure calculations
From §FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled
environment is (f/1500) mW/(cm2) for 300MHz to 1500MHz, f = frequency in MHz.
Power density (S) is calculated by the following formula:
S = (P * G)/4πR2
where, S = Power density (mW/cm2)
P = Output power to antenna (mW)
R = Distance between radiating structure and observation point (cm)
G = Gain of antenna in numeric
π = 3.1416
Example:
Assume a mobile device operates at 2412MHz and its maximum output power is 50mW,
and the maximum gain of antenna is 1 (numeric) /0dBi.
then the power density (S) = (50 * 1)/4*π*202 = 0.00995 (mW/cm2) (or = 0.0995 W/m2)
2.4 Operation mode
TX‐MODE is based on a telnet command, and the program can select different frequency.
The signal is maximized through rotation and placement in the three orthogonal axes.
X axis
Y axis
Z axis
After verifying three axes, we found the maximum electromagnetic field was occurred at X
axis. The final test data was executed under this configuration.
With individual verifying, the maximum output power were found out LoRa mod the final
tests were executed under these conditions recorded in this report individually.
FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 11 of 12
2.5 Test equipment
Equipment
Brand
Model No.
Serial No.
Calibration
Date
Next
Calibration
Date
Power Meter
Anritsu
ML2495A
0844001
2016/11/09
2017/11/08
Power Sensor
Anritsu
MA2411B
0738452
2016/11/09
2017/11/08
RF Cable
Mini‐Circuits
CBL‐4FT‐SMSM+
CB0003
2017/05/04
2018/05/03
Note: The above equipments are within the valid calibration period.
2.6 Test Set‐up
20 dB Attenuator
DC block
EUT
Power sensor
Power meter
Remark: Cable loss = 1.5 dB
FCC ID: NKR-LMLORA
Report No.: 170800030TWN‐001
Page 12 of 12
3. Test results
Output
power Tune‐up Max
Max
Limit of
Antenna
Frequency
to
Power Tune‐up Tune‐up Power density power
Distance
Gain0
(MHz)
antenna Tolerance Power
Power
(mW/cm2)
density
(cm)
(numeric)
(dB)
(dBm)
(mW)
(mW/cm2)
(dBm)
902.7
1.27
17.04
2.00
19.04
80.17
0.020218
0.6
20
915.2
1.27
17.50
2.00
19.50
89.13
0.022477
0.6
20
927.2
1.27
17.65
2.00
19.65
92.26
0.023266
0.6
20
The Notice in Installation Manual has been stated as below:
While installing and operating this transmitter, the radio frequency exposure limit of 0.6 mW/
(cm2) may be exceeded at distances close to the transmitter. Therefore, the user must maintain a
minimum distance of 20 cm from the device at all time.
There are other two wireless techniques (Zigbee and LTE) on the WNC SMCC. The FCC ID of this
SMCC is NKR‐CB1GI210C. The worst value of Zigbee mode is 0.0437 mW/ cm2. The worst value
of LTE mode is 0.1232 mW/ cm2. When the Zigbee mode and LTE mode and LoRa are
transmitting at the same time, the worst MPE value is 0.0437+0.1232+0.023266 =0.190166 mW/
cm2. It is also met the limit.
Download: LMLORA UMC-LORA RF Exposure Info 170800030TWN-001_MPE_UMC-LORA Wistron NeWeb Corporation
Mirror Download [FCC.gov]LMLORA UMC-LORA RF Exposure Info 170800030TWN-001_MPE_UMC-LORA Wistron NeWeb Corporation
Document ID3630241
Application IDiC/yS8hdJm8OSXBtc58GKQ==
Document DescriptionMPE Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeRF Exposure Info
Display FormatAdobe Acrobat PDF - pdf
Filesize37.49kB (468608 bits)
Date Submitted2017-11-07 00:00:00
Date Available2017-11-07 00:00:00
Creation Date2017-11-06 15:11:49
Producing SoftwareAcrobat Distiller 7.0.5 (Windows)
Document Lastmod2017-11-06 15:11:49
Document Title170800030TWN-001_MPE_UMC-LORA
Document CreatorPScript5.dll Version 5.2.2
Document Author: candy.liu

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.4
Linearized                      : No
XMP Toolkit                     : 3.1-701
Producer                        : Acrobat Distiller 7.0.5 (Windows)
Creator Tool                    : PScript5.dll Version 5.2.2
Modify Date                     : 2017:11:06 15:11:49+08:00
Create Date                     : 2017:11:06 15:11:49+08:00
Format                          : application/pdf
Title                           : Microsoft Word - 170800030TWN-001_MPE_UMC-LORA
Creator                         : candy.liu
Document ID                     : uuid:96d8b545-3d92-4ae7-92aa-75b60a3395ad
Instance ID                     : uuid:dab02ac0-7bca-407f-a0bc-cc6f6a4f75f3
Page Count                      : 12
Has XFA                         : No
Author                          : candy.liu
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2017
