VMC9628RV1 2G/3G/4G Module Label Diagram - FCC ID NKR-VMC-9628RV1
FCC ID NKR-VMC-9628RV1

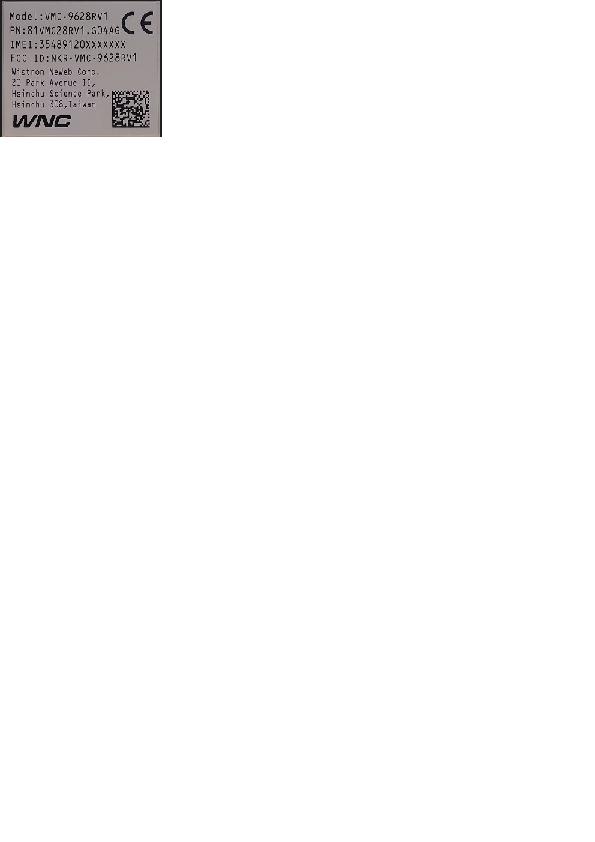

Label Sample
2G/3G/4G Module
Barcode information
Validated product identifiers extracted from the generated document image; label documents may also include identifiers from available document text.
Document preview loads when visible.
Document Details
| FCC ID | NKR-VMC-9628RV1 |
|---|---|
| Document ID | 6979926 |
| Document Type | ID Label/Location Info |
| Description | Label Sample |
| Document Title | Snipping Tool Print Job |
| Applicant | Wistron NeWeb Corporation |
| Equipment Class | 2G/3G/4G Module |
| Product Code | VMC9628RV1 |
| Application ID | 0mWVJQqNTdbBDw2lvkWKwA== |
| Application Purpose | Original Equipment |
| Application Date | 2023-12-11 |
| Frequency Range | 2502.5-2567.5 MHz |
| FRN | 0006053789 |
| Test Firm | Bureau Veritas CPS(H.K.) Ltd., Taoyuan Branch |
| Certified By | Trista Tsai Specialist |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 06/08/2024 |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2023-12-11 |
| Available | 2023-12-11 |
| Created | 2023-09-26 |
| Modified | 2023-10-02 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 30732 |
| File SHA-256 | b741ecb5dcaa8a119c992e2d2b305869d408267b9c8886a8e26b181ec6f7ba56 |
| PDF Metadata Author | emfan |
| PDF Metadata Producer | emfan Microsoft: Print To PDF |
| FCC.gov Sources | FCC.gov 6979926 |
