27078TX RC Toy - Transmitter Schematics - FCC ID NLB27078TX
FCC ID NLB27078TX
schematics
RC Toy - Transmitter
Document preview loads when visible.
Document Details
| FCC ID | NLB27078TX |
|---|---|
| Document ID | 520990 |
| Document Type | Schematics |

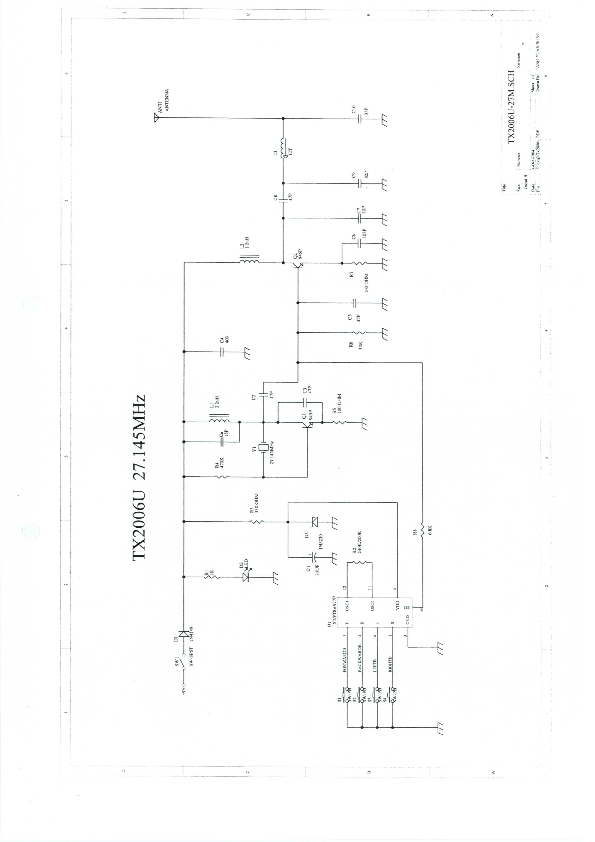

| Description | schematics |
| Applicant | Dickie Toys Hong Kong Ltd. |
| Equipment Class | RC Toy - Transmitter |
| Product Code | 27078TX |
| Application ID | u5Db2NgBsARS+0tmvCCNQw== |
| Application Purpose | Original Equipment |
| Application Date | 2005-03-04 |
| Frequency Range | 27.145 MHz |
| FRN | 0008231664 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | Nicky Janetschek |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-03-07 |
| Available | 2005-03-04 |
| Created | 2005-02-15 |
| Modified | 2005-02-15 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 234147 |
| File SHA-256 | 7a9f9cec68bab64c159ab33b97e867d7f009b84264c292129d2efa0c41d4eab0 |
| FCC.gov Sources | FCC.gov 520990 |
