DIGIMAX220SE Digital Camera Block Diagram - FCC ID NLMDIGIMAX220SE
FCC ID NLMDIGIMAX220SE

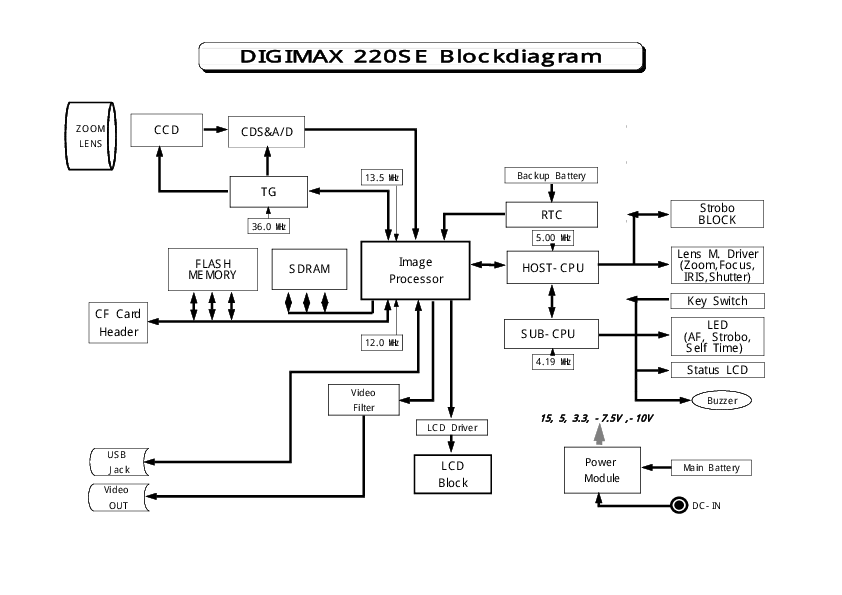

Block Diagram
Digital Camera
Document preview loads when visible.
Document Details
| FCC ID | NLMDIGIMAX220SE |
|---|---|
| Document ID | 177252 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | Hanwha Techwin Co., Ltd. |
| Equipment Class | Digital Camera |
| Product Code | DIGIMAX220SE |
| Application ID | cndSgnnYhNVpQFA8hiwnxA== |
| Application Purpose | Original Equipment |
| Application Date | 2001-11-01 |
| FRN | 0020229910 |
| Test Firm | CTK Co., Ltd. |
| Certified By | Jasen Hyung Director ( AGENT ) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2001-11-01 |
| Available | 2001-11-01 |
| Created | 2001-10-30 |
| Modified | 2001-10-30 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 63220 |
| File SHA-256 | 323c1c9c321b9e36359124f9d4d42d92f6fc769faabc8401a24e0996509b6e4e |
| PDF Metadata Producer | Acrobat Distiller 5.0 (Windows) |
| FCC.gov Sources | FCC.gov 177252 |
