FCC ID NLMSNSR0810W
Station Hub
by Hanwha Techwin Co., Ltd.
Grantee Code: NLM Product Code: SNSR0810W
Latest application date: 2017-02-27
Device Images
FCC ID Device Details
| FCC ID | NLMSNSR0810W |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | NLM |
| Product Code | SNSR0810W |
| Applicant Business | Hanwha Techwin Co., Ltd. 🇰🇷 |
| Related Domains |  hanwha.com |
| Equipment Class | Station Hub |
| Test Firm | KES Co., Ltd |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2017-02-27 |
| 5180-5240 MHz | Original Equipment | 2017-02-27 |
| 920.6-922 MHz | Original Equipment | 2017-02-27 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2017-02-27 | PDF 2.5 MB |
| Internal photos | Internal Photos | 2017-02-27 | PDF 3.4 MB |
| External photos | External Photos | 2017-02-27 | PDF 137.7 KB |
| Label format and location | ID Label/Location Info | 2017-02-27 | PDF 32.3 KB |

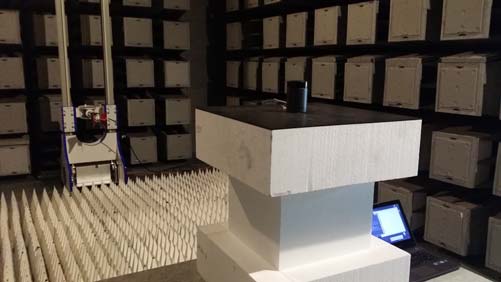

| Test setup photos | Test Setup Photos | 2017-02-27 | PDF 186.2 KB |

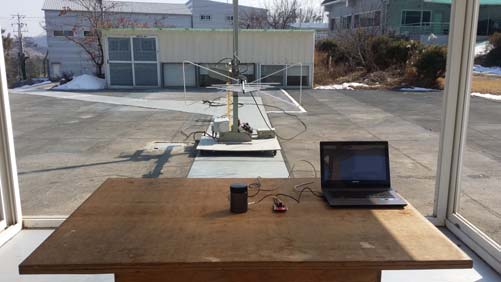

| Test setup photos | Test Setup Photos | 2017-02-27 | PDF 185.7 KB |
| DFS test report | Test Report | 2017-02-27 | PDF 1.3 MB |
| RF Test report(247)_SNS-R0810W_Dual band | Test Report | 2017-02-27 | PDF 3.3 MB |
| RF Test report(247)_SNS-R0810W_Single band_rev1 | Test Report | 2017-02-27 | PDF 5.1 MB |
| Test report | Test Report | 2017-02-27 | PDF 1.9 MB |
| Test report 1 of 3 | Test Report | 2017-02-27 | PDF 4.2 MB |
| Test report 2 of 3 | Test Report | 2017-02-27 | PDF 5.5 MB |
| Test report 3 of 3 | Test Report | 2017-02-27 | PDF 4.5 MB |
| Attestation WIFI capability | Attestation Statements | 2017-02-27 | PDF 18.4 KB |
| Declaration for DFS client devices_SNS-R0810W_rev1 | Attestation Statements | 2017-02-27 | PDF 79 KB |
| attestation WIFI capability | Attestation Statements | 2017-02-27 | PDF 18.4 KB |
| Agent authorization | Cover Letter(s) | 2017-02-27 | PDF 22.6 KB |
| Request for confidentiality | Cover Letter(s) | 2017-02-27 | PDF 19.8 KB |
| Request for confidentiality letter | Cover Letter(s) | 2017-02-27 | PDF 19.8 KB |
| RF exposure info | RF Exposure Info | 2017-02-27 | PDF 85.6 KB |
| Block diagram Metadata only | Block Diagram | PDF 53 KB | |
| Schematics Metadata only | Schematics | PDF 2.2 MB | |
| Antenna specification Metadata only | Operational Description | PDF 4 MB | |
| Operational description Metadata only | Operational Description | PDF 149.2 KB | |
| Parts list Metadata only | Parts List/Tune Up Info | PDF 482.3 KB |
Application Information
| Application ID | r8jxPTV/IBBgFWtFdqhMrQ== |
|---|---|
| Final Action Date | 2017-02-27 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0020229910 |
| Model | SNSR0810W |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Station Hub |
| Responsible Party | JEISOON KANG, Principal Research Engineer, js2002.kang@hanwha.com , 82-70-7147-8376 |
| Test Firm | Insung Ryu, KES Co., Ltd, kes@kes.co.kr  , 82-31-425-6200 |
| TCB Email | LST.FRE.CertNotice@ul.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. This device contains two WLAN modules: single band operating in 2.4GHz only and dual band operating in both 2.4GHz and 5GHz. Both WLAN modules support 20/ 40MHz bandwidth for 802.11n. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter except those documented in this filing. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. |
