P0013702 REMOTE CONTROL/SECURITY DEVICE... - FCC ID NMPP0013702

FCC ID NMPP0013702

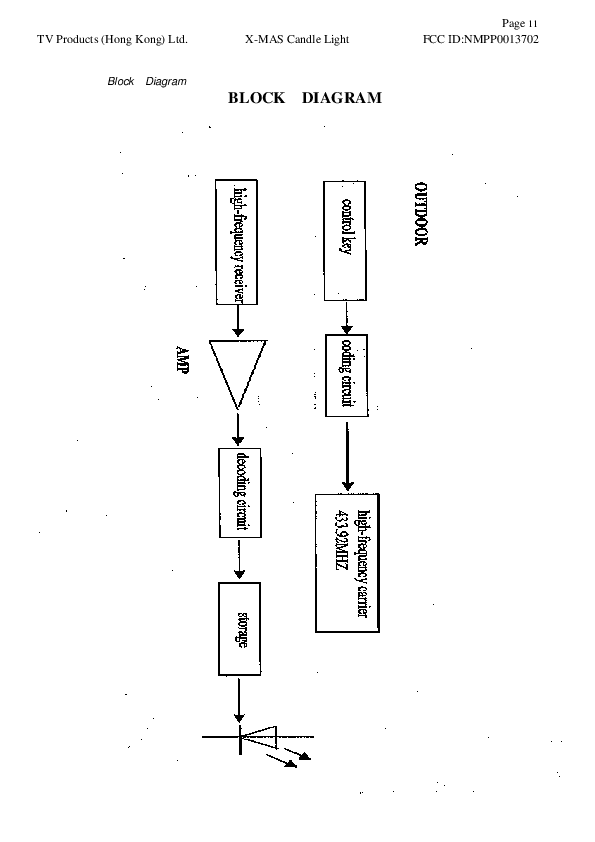

BLOCK DIAGRAM

REMOTE CONTROL/SECURITY DEVICE TRANSCEIVER

by TV Products (Hong Kong) Ltd

Document preview loads when visible.

Document Details

FCC IDNMPP0013702
Document ID596628
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
ApplicantTV Products (Hong Kong) Ltd
Equipment ClassREMOTE CONTROL/SECURITY DEVICE TRANSCEIVER
Product CodeP0013702
Application IDHG0Ua+JXDQ5GtfJjo8Gj1Q==
Application PurposeOriginal Equipment
Application Date2005-10-27
Frequency Range433.92 MHz
FRN0013988522
Test FirmAudix Technology (Shenzhen) Co.
Certified ByVICKY VIKRANT BOBADE Q.C. INSPECTOR
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-10-27
Available2005-10-27
Created2005-10-21
Modified2005-10-21
Pages1
File TypeAdobe Acrobat PDF
File Size8828
File SHA-25627be4a2d74b6fcdf95b2f43264e1971b3cd99098940036006d9ceffa989c0631
PDF Metadata ProducerAcrobat Distiller 4.05 for Windows
FCC.gov SourcesFCC.gov 596628
