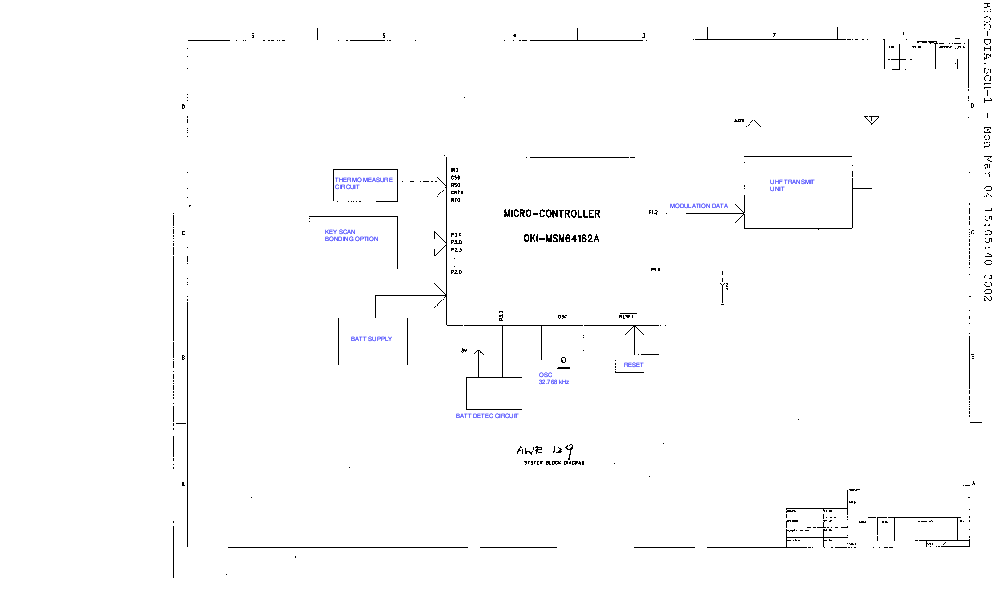

AWR1291 Grill Alert (Transmitter) Block Diagram - FCC ID NMTAWR129-1

FCC ID NMTAWR129-1

Block Diagram

Grill Alert (Transmitter)

by IDT Technology Limited

Document preview loads when visible.

Document Details

FCC IDNMTAWR129-1
Document ID313954
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantIDT Technology Limited
Equipment ClassGrill Alert (Transmitter)
Product CodeAWR1291
Application ID1xAWi0qvFI8n+uvMwQlqFQ==
Application PurposeOriginal Equipment
Application Date2003-03-27
Frequency Range433.92 MHz
FRN0018382440
Test FirmIntertek Testing Services Hong Kong
Certified ByDerek Leung Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-03-27
Available2003-03-27
Created2003-03-17
Modified2003-03-17
Pages2
File TypeAdobe Acrobat PDF
File Size57974
File SHA-2565b5aaefaf71e07a928bd0d3dd2940ba87041df1848b841cd3d2f9675558bf2d7
PDF Metadata ProducerAcrobat 5.0 Scan Plug-in for Windows Acrobat 5.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 313954
