RM818PA01 Cool RF Projection Clock with... - FCC ID NMTRM818PA-01

FCC ID NMTRM818PA-01

Block Diagram

Cool RF Projection Clock with Animated Projection

by IDT Technology Limited

Document preview loads when visible.

Document Details

FCC IDNMTRM818PA-01
Document ID486665
Document TypeBlock Diagram
DescriptionBlock Diagram

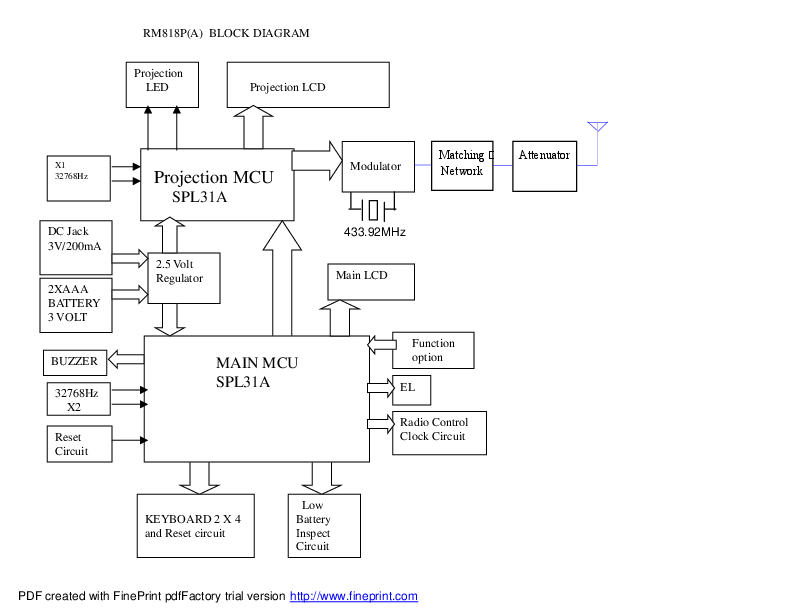

Document TitleRM818PA BLOCK DIAGRAM
ApplicantIDT Technology Limited
Equipment ClassCool RF Projection Clock with Animated Projection
Product CodeRM818PA01
Application IDlgGo1I+KawLrikTM0ROvVg==
Application PurposeOriginal Equipment
Application Date2004-11-08
Frequency Range433.93 MHz
FRN0018382440
Test FirmIntertek Testing Services Hong Kong
Certified ByDerek Leung Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-11-08
Available2004-11-08
Created2004-09-22
Modified2004-11-05
Pages1
File TypeAdobe Acrobat PDF
File Size122445
File SHA-2564b35a55481e65ffbf35004e51ecb35cca7d5c8e7e0a299f2e8cf1487da0e2680
PDF Metadata Authorpetercheung
PDF Metadata ProducerpdfFactory v1.50 (Windows 95) petercheung
FCC.gov SourcesFCC.gov 486665
