8TX Security Transmitter Schematics - FCC ID NNK8TX
FCC ID NNK8TX

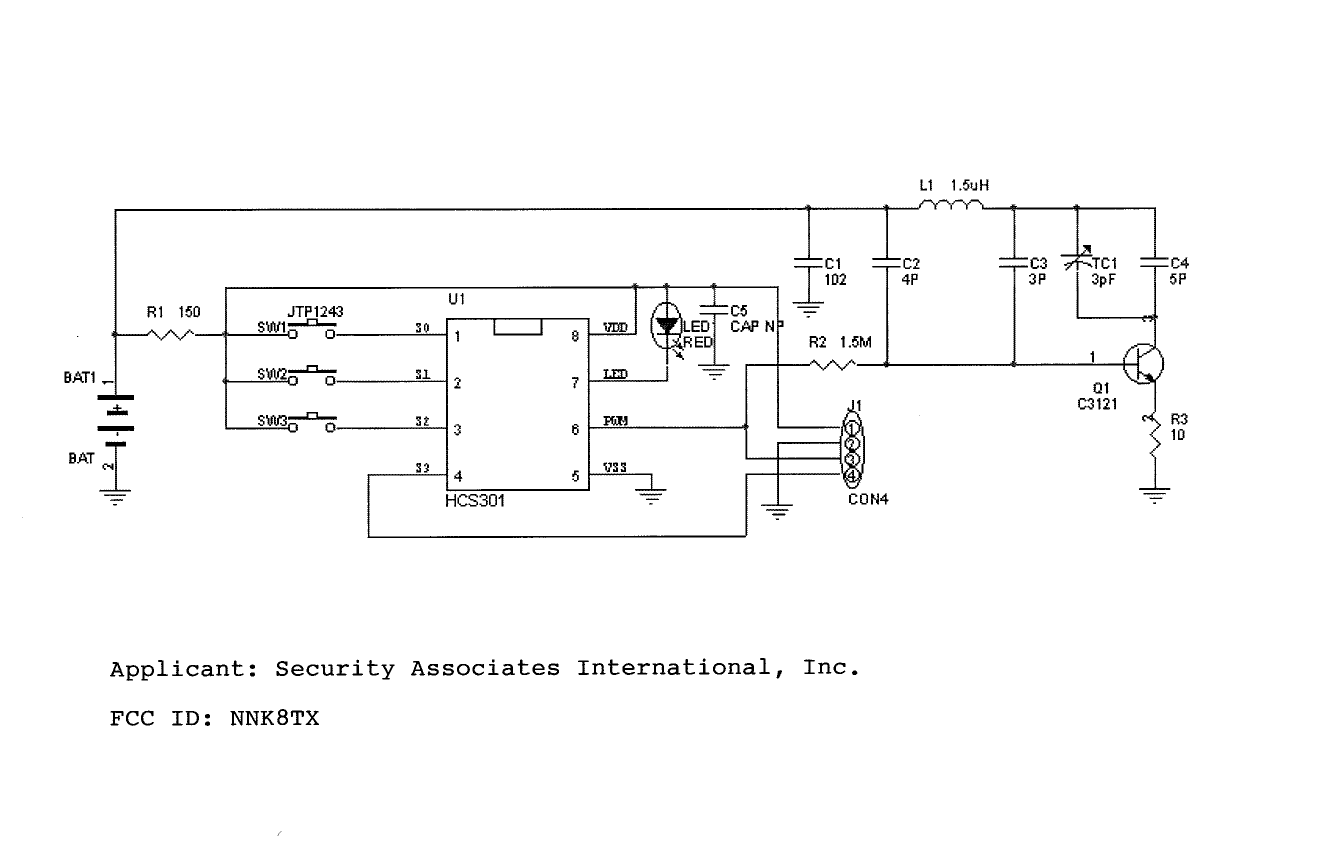

schematics
Security Transmitter
Document preview loads when visible.
Document Details
| FCC ID | NNK8TX |
|---|---|
| Document ID | 323758 |
| Document Type | Schematics |
| Description | schematics |
| Applicant | Security Associates International Inc |
| Equipment Class | Security Transmitter |
| Product Code | 8TX |
| Application ID | /x6bTF6UCzorilWGU83/YQ== |
| Application Purpose | Original Equipment |
| Application Date | 2003-05-06 |
| Frequency Range | 305-306 MHz |
| FRN | 0008899502 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | Andy Wiggins |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-05-07 |
| Available | 2003-05-06 |
| Created | 2019-01-11 |
| Modified | 2019-01-11 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 24336 |
| File SHA-256 | e3bb68e7d675255e1089aa62e339830ced2d2261a2c5f79b2d3cf5cd65ae66e9 |
| PDF Metadata Producer | GPL Ghostscript 9.25 |
| FCC.gov Sources | FCC.gov 323758 |
