M40004 Crane Remote Control Transmitter Block... - FCC ID NO9M40004

FCC ID NO9M40004

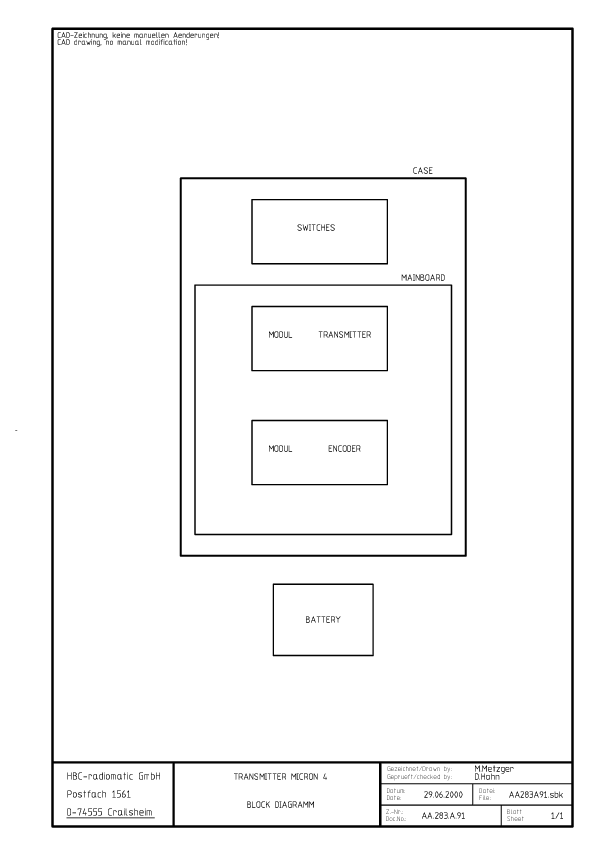

block diagram

Crane Remote Control Transmitter

by HBC-radiomatic GmbH

Document preview loads when visible.

Document Details

FCC IDNO9M40004
Document ID170364
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantHBC-radiomatic GmbH
Equipment ClassCrane Remote Control Transmitter
Product CodeM40004
Application IDcUpsHhFoIrS7wKdJwYlRXw==
Application PurposeOriginal Equipment
Application Date2001-09-17
Frequency Range902.3-918 MHz
FRN0005899695
Test FirmMET Laboratories, Inc.
Certified ByChris Harvey Director, EMC Laboratory
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-09-20
Available2001-09-17
Created2000-10-12
Modified2000-10-27
Pages1
File TypeAdobe Acrobat PDF
File Size18877
File SHA-256634e7e6a45401bb48ca2076bdcf6fc201b2ed82adac10618e57b98efa92b1482
PDF Metadata ProducerAcrobat Distiller 4.05 for Windows
FCC.gov SourcesFCC.gov 170364
