AW872TX 900MHz Wireless Transmitter... - FCC ID NOY-AW872TX

FCC ID NOY-AW872TX

Technical Description

900MHz Wireless Transmitter

by Atom Industrial Limited

Document preview loads when visible.

Document Details

FCC IDNOY-AW872TX
Document ID781654

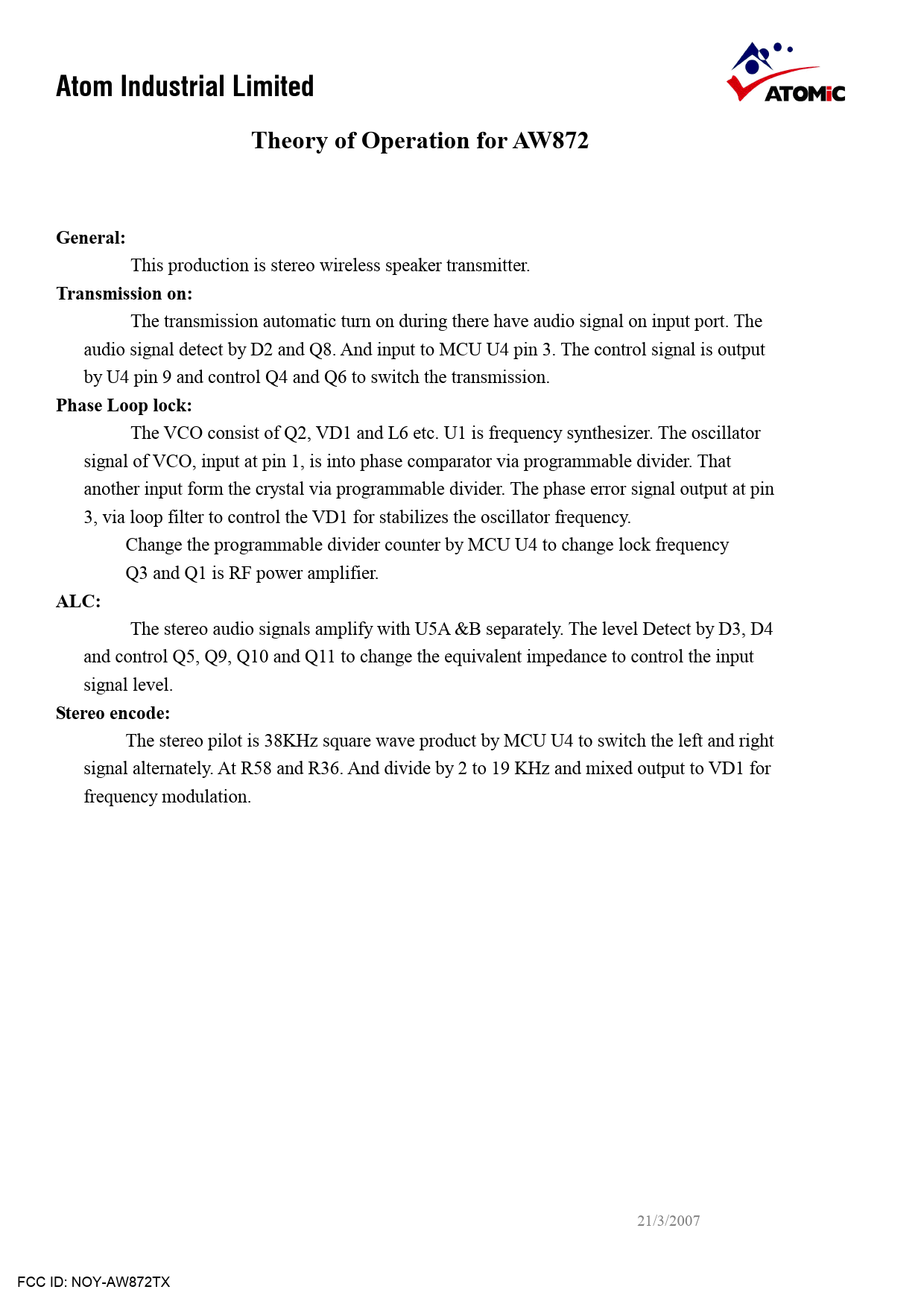

Document TypeOperational Description
DescriptionTechnical Description
Document Titletheory for operation
ApplicantAtom Industrial Limited
Equipment Class900MHz Wireless Transmitter
Product CodeAW872TX
Application IDbUcp8LkHqYIrJRX91KXX3g==
Application PurposeOriginal Equipment
Application Date2007-04-17
Frequency Range912.4-913.6 MHz
FRN0019723881
Test FirmIntertek Testing Services Hong Kong
Certified ByBen Ho Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2007-04-17
Available2007-04-17
Created2007-04-18
Modified2007-04-18
Pages17
File TypeAdobe Acrobat PDF
File Size1343297
File SHA-256936f0c08b486cdb022e403c8fa9efc572d80ff1f1abb85da07538321bf8eb117
PDF Metadata AuthorAdministrator@AT11
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata Producer5D PDF Creator v1.52.582
FCC.gov SourcesFCC.gov 781654
