53788 Mindstorm-NxT Teardown Internal Photos - FCC ID NPI53788
FCC ID NPI53788

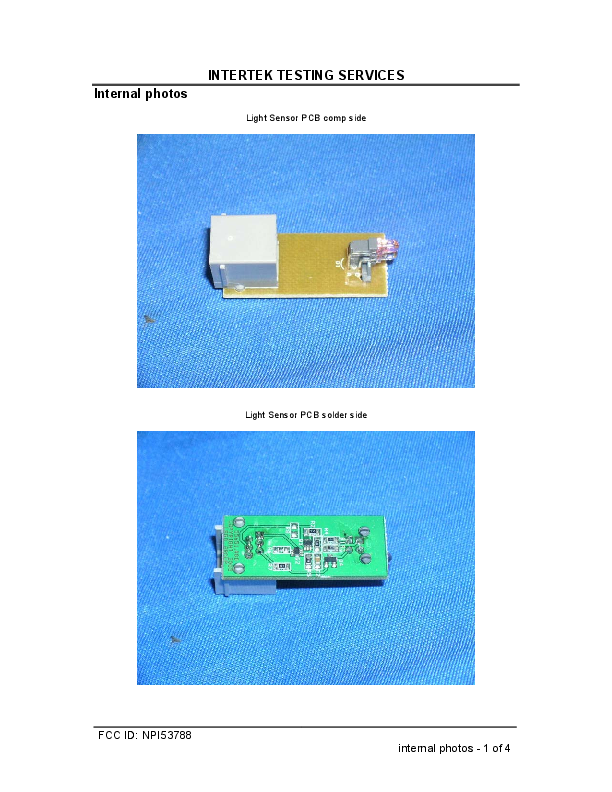

Internal Photos 3
Mindstorm-NxT
Document preview loads when visible.
Document Details
| FCC ID | NPI53788 |
|---|---|
| Document ID | 696114 |
| Document Type | Internal Photos |
| Description | Internal Photos 3 |
| Document Title | 696114.DOC |
| Applicant | LEGO Systems Inc |
| Equipment Class | Mindstorm-NxT |
| Product Code | 53788 |
| Application ID | Yh5HrXEOn2WmBT1mCMIlKA== |
| Application Purpose | Original Equipment |
| Application Date | 2006-08-21 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0022351803 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Tommy Leung Assistant Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2006-08-22 |
| Available | 2006-08-21 |
| Created | 2006-08-22 |
| Modified | 2006-08-22 |
| Pages | 4 |
| File Type | Microsoft Word |
| File Size | 2668033 |
| File SHA-256 | 59d6afcbca73aec324a03551e51ea0ee00f9d5bb68fce9b8e59ee0c3b9bdc3ba |
| PDF Metadata Author | Administrator |
| PDF Metadata Creator | PScript5.dll Version 5.2 |
| PDF Metadata Producer | Acrobat Distiller 5.0.5 (Windows) |
| FCC.gov Sources | FCC.gov 696114, FCC.gov 696121, FCC.gov 696118, FCC.gov 696100 |
