AM1100 Wireless Nokia Battery Pack Block Diagram - FCC ID NQ2AM1100

FCC ID NQ2AM1100

Block Diagram

Wireless Nokia Battery Pack

by Advanced Mobile Solutions, Inc.

Document preview loads when visible.

Document Details

FCC IDNQ2AM1100
Document ID253137
Document TypeBlock Diagram
DescriptionBlock Diagram

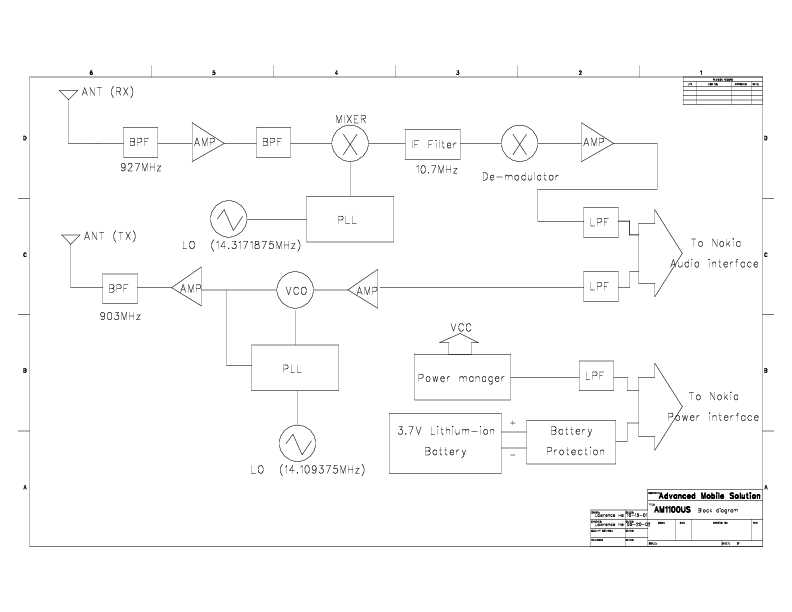

Document TitleCAM output
ApplicantAdvanced Mobile Solutions, Inc.
Equipment ClassWireless Nokia Battery Pack
Product CodeAM1100
Application IDt8ZslSznpjvSCpq4p1JI/g==
Application PurposeOriginal Equipment
Application Date2002-06-27
Frequency Range903 MHz
FRN0007304512
Test FirmCompliance Certification Services Inc
Certified BySteve Cheng EMC Engineering Manager ( AGENT )
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2002-06-27
Available2002-06-27
Created2002-06-04
Modified2002-06-04
Pages1
File TypeAdobe Acrobat PDF
File Size27387
File SHA-256495c6420e78b65d4002c4bb659b62bf9d08e2363cb8e4a7071081d953ccf9262
PDF Metadata Authorkpark
PDF Metadata ProducerF:\Project\R2 & R2N PRODUCTION FILES\R2N-US\AM1100US Block diagram.sch - PowerLogic Acrobat PDFWriter 4.0 for Windows NT
FCC.gov SourcesFCC.gov 253137
