WIRELESS SECURITY/SAFETY ALARM SYSTEM WITH AUTO DIALER
Document preview loads when visible.
Document Details
| FCC ID | NS3-T055S |
|---|---|
| Document ID | 1393469 |
| Document Type | Schematics |
| Description | Schematics |

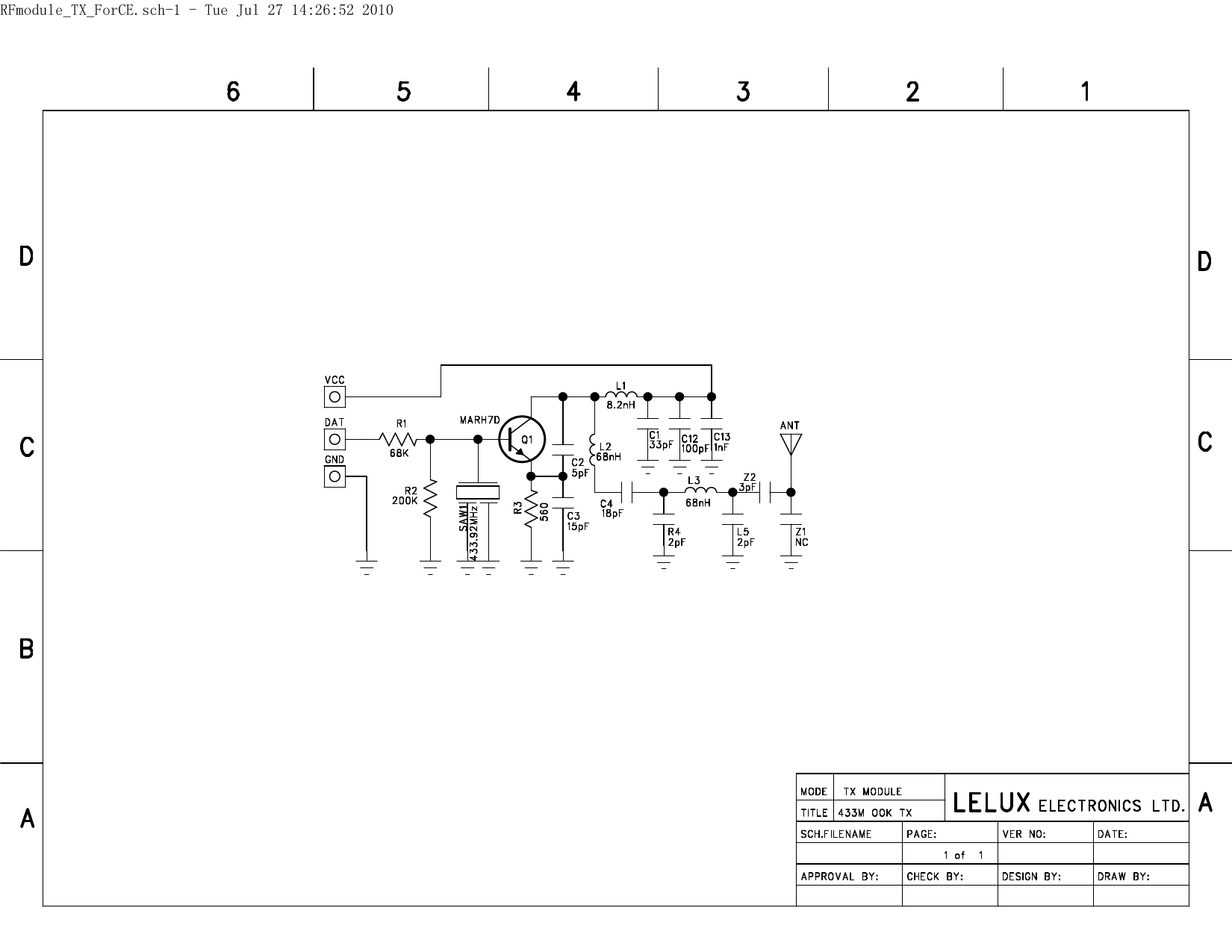

| Document Title | RFmodule_TX01_V10 |
| Applicant | Lelux Electronics Ltd |
| Equipment Class | WIRELESS SECURITY/SAFETY ALARM SYSTEM WITH AUTO DIALER |
| Product Code | T055S |
| Application ID | ZC54FHD3fDjcmDRRXNUUTw== |
| Application Purpose | Original Equipment |
| Application Date | 2010-12-20 |
| Frequency Range | 433.92 MHz |
| FRN | 0013370796 |
| Test Firm | ATC Laboratory Co., Ltd |
| Certified By | Luke Luo |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2010-12-20 |
| Available | 2010-12-20 |
| Created | 2010-07-27 |
| Modified | 2010-12-13 |
| Pages | 4 |
| File Type | Adobe Acrobat PDF |
| File Size | 342614 |
| File SHA-256 | 4c39c7c01ac71cc49ec0bb640d1af6fdfc4cecab09d451a6d254922b928c9dbe |
| PDF Metadata Author | MorseWong@LELUX-MORSE |
| PDF Metadata Creator | PScript5.dll Version 5.2.2 |
| PDF Metadata Producer | 5D PDF Creator v1.52.582 |
| FCC.gov Sources | FCC.gov 1393469 |
