1396749RX RC Toy Block Diagram - FCC ID NS613967-49RX
FCC ID NS613967-49RX

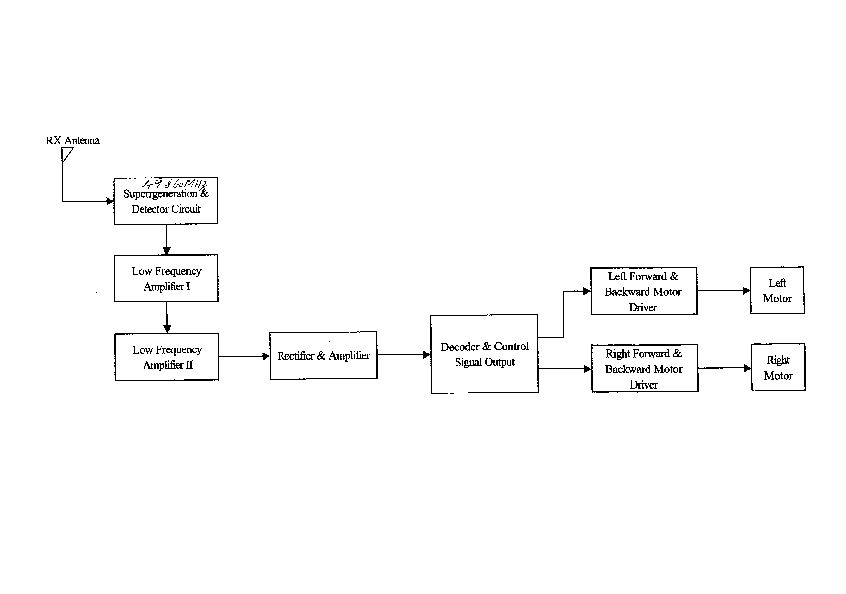

Block Diagram
RC Toy
Document preview loads when visible.
Document Details
| FCC ID | NS613967-49RX |
|---|---|
| Document ID | 336503 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | Manley Toys Ltd |
| Equipment Class | RC Toy |
| Product Code | 1396749RX |
| Application ID | +/l27qa8zTScd0F3VhAecA== |
| Application Purpose | Original Equipment |
| Application Date | 2003-06-30 |
| Frequency Range | 49.86 MHz |
| FRN | 0017982976 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Wilbur Ng Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2003-06-30 |
| Available | 2003-06-30 |
| Created | 2003-05-15 |
| Modified | 2003-05-15 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 12423 |
| File SHA-256 | bf025276a91baf8e348726c2cfcfb4dd957febdeb04652a75cc8c89fdb5e0903 |
| PDF Metadata Author | ITS ELECTRIC TOY |
| PDF Metadata Producer | HP 9100C Digital Sender |
| FCC.gov Sources | FCC.gov 336503 |
