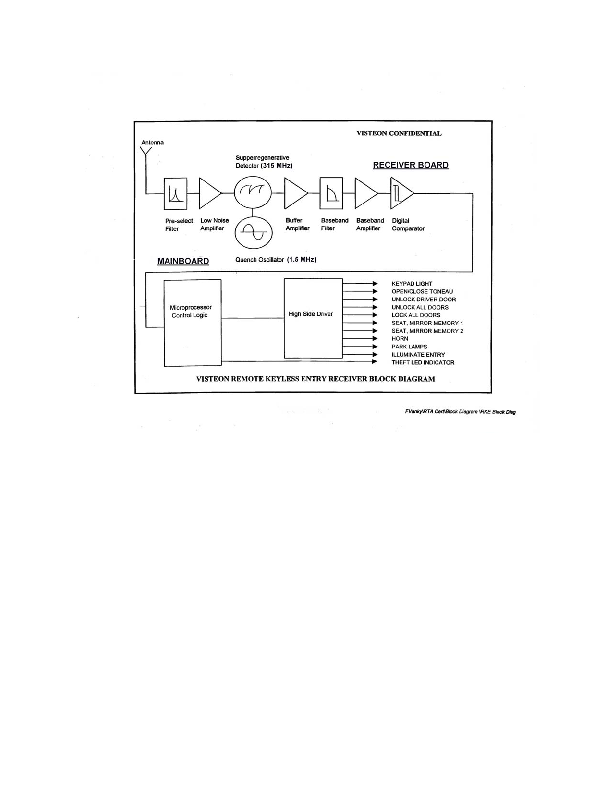

315SIPSR Automotive Receiver Block Diagram - FCC ID NT8-315-SIPSR

FCC ID NT8-315-SIPSR

Block Diagram

Automotive Receiver

by Visteon Corporation

Document preview loads when visible.

Document Details

FCC IDNT8-315-SIPSR
Document ID301957
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleFotoCanvas print job
ApplicantVisteon Corporation
Equipment ClassAutomotive Receiver
Product Code315SIPSR
Application IDKpH2cmPi9YpXw5n7z7O+rg==
Application PurposeOriginal Equipment
Application Date2003-02-10
Frequency Range315 MHz
FRN0007336639
Test FirmUniversity of Michigan
Certified ByValdis V. Liepa Research Scientist
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-02-10
Available2003-02-10
Created2003-02-05
Modified2003-02-06
Pages1
File TypeAdobe Acrobat PDF
File Size69478
File SHA-256dce57a1d18271da23d379398e4d02676982a2d03a4c5df5ccb8596df90f36fe3
PDF Metadata Authorfred
PDF Metadata ProducerAcrobat Distiller 5.0 (Windows) fred
FCC.gov SourcesFCC.gov 301957
