  4. EXTERNAL PHOTO FRONT SIDE

YT12120 RC Toy Transmitter External Photos - FCC ID NUY-YT-12120

FCC ID NUY-YT-12120

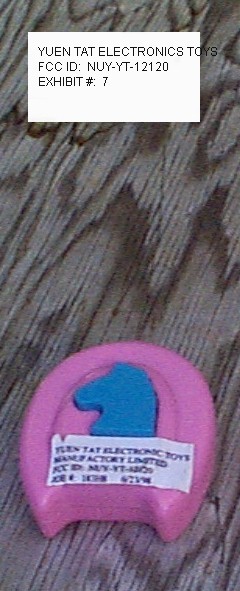

EXTERNAL PHOTO FRONT SIDE

RC Toy Transmitter

by Yuen Tat Electronic Toys Manufactory Limited

EXTERNAL PHOTO FRONT SIDE

Document Details

FCC IDNUY-YT-12120
Document ID7271
Document TypeExternal Photos
DescriptionEXTERNAL PHOTO FRONT SIDE
ApplicantYuen Tat Electronic Toys Manufactory Limited
Equipment ClassRC Toy Transmitter
Product CodeYT12120
Application IDyhGiDyKvdh8mKH2UjARZ7w==
Application PurposeOriginal Equipment
Application Date1998-10-30
Frequency Range26.99-27.26 MHz
FRN0006928063
Test FirmTimco Engineering, Inc.
Certified ByS. S. SANDERS ENGINEER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1998-09-16
Available1998-10-30
Pages0
File TypeJPEG Image
File Size45580
File SHA-256c7c23585281cb14f1b5fedebae047edfbb79fbdd009bba12bdb50f9d641dda8d
FCC.gov SourcesFCC.gov 7271
