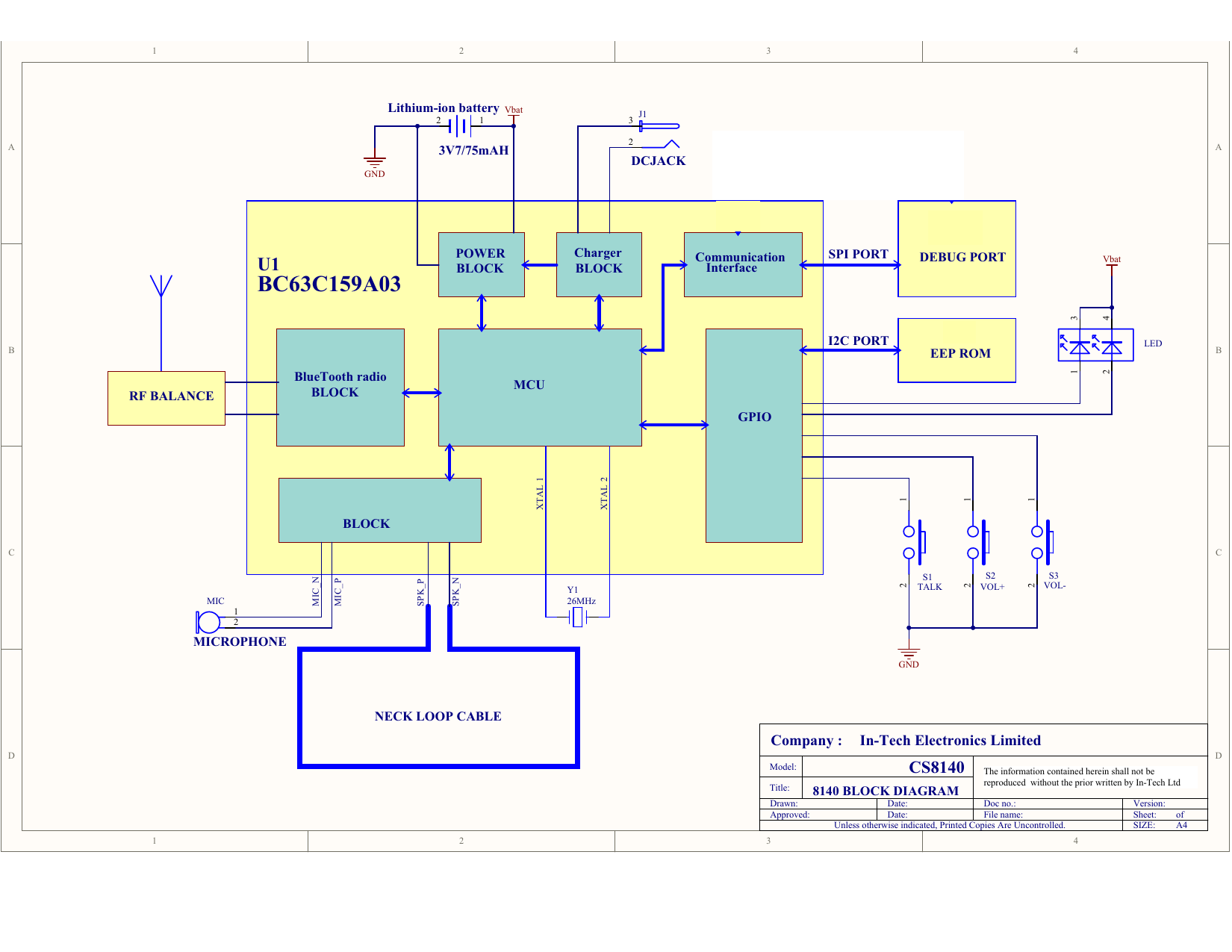

CS8140 Bluetooth Neckloop Pendant Block Diagram - FCC ID NV6-CS8140

FCC ID NV6-CS8140

Block Diagram

Bluetooth Neckloop Pendant

by In Tech Electronics Ltd

Document preview loads when visible.

Document Details

FCC IDNV6-CS8140
Document ID1154274
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleNo Title
ApplicantIn Tech Electronics Ltd
Equipment ClassBluetooth Neckloop Pendant
Product CodeCS8140
Application IDPjGcY3IsK5YWHFF27fTtgw==
Application PurposeOriginal Equipment
Application Date2009-08-17
Frequency Range2402-2480 MHz
FRN0013630934
Test FirmIntertek Testing Services Shenzhen Ltd.
Certified ByShawn Xing Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2009-08-17
Available2009-08-17
Created2009-08-13
Modified2009-08-13
Pages1
File TypeAdobe Acrobat PDF
File Size39827
File SHA-256ffcc386bf2fa9d75a5ea920a5cdc2a64acdb8a852cf4a4b732dc6ade148bdd65
PDF Metadata AuthorWindows 9x/NT/2000/XP User
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows)
FCC.gov SourcesFCC.gov 1154274
