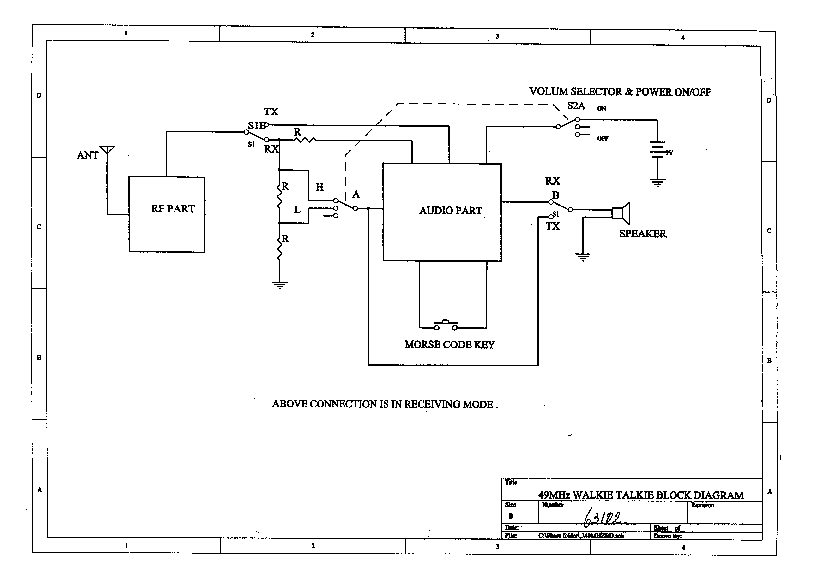

63102 Walkie Talkie Block Diagram - FCC ID NVB63102

FCC ID NVB63102

Block Diagram

Walkie Talkie

by Super Technology Limited

Document preview loads when visible.

Document Details

FCC IDNVB63102
Document ID637449
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleScan2497, T 15, 2006
ApplicantSuper Technology Limited
Equipment ClassWalkie Talkie
Product Code63102
Application ID/ud4Okv/f7uO+ngXzCx76w==
Application PurposeOriginal Equipment
Application Date2006-03-17
Frequency Range49.86 MHz
FRN0006946206
Test FirmHong Kong Standards and Testing Centre
Certified ByPatrick Wong Sr. Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-03-17
Available2006-03-17
Pages1
File TypeAdobe Acrobat PDF
File Size22012
File SHA-2561fe665983d4de3f637cf96a3a2c7fdfcfdfcc726079b40eed65729a14b3fc366
PDF Metadata AuthorHKSTCPreferred User
PDF Metadata CreatorPaperPort http://www.scansoft.com
PDF Metadata Producersspdflib 1.0 http://www.scansoft.com
FCC.gov SourcesFCC.gov 637449
