FCC ID NVRDSP85-L7U7C
Digital Repeater
by Westell, Inc.
Grantee Code: NVR Product Code: DSP85L7U7C
Latest application date: 2017-03-21
Device Images
FCC ID Device Details
| FCC ID | NVRDSP85-L7U7C |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | NVR |
| Product Code | DSP85L7U7C |
| Applicant Business | Westell, Inc. 🇺🇸 |
| Related Domains |  westell.com |
| Equipment Class | Digital Repeater |
| Test Firm | Compliance Worldwide, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 698-716 MHz | Original Equipment | 2017-03-21 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-03-21 | PDF 2.5 MB |
| Internal Photo | Internal Photos | 2017-09-17 | PDF 2.2 MB |
| External Photo | External Photos | 2017-03-21 | PDF 562.9 KB |
| FCC Warning Label | ID Label/Location Info | 2017-03-21 | PDF 70.8 KB |
| Label Sample | ID Label/Location Info | 2017-03-21 | PDF 79.8 KB |

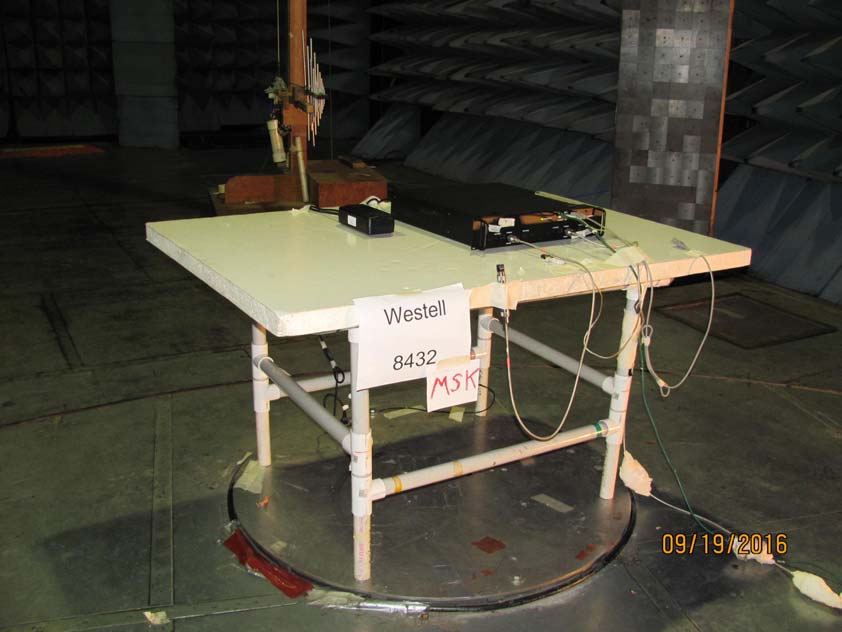

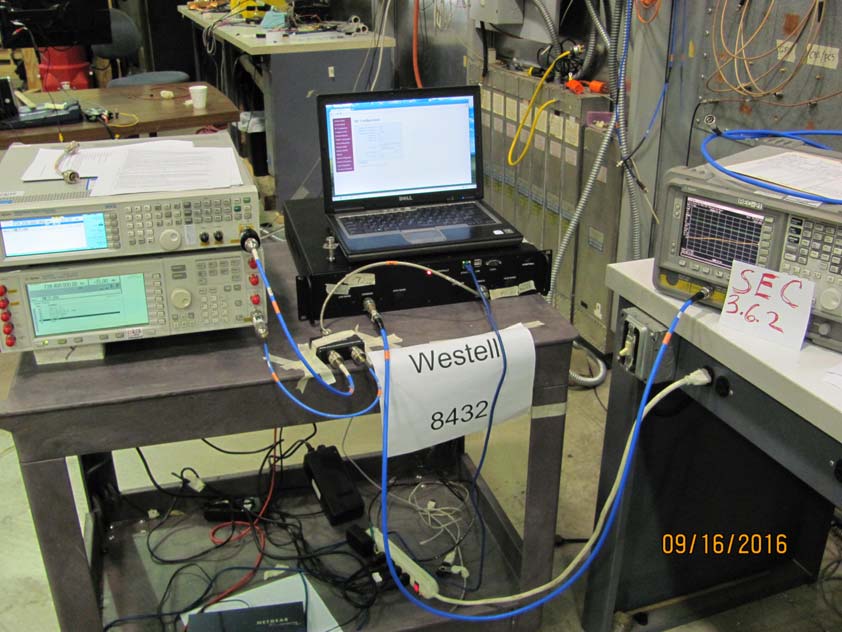

| Test Setup Photo | Test Setup Photos | 2017-03-21 | PDF 549.1 KB |
| Test Setup Photo U7C | Test Setup Photos | 2017-03-21 | PDF 367.7 KB |
| Test Report | Test Report | 2017-03-21 | PDF 2 MB |
| Test Report U7C | Test Report | 2017-03-21 | PDF 2.7 MB |
| Confidentiality Request Letter | Cover Letter(s) | 2017-03-21 | PDF 56.9 KB |
| Letter of Agency | Cover Letter(s) | 2017-03-21 | PDF 53.2 KB |
| RF Exposure | RF Exposure Info | 2017-03-21 | PDF 197.6 KB |
| RF Exposure U7C | RF Exposure Info | 2017-03-21 | PDF 103.2 KB |
| Block Diagram Metadata only | Block Diagram | PDF 32.3 KB | |
| Schematics Metadata only | Schematics | PDF 617.2 KB | |
| Operational Description Metadata only | Operational Description | PDF 227.1 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 1.6 MB | |
| Tune Up Procedure Metadata only | Parts List/Tune Up Info | PDF 52.4 KB |
Application Information
| Application ID | /fS+mN1ItE4yG/lfOgICHA== |
|---|---|
| Final Action Date | 2017-03-21 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0010374171 |
| Model | DSP85-L7U7C |
| Frequency Range | 698-716 MHz |
| Equipment Class | B2I - Part 20 Industrial Booster (CMRS) |
| Device Description | Digital Repeater |
| Responsible Party | Joseph K Gage, Compliance Engineer, jgage@westell.com , 630-375-4724 |
| Test Firm | Mark McSweeney, Compliance Worldwide, Inc., mark@complianceworldwide.com  , 603-887-3903 |
| TCB Email | TEI@TIMCOENGR.COM  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 09/17/2017 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Industrial Booster. Power listed is maximum conducted. The intended use is for industrial/commercial use and will not be sold to the general public. Professional installation is required. The antenna(s) used for this transmitter are to be fixed-mounted on indoor or outdoor structures. RF exposure compliance will need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
