XMIT01 FM Transmitter Teardown Internal Photos - FCC ID NW8XMIT01
FCC ID NW8XMIT01
9
FM Transmitter
Document preview loads when visible.
Document Details
| FCC ID | NW8XMIT01 |
|---|---|
| Document ID | 48468 |

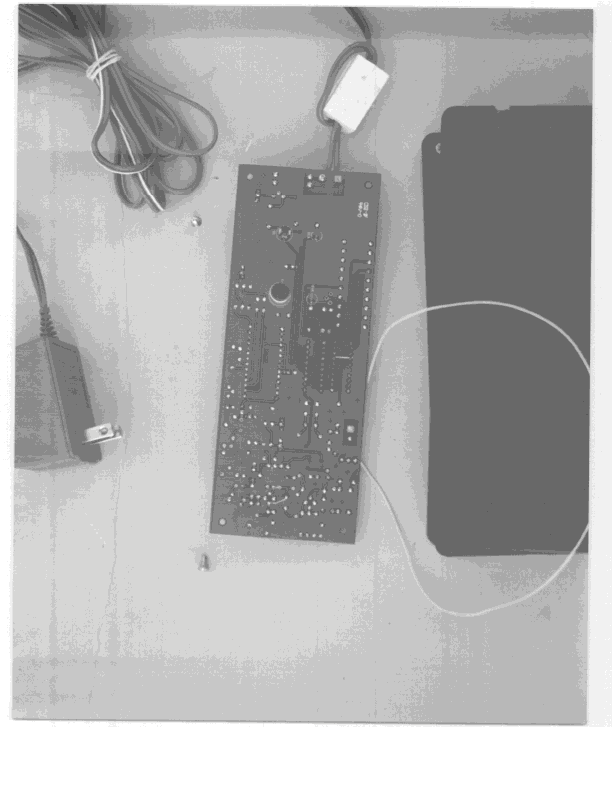

| Document Type | Internal Photos |
| Description | 9 |
| Applicant | Maricanti, Paul J. |
| Equipment Class | FM Transmitter |
| Product Code | XMIT01 |
| Application ID | LGFSyA15p8Oy6a/cv2mEEw== |
| Application Purpose | Original Equipment |
| Application Date | 1999-09-22 |
| Frequency Range | 88-108 MHz |
| FRN | 9999999999 |
| Test Firm | Atlas Compliance & Engineering, Inc. |
| Certified By | Mario E. Barona, Sr. EMC Engineer |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 1999-07-16 |
| Available | 1999-09-22 |
| Created | 2001-06-12 |
| Modified | 2001-06-12 |
| Pages | 4 |
| File Type | Adobe Acrobat PDF |
| File Size | 181079 |
| File SHA-256 | 3ffc0fbd604a50a6730afde9340d055a958765aa5db1f54cfc09cbfb591c0d41 |
| PDF Metadata Producer | Acrobat Distiller 4.0 for Windows |
| FCC.gov Sources | FCC.gov 48468 |
