FCC ID O2F-X1310TC915
radio module for data transmission
by ACD Elektronik GmbH
Grantee Code: O2F Product Code: X1310TC915
Latest application date: 2017-02-28
Device Images
FCC ID Device Details
| FCC ID | O2F-X1310TC915 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | O2F |
| Product Code | X1310TC915 |
| Applicant Business | ACD Elektronik GmbH 🇩🇪 |
| Related Domains |  acd-elektronik.de |
| Equipment Class | radio module for data transmission |
| Test Firm | Element Material Technology Straubing GmbH |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 903.5-926.76 MHz | Original Equipment | 2017-02-28 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Integration Manual | Users Manual | 2017-02-28 | PDF 512.9 KB |

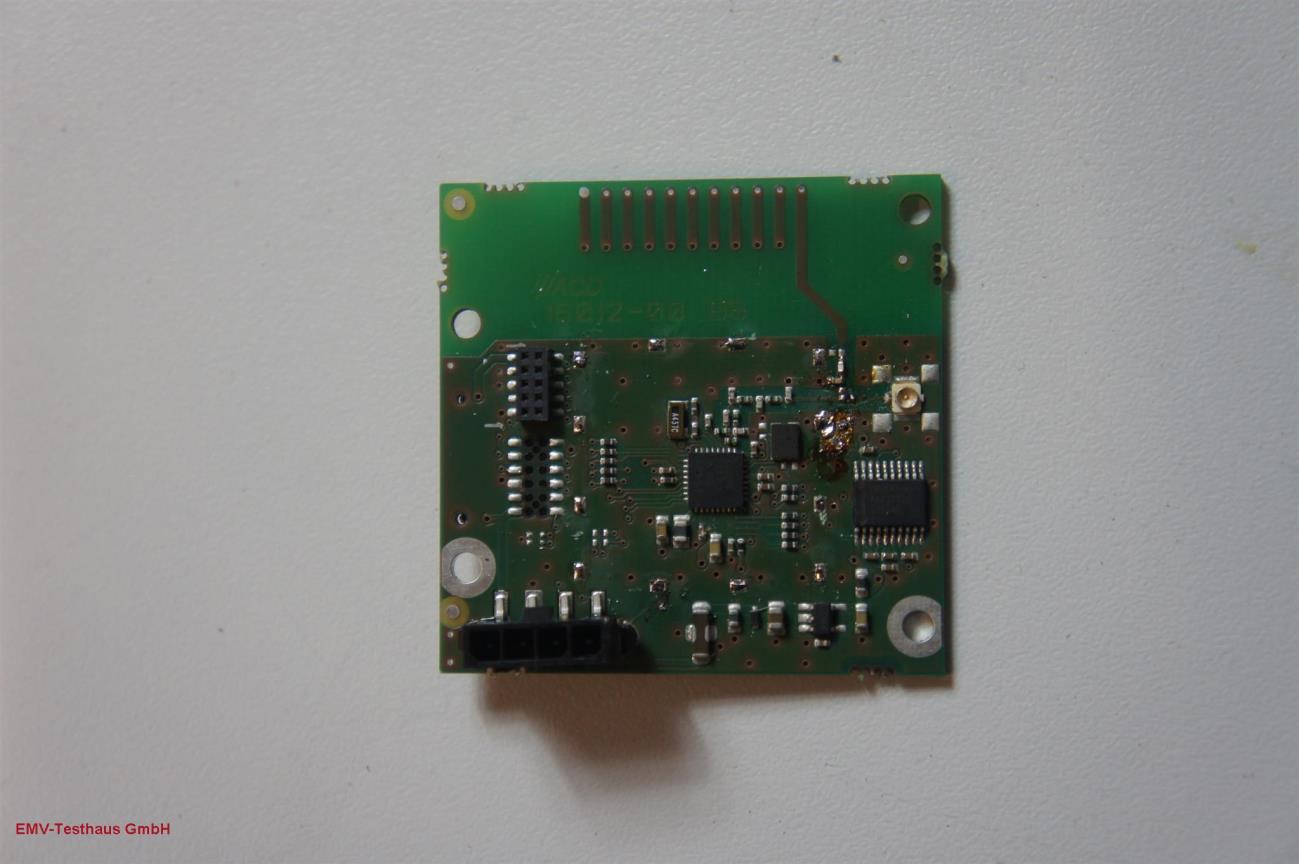

| int photos | Internal Photos | 2017-02-28 | PDF 236.3 KB |

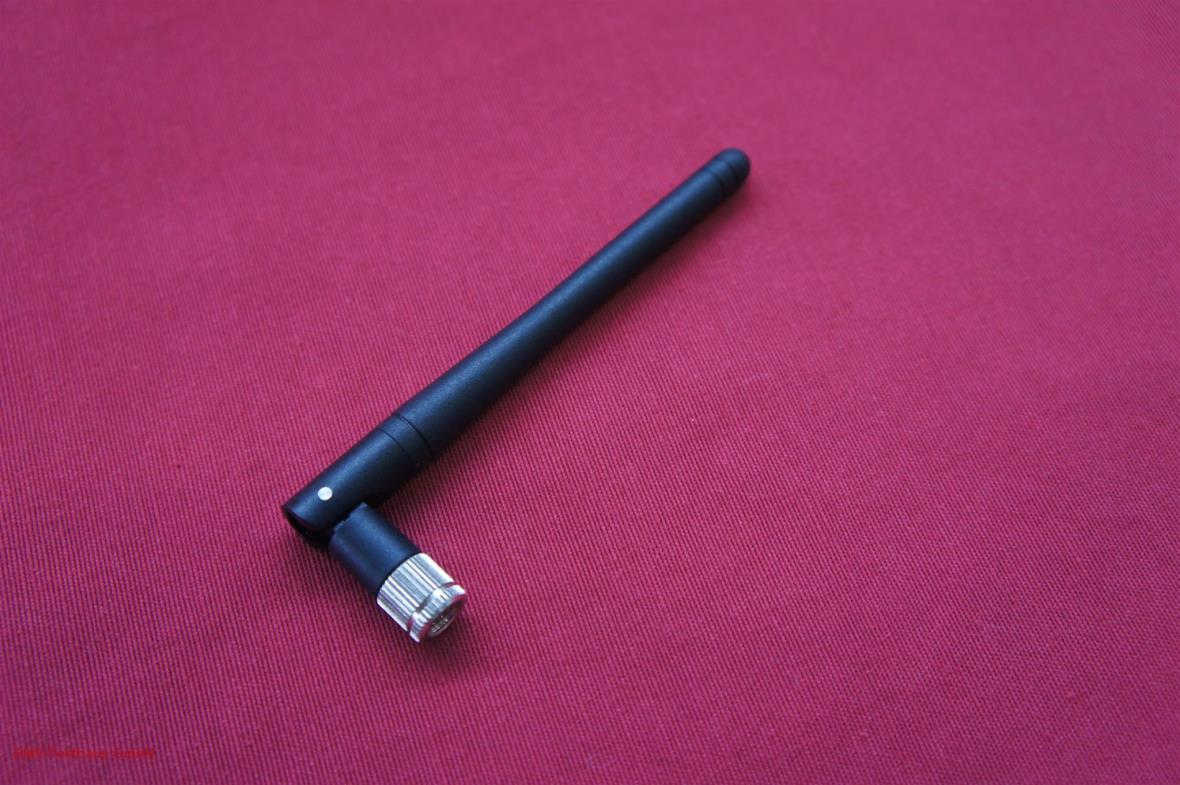

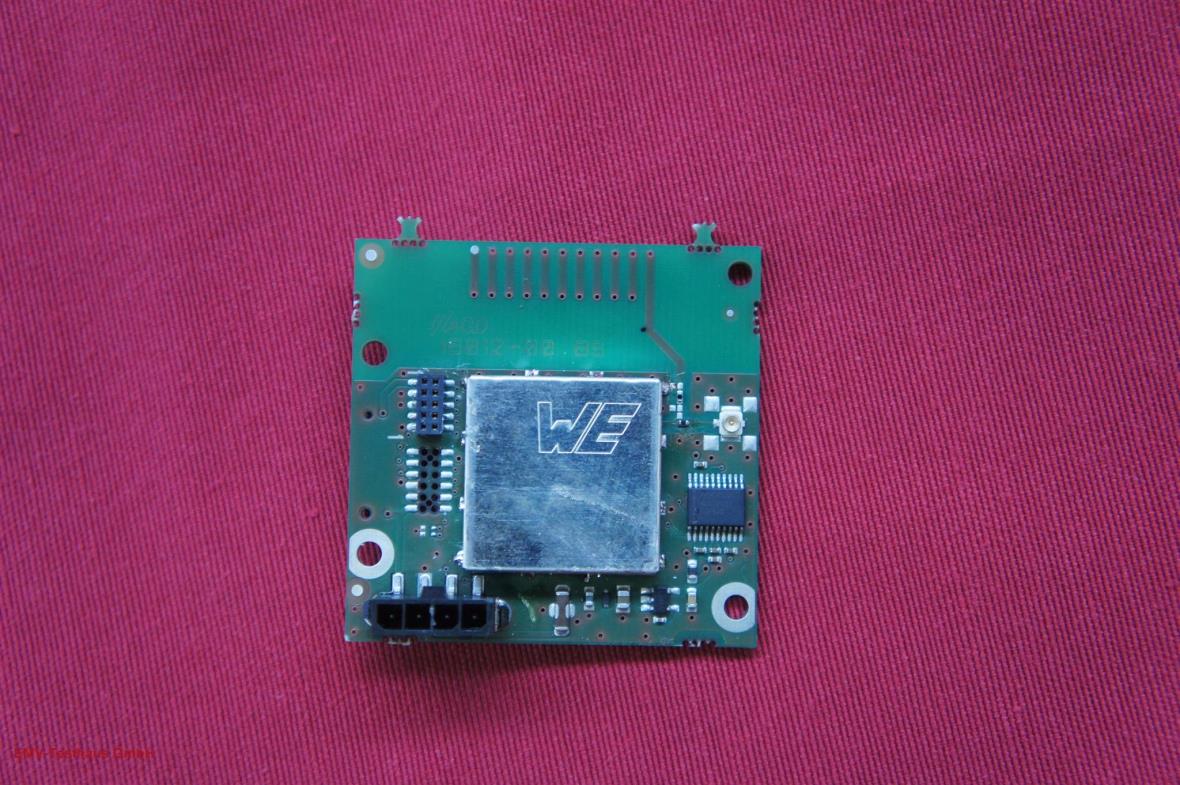

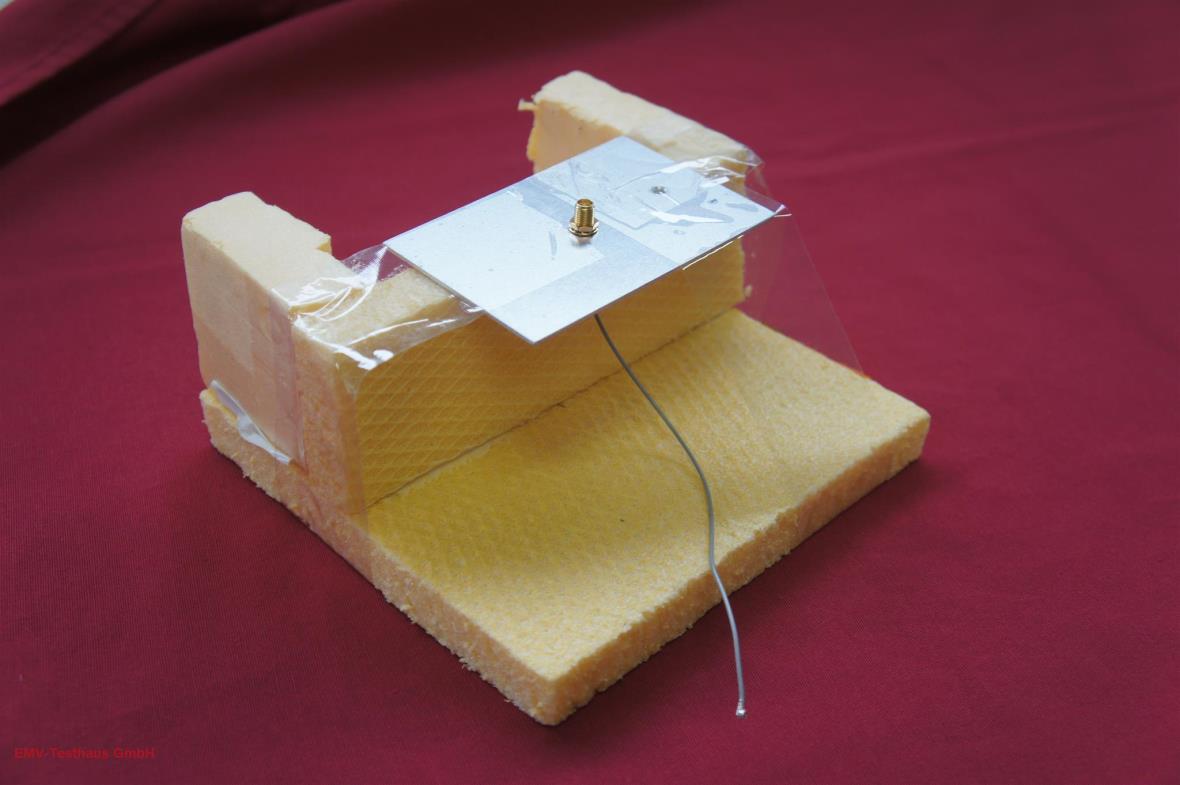

| ext photos | External Photos | 2017-02-28 | PDF 857.5 KB |
| Label Location | ID Label/Location Info | 2017-02-28 | PDF 110.7 KB |
| Operating instructions | Operational Description | 2017-02-28 | PDF 539.2 KB |

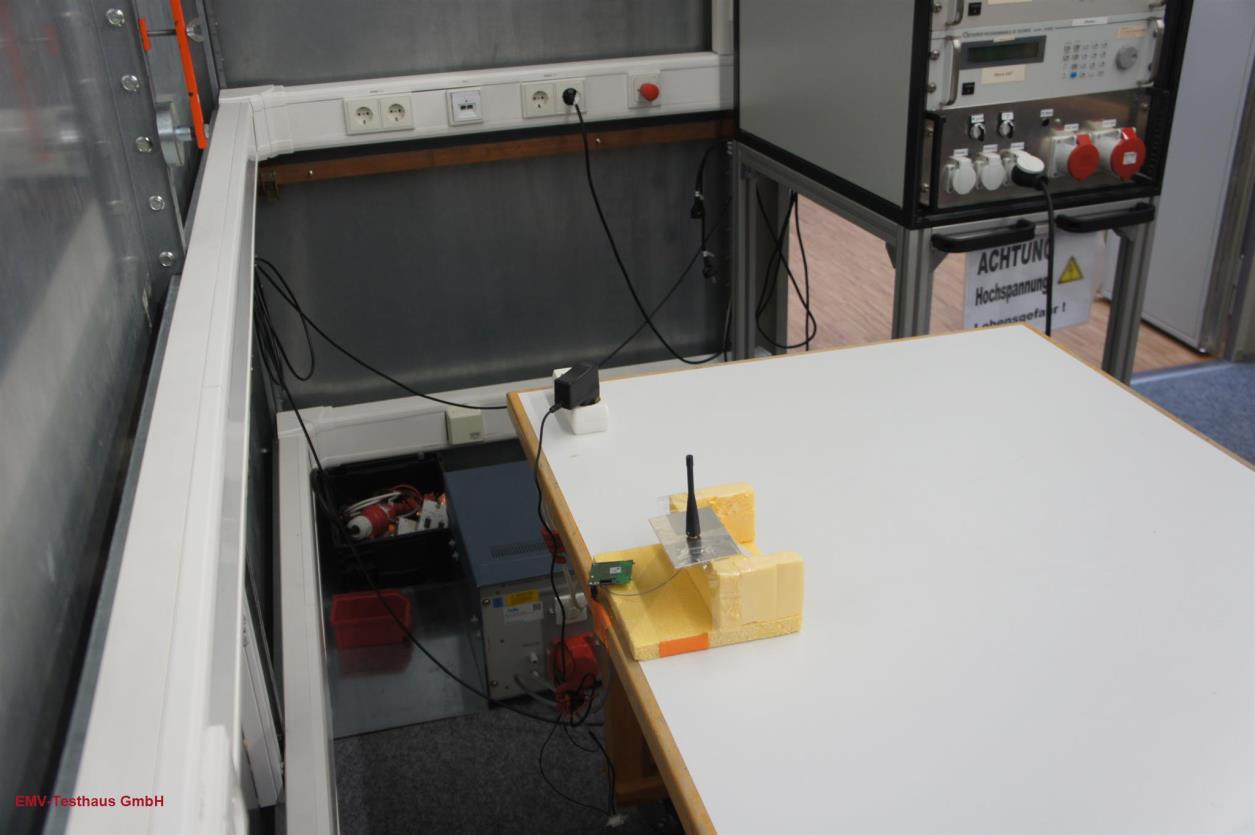

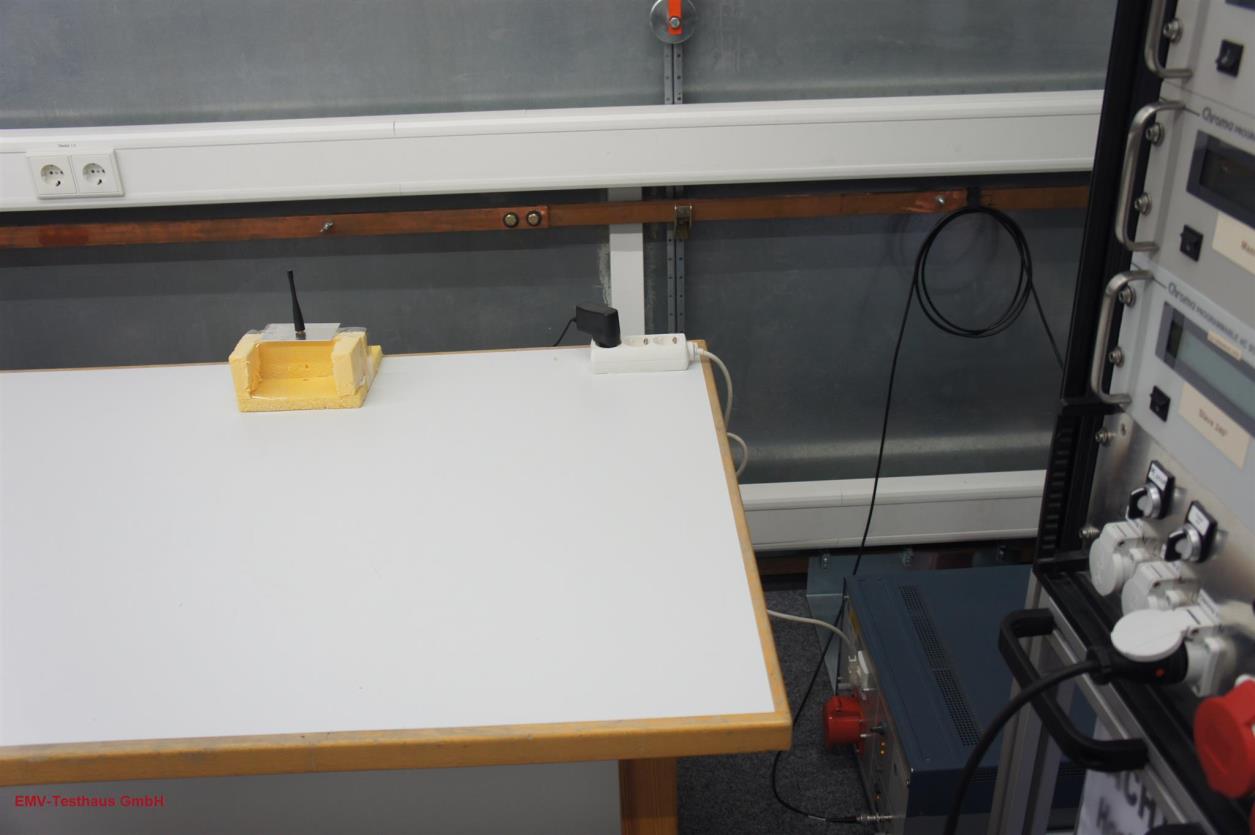

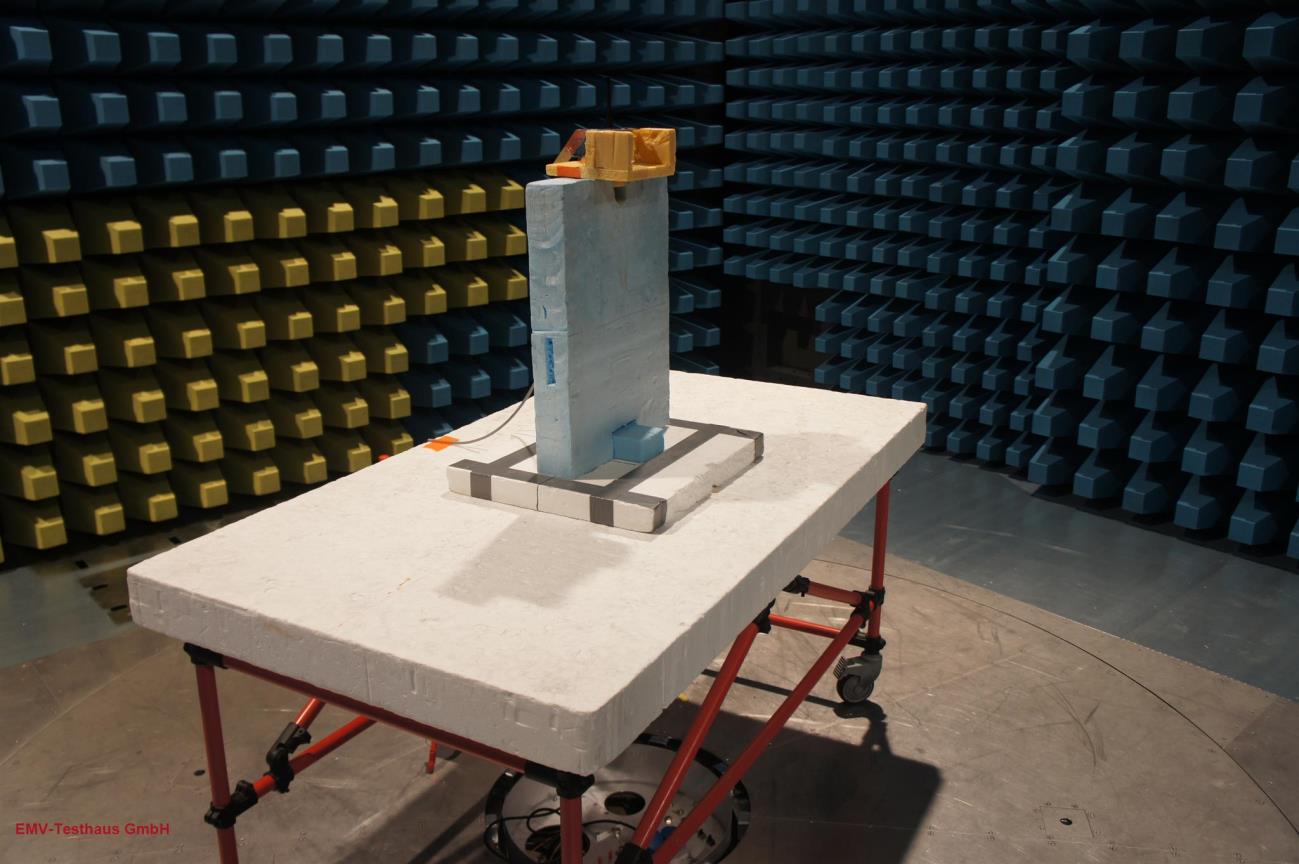

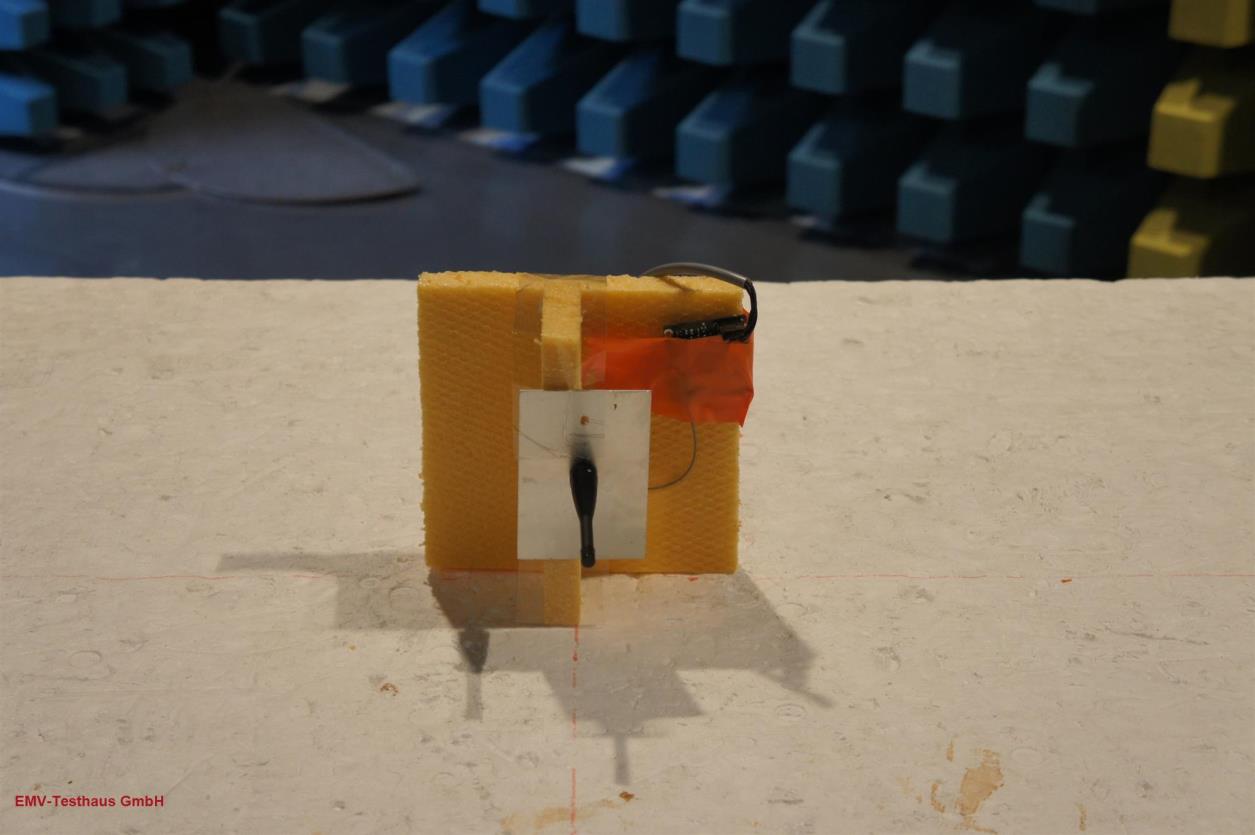

| test setup photos | Test Setup Photos | 2017-02-28 | PDF 1.6 MB |
| Antenna Data CTA915 | Test Report | 2017-02-28 | PDF 29.1 KB |
| Antenna Data CTA920 | Test Report | 2017-02-28 | PDF 460.4 KB |
| Test Report | Test Report | 2017-02-28 | PDF 2.4 MB |
| LTC Request | Cover Letter(s) | 2017-02-28 | PDF 280.6 KB |
| PoA | Cover Letter(s) | 2017-02-28 | PDF 258.4 KB |
| Request Modular approval | Cover Letter(s) | 2017-02-28 | PDF 693.4 KB |
| manufacturer declaration | Cover Letter(s) | 2017-02-28 | PDF 5.2 MB |
| block diagram Metadata only | Block Diagram | PDF 154.2 KB | |
| schematics Metadata only | Schematics | PDF 55.9 KB |
Application Information
| Application ID | BpM5cZrWR/1ylJDUUxLDeA== |
|---|---|
| Final Action Date | 2017-02-28 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023804685 |
| Model | X1310TC915 |
| Frequency Range | 903.5-926.76 MHz |
| Equipment Class | DXT - Part 15 Low Power Transceiver, Rx Verified |
| Device Description | radio module for data transmission |
| Responsible Party | Bruno Staudenrausch, Dipl. Ing. (FH), Bruno.Staudenrausch@acd-elektronik.de , 00497392708 |
| Test Firm | Christian Kiermeier, Element Material Technology Straubing GmbH, christian.kiermeier@element.com  , 49-9421-56868-0 |
| TCB Email | Brandhorst.dirk@phoenix-testlab.de  |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | This modular approval is limited to integration by the Grantee himself in his owen host devices. This device and its antennas must not be colocated or operating in comjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. The Grantee has to insure that the final product complies with the requirements. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| BpM5cZrWR/1ylJDUUxLDeA== | 2017-02-28 | Original Equipment |
Equipment Authorization
| Frequency | Rules |
|---|---|
| 903.5-926.76 MHz | 15C |
Grants
TCB Grant - Application BpM5cZrWR/1ylJDUUxLDeA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
PHOENIX TESTLAB GmbH Koenigswinkel 10 32825 Blomberg, Germany |
Date of Grant: 02/28/2017 Application Dated: 02/28/2017 |
| ACD Elektronik GmbH |
| Engelberg 2 |
| Industriegebiet |
| Achstetten D-88480, Germany |
| Attention: Bruno Staudenrausch , Dipl. Ing. (FH) |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | O2F-X1310TC915 |
| Name of Grantee: | ACD Elektronik GmbH |
| Equipment Class: | Part 15 Low Power Transceiver, Rx Verified |
| Notes: | radio module for data transmission |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 903.5 - 926.76 |
| This modular approval is limited to integration by the Grantee himself in his owen host devices. This device and its antennas must not be colocated or operating in comjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. The Grantee has to insure that the final product complies with the requirements. |
EAS Grant - Application BpM5cZrWR/1ylJDUUxLDeA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
ACD Elektronik GmbH Engelberg 2 Industriegebiet Achstetten D-88480, Germany |
Date of Grant: 02/28/2017 Application Dated: 02/28/2017 |
| Attention: Bruno Staudenrausch , Dipl. Ing. (FH) |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | O2F-X1310TC915 |
| Name of Grantee: | ACD Elektronik GmbH |
| Equipment Class: | Part 15 Low Power Transceiver, Rx Verified |
| Notes: | radio module for data transmission |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 903.5 - 926.76 |
| This modular approval is limited to integration by the Grantee himself in his owen host devices. This device and its antennas must not be colocated or operating in comjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. The Grantee has to insure that the final product complies with the requirements. |
| Mail To: |
