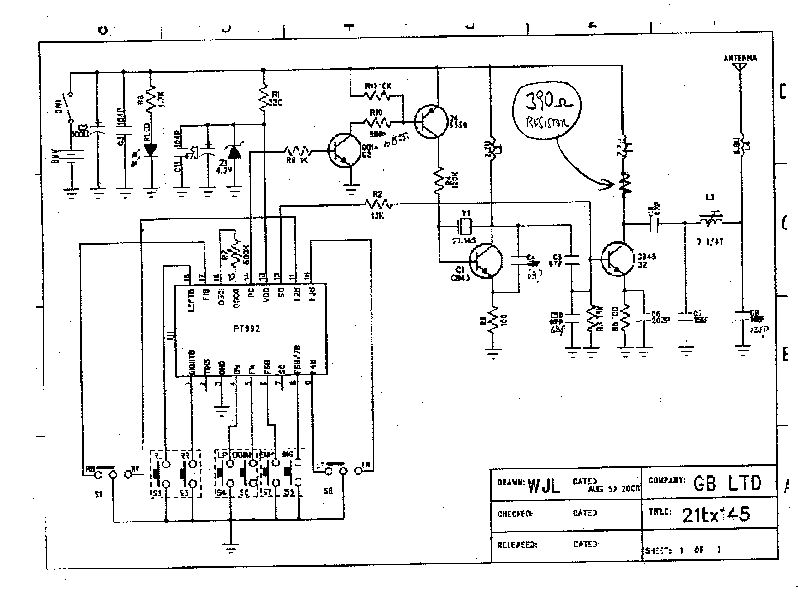

2021 27 MHz Remote Control TX Schematics - FCC ID O2X2021

FCC ID O2X2021

schematics

27 MHz Remote Control TX

by Golden Bright Manufacturer Ltd

Document preview loads when visible.

Document Details

FCC IDO2X2021
Document ID225844
Document TypeSchematics
Descriptionschematics
ApplicantGolden Bright Manufacturer Ltd
Equipment Class27 MHz Remote Control TX
Product Code2021
Application IDRn7KSUzMPzM4/S5A6iLz+A==
Application PurposeOriginal Equipment
Application Date2002-02-11
Frequency Range26.96-27.28 MHz
FRN0005866355
Test FirmTimco Engineering, Inc.
Certified ByEric Fung Sales Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-02-12
Available2002-02-11
Created2002-02-06
Modified2002-02-06
Pages1
File TypeAdobe Acrobat PDF
File Size86098
File SHA-256da1dcc920e1bdeada68b7b0160ccfc16d709385d78dd91952cfffd9c5e98009a
PDF Metadata ProducerAcrobat 4.05 Scan Plug-in for Windows Acrobat 4.05 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 225844
