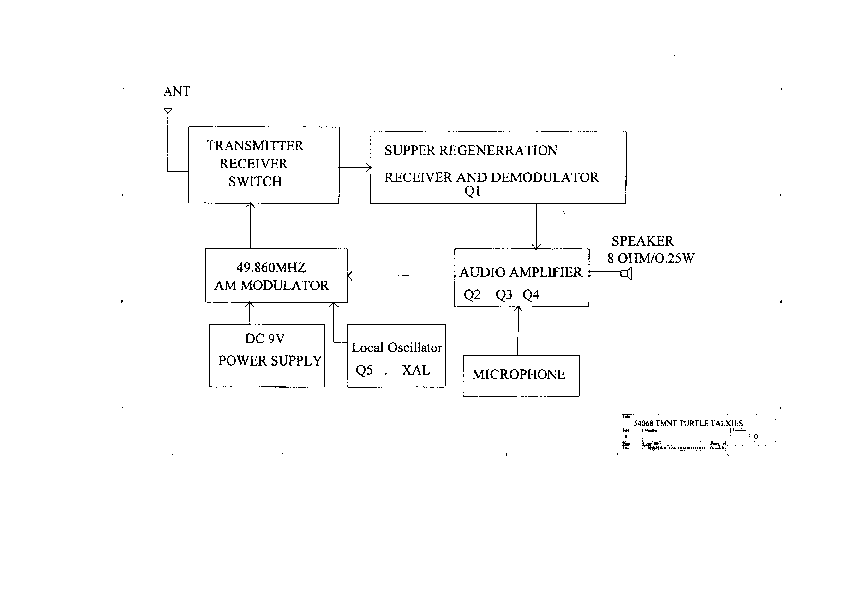

54068 Walkie Talkie Block Diagram - FCC ID O3U-54068

FCC ID O3U-54068

Block Diagram

Walkie Talkie

by Playmates Asia Services Limited

Document preview loads when visible.

Document Details

FCC IDO3U-54068
Document ID419221
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantPlaymates Asia Services Limited
Equipment ClassWalkie Talkie
Product Code54068
Application IDt1qG99DU8xYxf6NbwKUZMw==
Application PurposeOriginal Equipment
Application Date2004-05-04
Frequency Range49.86 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-05-04
Available2004-05-04
Created2004-04-13
Modified2004-04-13
Pages1
File TypeAdobe Acrobat PDF
File Size16056
File SHA-256e5cf0fdb75d56b120df2117d9a3ecaa661d5bbef97f86a4f70194cce8d658d25
PDF Metadata AuthorITS ELECTRIC TOY
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 419221
