98163 Inductive Toy Doll (RFID Tag Reader)... - FCC ID O3U-98163
FCC ID O3U-98163

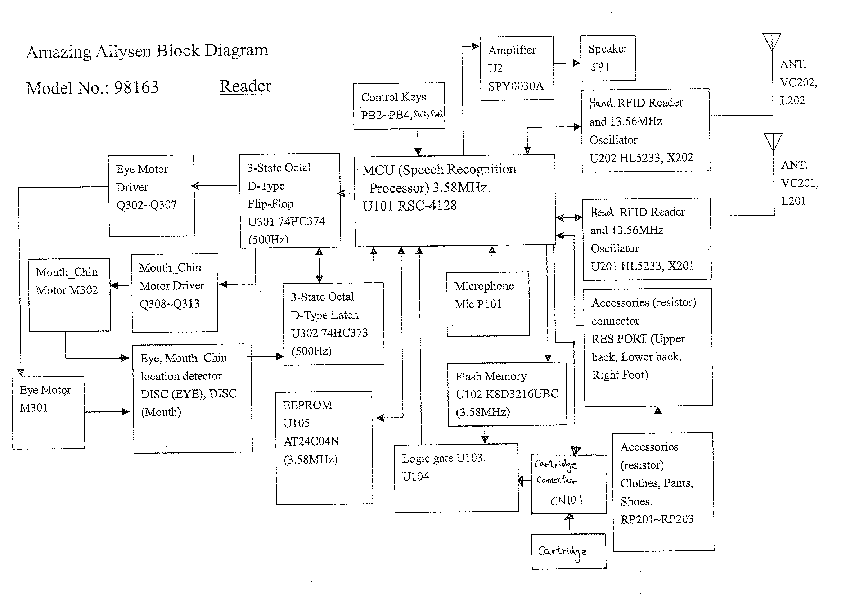

Block Diagram
Inductive Toy Doll (RFID Tag Reader)
Document preview loads when visible.
Document Details
| FCC ID | O3U-98163 |
|---|---|
| Document ID | 711304 |
| Document Type | Block Diagram |
| Description | Block Diagram |
| Applicant | Playmates Asia Services Limited |
| Equipment Class | Inductive Toy Doll (RFID Tag Reader) |
| Product Code | 98163 |
| Application ID | GoVCQolEnY9ZRwmH50NVcw== |
| Application Purpose | Original Equipment |
| Application Date | 2006-10-01 |
| Frequency Range | 13.56 MHz |
| FRN | 0003786449 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Anthony Chan Assistant Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2006-10-01 |
| Available | 2006-10-01 |
| Created | 2006-08-07 |
| Modified | 2006-08-17 |
| Pages | 3 |
| File Type | Adobe Acrobat PDF |
| File Size | 292795 |
| File SHA-256 | b4c95b57177b44e259a8d8bb99aacfd0d253d032fc043da55cf5a805d5b5fd72 |
| FCC.gov Sources | FCC.gov 711304 |
