U922 UHF Pocket Alarm Transceiver External Photos - FCC ID O4MU922
FCC ID O4MU922

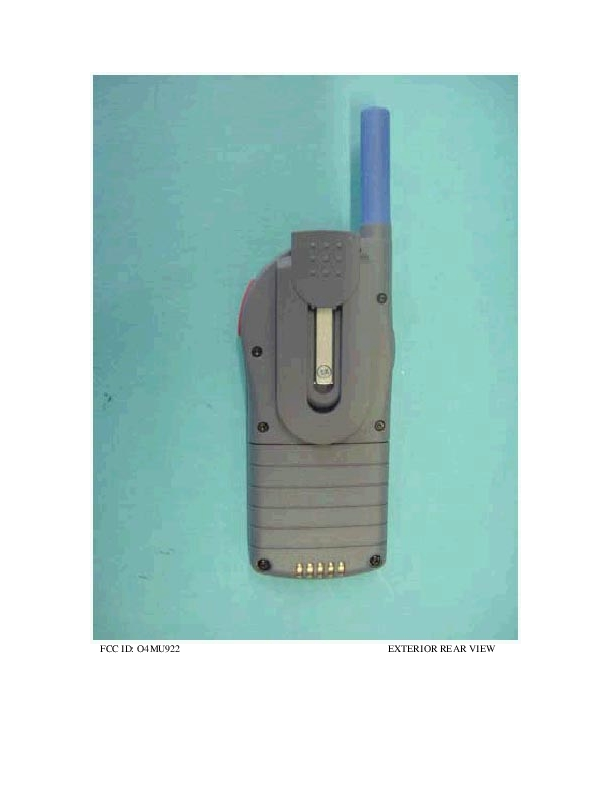

Exterior Rear View
UHF Pocket Alarm Transceiver
Document preview loads when visible.
Document Details
| FCC ID | O4MU922 |
|---|---|
| Document ID | 243410 |
| Document Type | External Photos |
| Description | Exterior Rear View |
| Applicant | Ascom Wireless Solutions, Inc. |
| Equipment Class | UHF Pocket Alarm Transceiver |
| Product Code | U922 |
| Application ID | QZ7XygvSPiGWvy5pRV3KiQ== |
| Application Purpose | Original Equipment |
| Application Date | 2002-06-26 |
| Frequency Range | 420-475 MHz |
| FRN | 0006249569 |
| Test Firm | Cetecom ICT Services GmbH |
| Certified By | Ruth Varley Agent |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2002-05-16 |
| Available | 2002-06-26 |
| Created | 2002-05-16 |
| Modified | 2002-05-16 |
| Pages | 1 |
| File Type | Microsoft Word |
| File Size | 94619 |
| File SHA-256 | 789d2cd596be01d499f3574da07ca6782e8a7c40f684b6d109650111f65f09be |
| PDF Metadata Producer | Acrobat Distiller 4.0 for Windows |
| FCC.gov Sources | FCC.gov 243410 |
