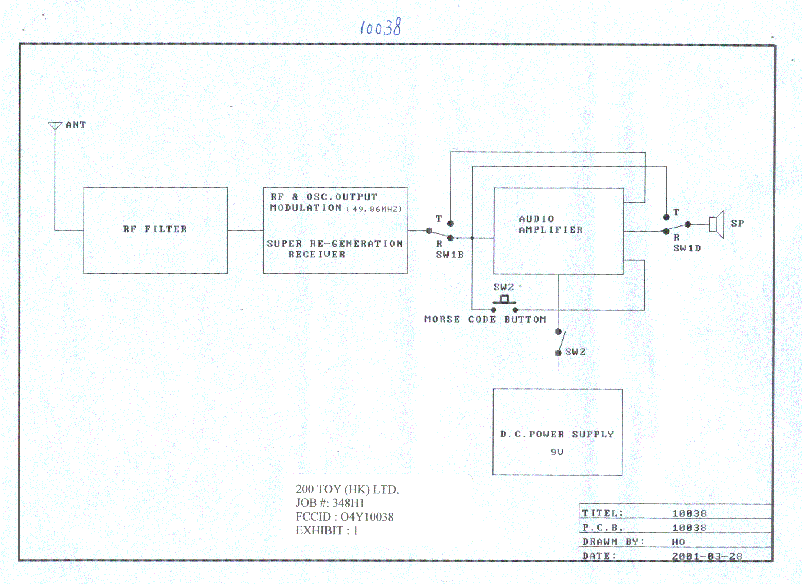

10038 49 MHz Walkie Talkie Block Diagram - FCC ID O4Y10038

FCC ID O4Y10038

block diagram

49 MHz Walkie Talkie

by 200 Toy (HK) Ltd.

Document preview loads when visible.

Document Details

FCC IDO4Y10038
Document ID154527
Document TypeBlock Diagram
Descriptionblock diagram
Applicant200 Toy (HK) Ltd.
Equipment Class49 MHz Walkie Talkie
Product Code10038
Application IDppoVi3qebtC+yR3LwxVjtA==
Application PurposeOriginal Equipment
Application Date2001-06-13
Frequency Range49.82-49.9 MHz
FRN0005999669
Test FirmTimco Engineering, Inc.
Certified ByMonty Cheng
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-06-13
Available2001-06-13
Created2001-05-17
Modified2001-05-17
Pages1
File TypeAdobe Acrobat PDF
File Size400898
File SHA-256eaef7b8271e53e14033e532ebfd48355ab5fae9005595bd10da8a992b9d19122
PDF Metadata ProducerAcrobat 4.05 Scan Plug-in for Windows Acrobat 4.05 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 154527
