653722 6.5 inch 4G Smart Phone Label Diagram - FCC ID O55653722
FCC ID O55653722

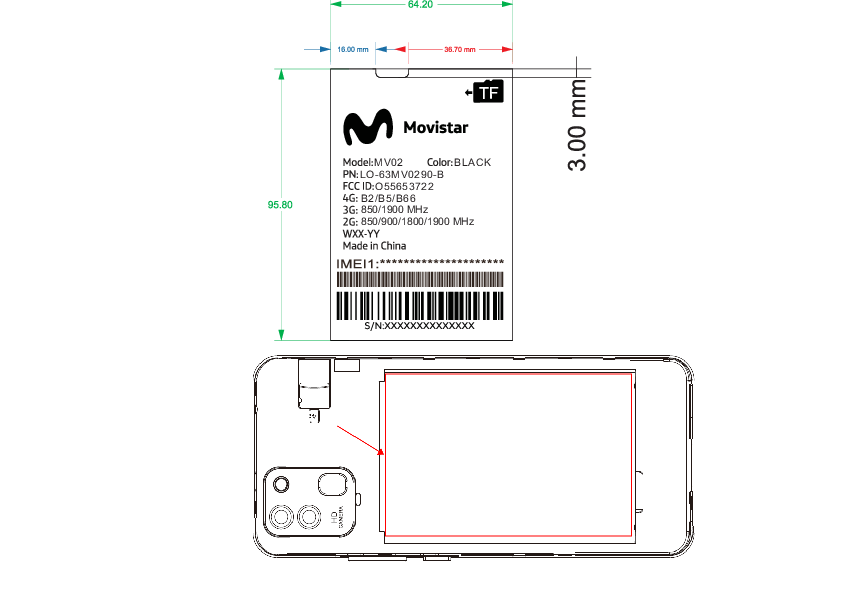

Label and Label Location
6.5 inch 4G Smart Phone
by SWAGTEK
Document preview loads when visible.
Document Details
| FCC ID | O55653722 |
|---|---|
| Document ID | 6229605 |
| Document Type | ID Label/Location Info |
| Description | Label and Label Location |
| Document Title | 图形2 |
| Applicant | SWAGTEK |
| Equipment Class | 6.5 inch 4G Smart Phone |
| Product Code | 653722 |
| Application ID | pCElzvJIxZF5CgaZUnRYPA== |
| Application Purpose | Original Equipment |
| Application Date | 2022-11-17 |
| Frequency Range | 2402-2480 MHz |
| FRN | 0021846670 |
| Test Firm | Shenzhen NTEK Testing Technology Co., Ltd. |
| Certified By | Charles Cheng |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 05/16/2023 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2022-11-17 |
| Available | 2022-11-17 |
| Created | 2022-11-11 |
| Modified | 2022-11-11 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 120184 |
| File SHA-256 | d211afe1a44a367c76ca89a3f00e1fbf6a066da2470ada242f5e3d6d9f2f8704 |
| PDF Metadata Author | Administrator |
| PDF Metadata Producer | Administrator Corel PDF Engine Version 14.0.0.653 |
| FCC.gov Sources | FCC.gov 6229605, FCC.gov 6229588, FCC.gov 6229545 |
