FCC ID O6QPS60XS2
Pulse Radar Sensors for Continuous Level Measurements
by VEGA Grieshaber KG
Grantee Code: O6Q Product Code: PS60XS2
Latest application date: 2016-12-21
Device Images
FCC ID Device Details
| FCC ID | O6QPS60XS2 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | O6Q |
| Product Code | PS60XS2 |
| Applicant Business | VEGA Grieshaber KG 🇩🇪 |
| Related Domains |  de.vega.com  rheintech.com |
| Equipment Class | Pulse Radar Sensors for Continuous Level Measurements |
| Test Firm | Rhein Tech Laboratories, Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 26000 MHz | Original Equipment | 2016-12-21 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

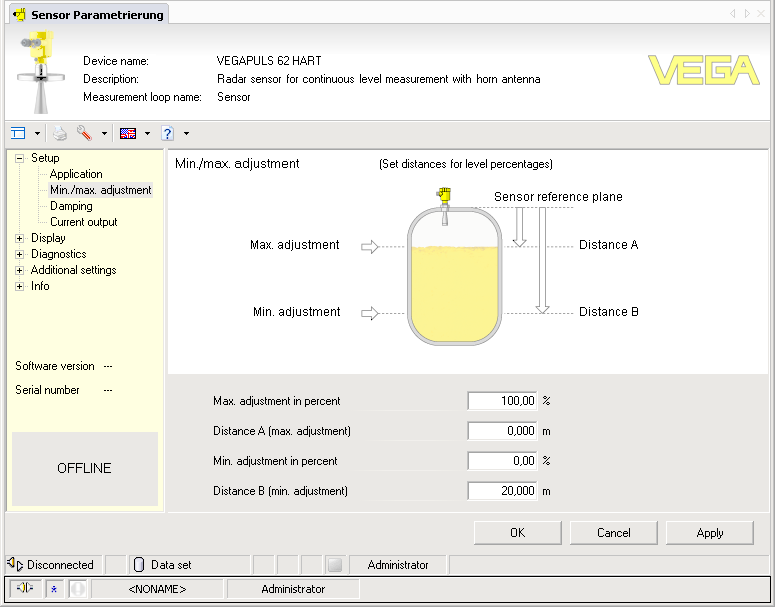

| Users Manual Rev 0.2 Metadata only | Users Manual | 2016-12-21 | PDF 4.1 MB |
| Users Manual Rev 0.3 | Users Manual | 2016-12-21 | PDF 4.1 MB |
| Users Manual Revision 122116 Metadata only | Users Manual | 2016-12-21 | PDF 4.4 MB |
| Internal Photos | Internal Photos | 2017-06-19 | PDF 2.7 MB |
| External Photos | External Photos | 2016-12-21 | PDF 305.2 KB |

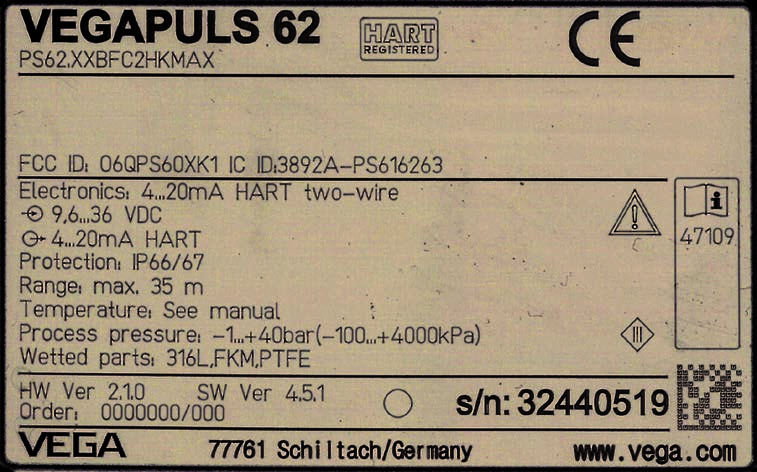

| Label Info | ID Label/Location Info | 2016-12-21 | PDF 595.9 KB |

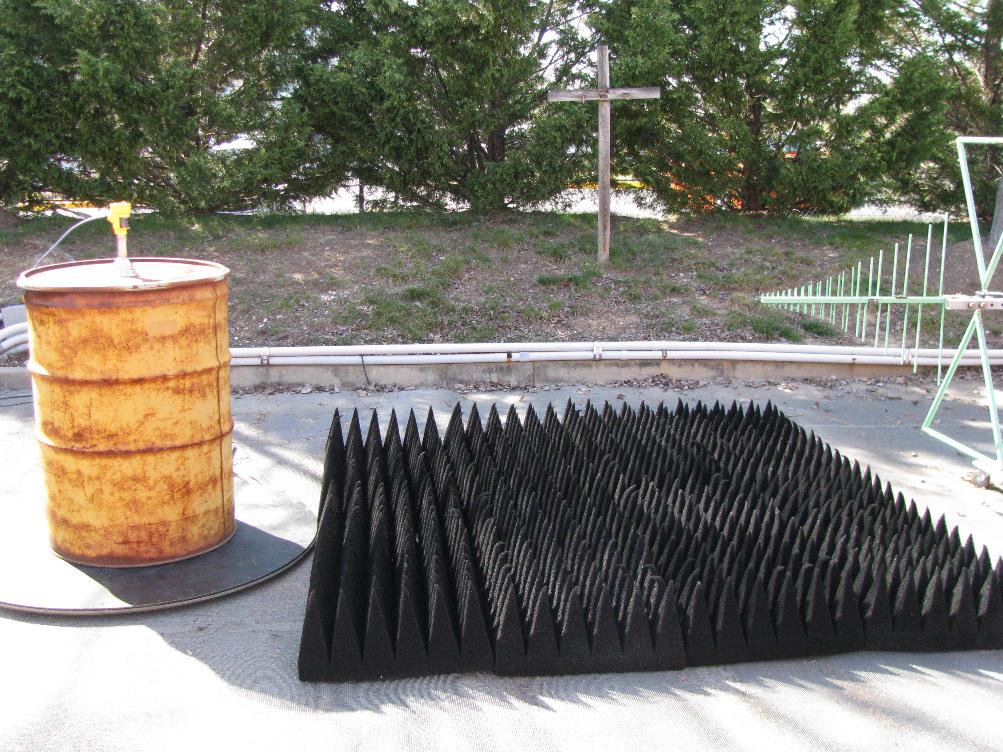

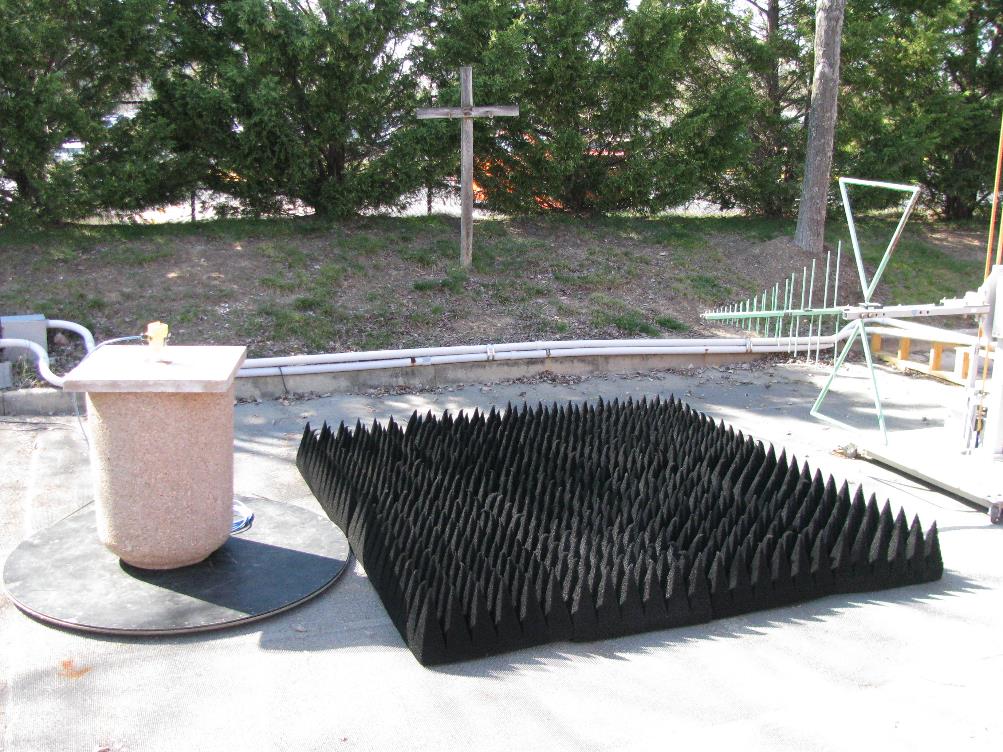

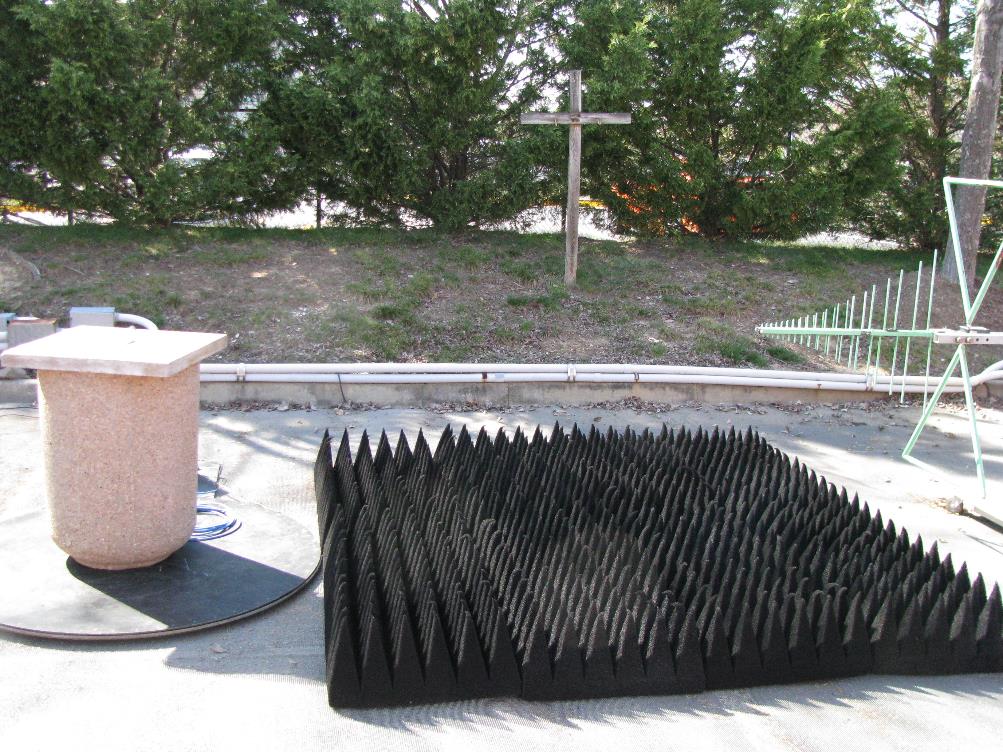

| Test Photos 15.209 Part 1 | Test Setup Photos | 2016-12-21 | PDF 3.8 MB |

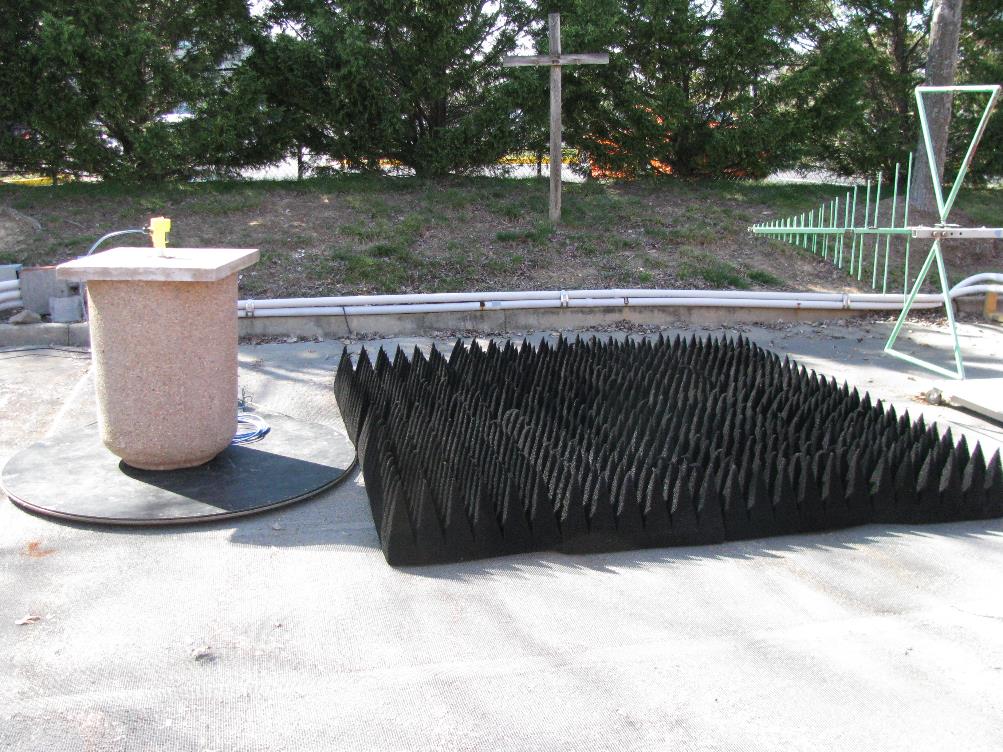

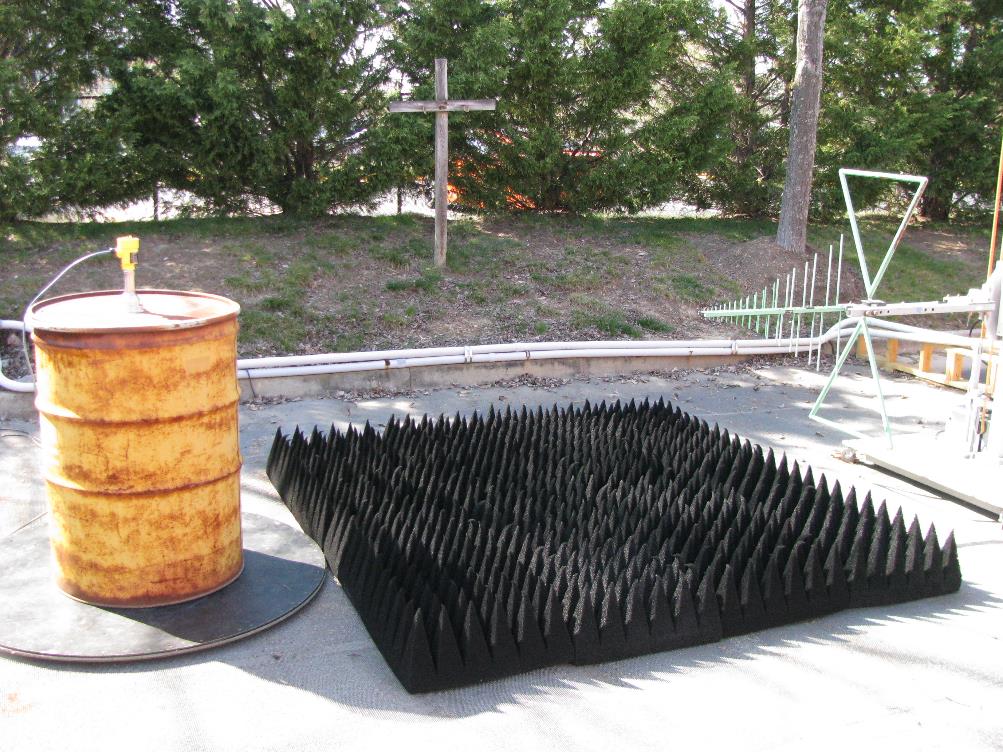

| Test Photos 15.209 Part 2 | Test Setup Photos | 2016-12-21 | PDF 2.1 MB |
| Test Photos 15.256 | Test Setup Photos | 2016-12-21 | PDF 125.9 KB |
| 15.209 Test Report Part 1 | Test Report | 2016-12-21 | PDF 4.6 MB |
| 15.209 Test Report Part 2 | Test Report | 2016-12-21 | PDF 5.3 MB |
| 15.209 Test Report Part 3 | Test Report | 2016-12-21 | PDF 5.2 MB |
| 15.209 Test Report Part 4 | Test Report | 2016-12-21 | PDF 5 MB |
| 15.209 Test Report Part 5 | Test Report | 2016-12-21 | PDF 5.1 MB |
| 15.209 Test Report Part 6 | Test Report | 2016-12-21 | PDF 4.9 MB |
| 15.209 Test Report Part 7 | Test Report | 2016-12-21 | PDF 5.1 MB |
| 15.209 Test Report Part 8 | Test Report | 2016-12-21 | PDF 5.2 MB |
| 15.209 Test Report Part 9 | Test Report | 2016-12-21 | PDF 3.3 MB |
| 15.256 Test Report Rev 0.1 Metadata only | Test Report | 2016-12-21 | PDF 1.7 MB |
| 15.256 Test Report Rev 0.3 | Test Report | 2016-12-21 | PDF 1.7 MB |
| Test Report 15.256 Revision 122116 Metadata only | Test Report | 2016-12-21 | PDF 1.8 MB |
| Agent Letter | Cover Letter(s) | 2016-12-21 | PDF 2 MB |
| Confidentiality Letter | Cover Letter(s) | 2016-12-21 | PDF 1.2 MB |
| RF Exposure Info | RF Exposure Info | 2016-12-21 | PDF 22.4 KB |
| Block Diagram Metadata only | Block Diagram | PDF 264 KB | |
| Schematics Metadata only | Schematics | PDF 424.4 KB | |
| Antenna Info Metadata only | Operational Description | PDF 972.2 KB | |
| Operational Description Rev 0.1 Metadata only | Operational Description | PDF 65.1 KB | |
| Technical Comments and Response Metadata only | Operational Description | PDF 106.8 KB |
Application Information
| Application ID | jK1Wem4kTDQ6L2lqJWWrNA== |
|---|---|
| Final Action Date | 2016-12-21 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0011099314 |
| Model | PS60XS2 |
| Frequency Range | 26000 MHz |
| Equipment Class | LPR - Level Probing Radar |
| Device Description | Pulse Radar Sensors for Continuous Level Measurements |
| Responsible Party | Juergen Motzer, Project Manager, J.motzer@de.vega.com , ++49 7836 50 113 |
| Agent | Kathy Kathy Kathy, Rhein Tech Laboratories, Inc., atcbinfo@rheintech.com , 7032302741 |
| Technical Contact | Desmond Fraser, Rhein Tech Laboratories, atcbinfo@rheintech.com , 7036893346 |
| Non-Technical Contact | Kathy Grzovic, Rhein Tech Laboratories, atcbinfo@rheintech.com , 7032302741 |
| Test Firm | Richard McMurray, Rhein Tech Laboratories, Inc., rmcmurray@rheintech.com , 703-689-0368 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A2: Low Power Transmitters (except Spread Spectrum) and radar detectors operating above 1 GHz |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 06/19/2017 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | This device is approved for downward and swivel configurations when installed in an fully enclosed stationary metal, concrete, or reinforced fiberglass vessels only. For operation outside of closed metal, concrete, and reinforced fiberglass vessels under 15.256, only the 75 and 95 mm Horns may be used and must be installed and maintained to ensure a vertically downward orientation of the transmit antenna's main beam. Additionally under 15.256 the device may only operate at fixed locations and may not operate while being moved, or while inside a moving container. Hand-held applications are prohibited. |
